38090 (1132) - Toro 32" Snow Thrower (SN: 007000001 - 007999999) (1987) LIGHT KIT NO. 54-9820 (OPTIONAL) Parts Diagram

32" Snow Thrower

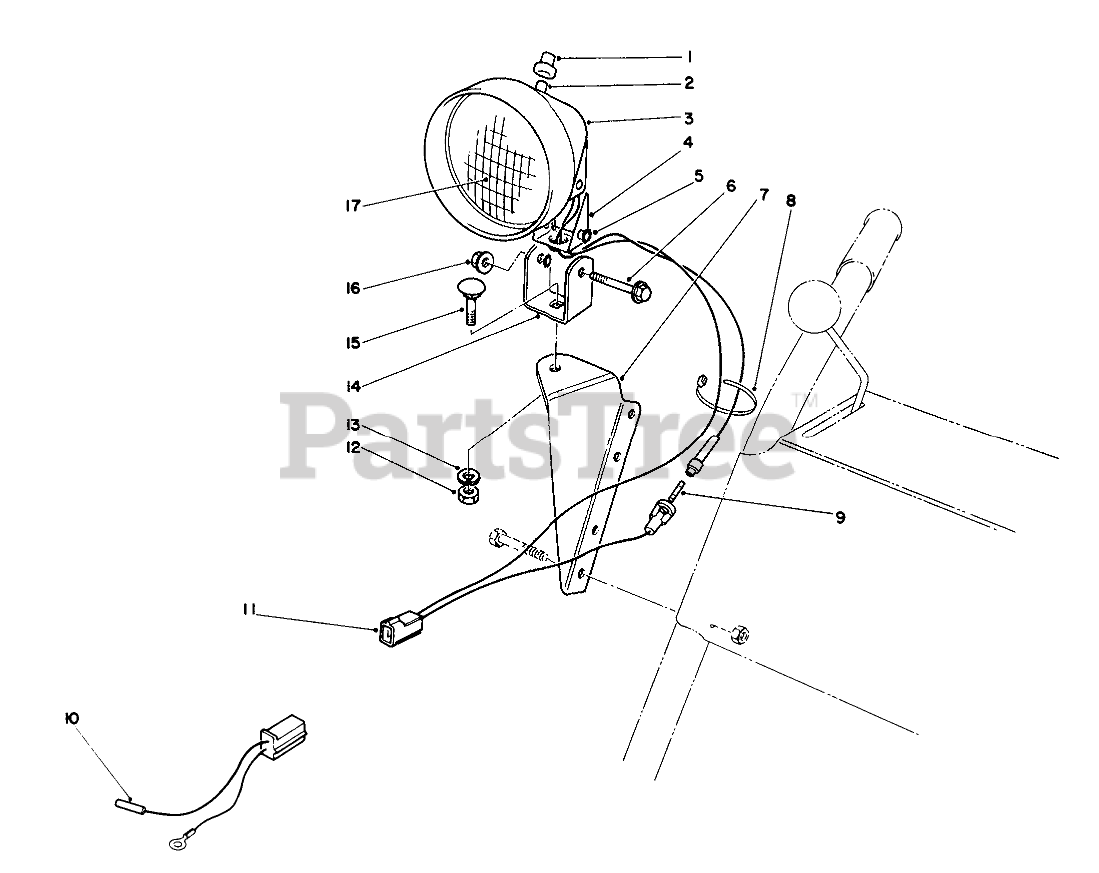

LIGHT KIT NO. 54-9820 (OPTIONAL) Parts Diagram

  • Title

1

Toro 218-473

BOOT-SWITCH

$21.99

$

Usually ships in 3-6 days

0

2

Toro 218-553

SWITCH ASM
(Superseded to 110-6269)

$

$

Not available

3

Toro 218-552

Bucket-Headlamp

$

$

Not available

4

Toro 218-554

TO BE DISCONTINED-NOT NEEDED ON PRODUCT

$

$

Not available

5

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

6

Toro 322-13

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

7

Toro 54-9830

LAMP MOUNT B

$

$

Not available

8

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

9

Fuse-71/2 Amp

Note: Obtain Locally

$

$

Not available

10

Toro 54-9810

WIRE ASM

$24.99

$

Usually ships in 3-6 days

0

11

Toro 218-555

WIRE ASM

$

$

Not available

12

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

13

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

14

Toro 218-556

BRACKET

$

$

Not available

15

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

16

Toro 32128-35

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

17

Toro 218-15

SEALED BEAM

$

$

Not available

Toro 54-9870

Headlamp Assembly Complete (Incl. Ref. #1-6, 9, 11 & 12-17)

Note: Not illustrated

$

$

Not available
