38090 (1132) - Toro 32" Snow Thrower (SN: 006000001 - 006999999) (1986) STARTER MOTOR KIT MODEL NO. 37-4630 (OPTIONAL) Parts Diagram

32" Snow Thrower

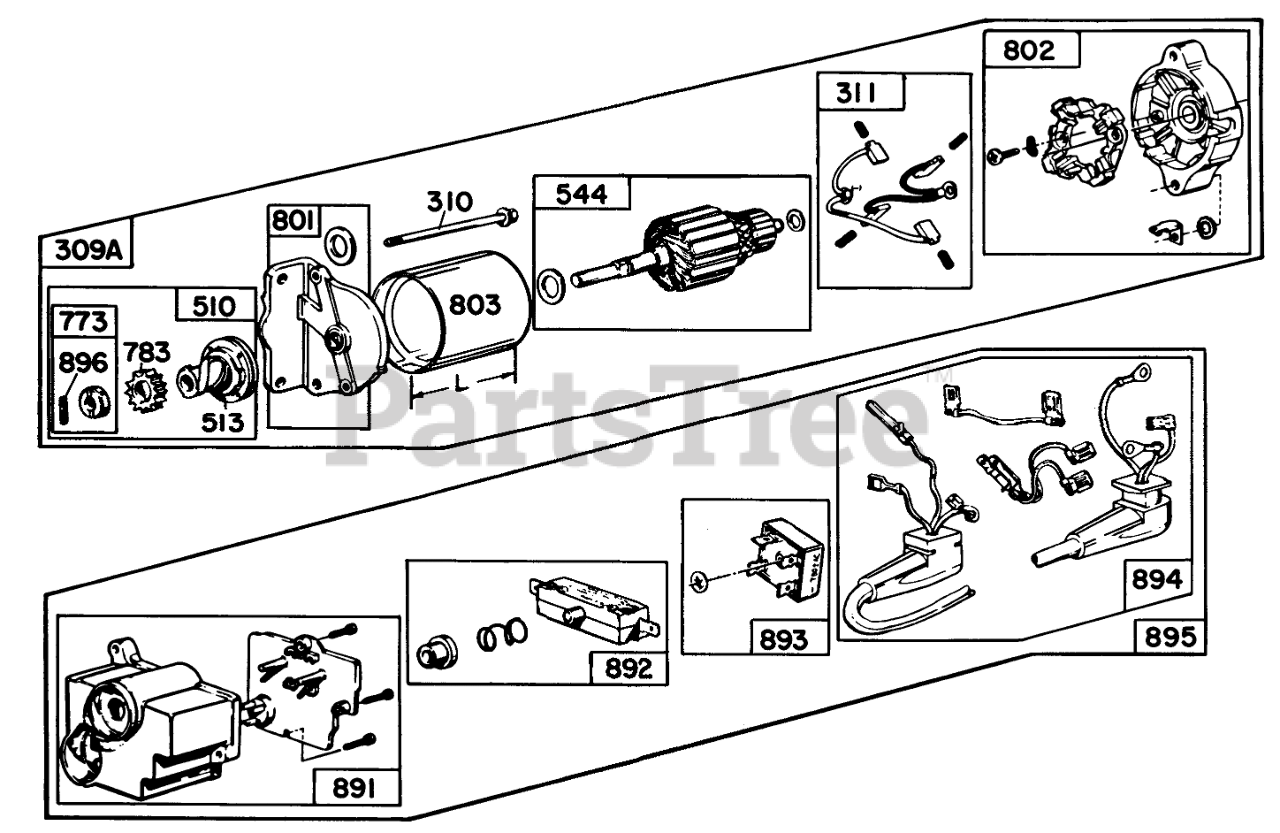

STARTER MOTOR KIT MODEL NO. 37-4630 (OPTIONAL) Parts Diagram

  • Title
309

Briggs & Stratton 393851

Motor & Drive Assembly
(Superseded to 396505)

$319.99

$

Usually ships in 2-12 days

0

310

Briggs & Stratton 93934

Thru Bolt Assembly
(Superseded to 690318)

$6.49

$

In Stock, only 2 left!

0

311

Briggs & Stratton 393612

Brush Assembly

$45.99

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 391461

Drive Assembly (Incl. Ref. #513, 773, 783 & 896)
(Superseded to 696535)

$36.99

$

Usually ships in 2-12 days

0

513

Briggs & Stratton 391135

Clutch Assembly
(Superseded to 692024)

$21.99

$

In Stock, only 2 left!

0

544

Briggs & Stratton 393607

Armature Assembly
(Superseded to 396505)

$319.99

$

Usually ships in 2-12 days

0

773

Briggs & Stratton 391462

Retainer & Pin (Incl. Ref. #8961

$10.99

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 280104

Gear
(Superseded to 695708)

$6.99

$

In Stock, only 2 left!

0

801

Briggs & Stratton 393228

Drive End Cap Assembly
(Superseded to 394398)

$31.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 393833

Comm. End Cap Assembly

$

$

Not available

803

Briggs & Stratton 393433

Housing Assembly
(Superseded to 394254)

$61.99

$

Usually ships in 2-12 days

0

891

Briggs & Stratton 393705

Housing Group

$

$

Not available

892

$

$

Not available

893

$40.99

$

In Stock, only 1 left!

0

894

$

$

Not available

895

Briggs & Stratton 393486

Control Group

$58.99

$

Usually ships in 2-12 days

0

896

Briggs & Stratton 93754

Pin
(Superseded to 94192)

$4.99

$

Usually ships in 2-12 days

0

Toro 38-0070

Bracket Switch

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

Toro 38-0070

Bracket Switch

Note: Not illustrated

$

$

Not available

Toro 3296-2

NUT-LOCK, NI

Note: Not illustrated

$2.49

$

In Stock, Qty 20+

0

Toro 3296-2

NUT-LOCK, NI

Note: Obtain parts from www.briggsandstratton.com

$2.49

$

In Stock, Qty 20+

0

Toro 3252-6

10-24 X 1 FIL HD MS

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

Toro 3252-6

10-24 X 1 FIL HD MS

Note: Not illustrated

$

$

Currently unavailable
