38090 (1132) - Toro 32" Snow Thrower (SN: 004000001 - 004999999) (1984) ENGINE ASSEMBLY Parts Diagram

32" Snow Thrower

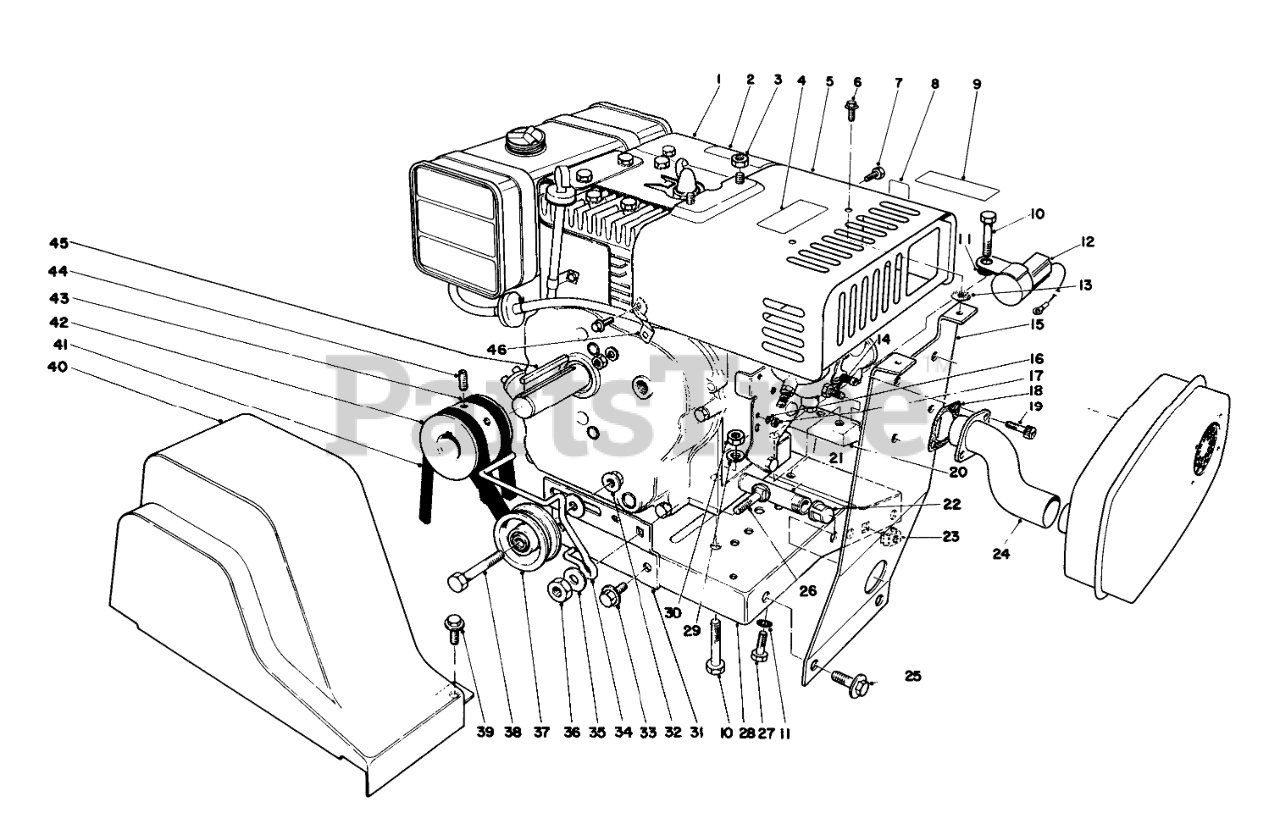

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 221-757

Engine

$

$

Not available

2

Toro 41-8540

Decal-Hazard
(Superseded to 54-9750)

$

$

Not available

3

Toro 32153-3

NUT-HEX, SIDE DEFORM

$6.49

$

Usually ships in 3-6 days

0

4

Toro 29-6390

Decal Hot Surface Warning
(Superseded to 53-7680)

$

$

Not available

5

Toro 39-1780

Heater Box

$

$

Not available

6

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

7

Toro 32144-12

Screw

$

$

Not available

8

Toro 29-6400

CHOKE DECAL

$

$

Not available

9

Toro 42-1740

DECAL SYNCHRO BALANCE

$

$

Not available

10

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

11

Toro 3254-2

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

12

Toro 41-8610

INTERLOCK MODULE

$

$

Not available

13

Toro 25-1600

Washer

$

$

Not available

14

Toro 32140-70

1/4-20 X 1/2 SEMS MS

$

$

Not available

15

Toro 39-1740

Muffler Mounting Bracket

$

$

Not available

16

Toro 3254-10

WASHER-LOCK/INT

$

$

Not available

17

Toro 3296-1

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0

18

Toro 39-1810

Gasket

$

$

Not available

19

Toro 3274-12

SCREW-HSH

$1.49

$

In Stock, Qty 5

0

20

Toro 22-8960

Block Engine Mounting

$

$

Not available

21

Toro 289-20

NIPPLE-PIPE

$

$

Not available

22

Toro 2884

Pipe Cap

$

$

Currently unavailable

23

Toro 3290-433

RETAINER NUT

$

$

Not available

24

Toro 39-1800

EXHAUST PIPE

$

$

Not available

25

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

26

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, Qty 10

0

27

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Toro 22-9030

Base-Engine

$

$

Not available

29

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

30

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

31

Toro 41-8580

BELT IDLER BRKT

$

$

Not available

32

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

33

Toro 32144-15

SCREW-HHFTF

$9.49

$

Usually ships in 3-6 days

0

34

Toro 41-8580

BELT IDLER BRKT

$

$

Not available

35

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

36

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

37

Toro 244-63

PULLEY B

$

$

Not available

38

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

39

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 15

0

40

Toro 17-6550

BELT GUARD

$

$

Not available

41

Toro 26-9670

V-BELT

$28.99

$

In Stock, Qty 9

0

42

Toro 21-4100

ENGINE PULLEY

$

$

Not available

43

Toro 17-6540

V-BELT

$29.99

$

In Stock, only 4 left!

0

44

Toro 3246-14

Screw-Set
(Superseded to 3246-3)

$13.99

$

Usually ships in 3-6 days

0

45

Toro 5-0930

KEY

$

$

Not available

46

Toro 39-1790

Brace Heater Box

$

$

Not available

Toro 25-9150

REPLACEMNT SERIAL PLT

Note: Not illustrated

$19.99

$

Usually ships in 3-6 days

0
