38090 (1132) - Toro 32" Snow Thrower (SN: 003000001 - 003999999) (1983) STARTER MOTOR KIT MODEL NO. 37-4630 (8 H.P. & 11 H.P. SNOWTHROWER MODEL 38150 & 38090) Parts Diagram

32" Snow Thrower

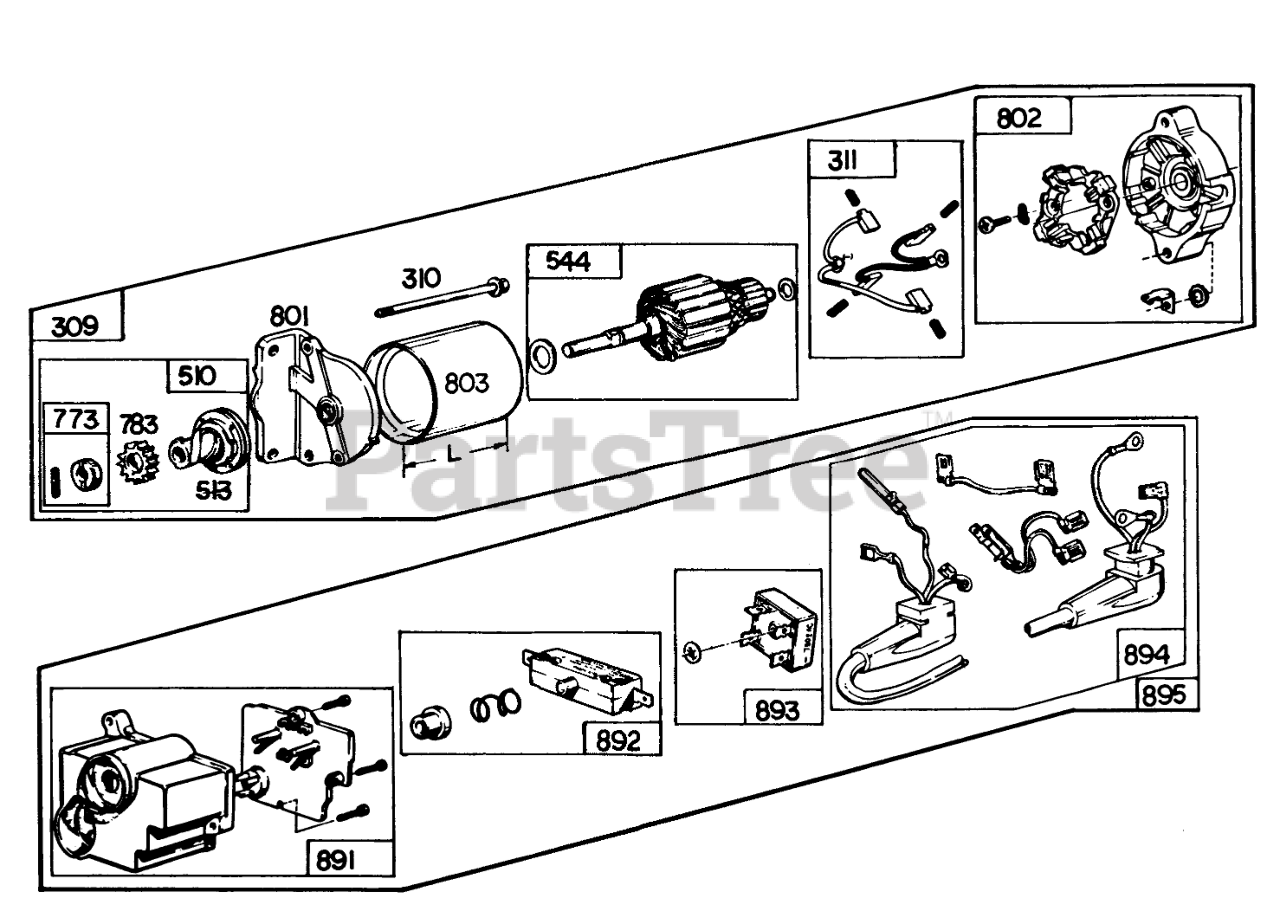

STARTER MOTOR KIT MODEL NO. 37-4630 (8 H.P. & 11 H.P. SNOWTHROWER MODEL 38150 & 38090) Parts Diagram

  • Title

309

Briggs & Stratton 393851

Motor & Drive Assembly
(Superseded to 396505)

Note: Obtain parts from www.briggsandstratton.com

$319.99

$

Usually ships in 2-12 days

0

310

Briggs & Stratton 93889

Thru Bolt Assembly
(Superseded to 690318)

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, only 2 left!

0

311

Briggs & Stratton 393612

Brush Assembly

Note: Obtain parts from www.briggsandstratton.com

$45.99

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 391461

Drive Assembly
(Superseded to 696535)

Note: Obtain parts from www.briggsandstratton.com

$36.99

$

Usually ships in 2-12 days

0

513

Briggs & Stratton 391135

Clutch Assembly
(Superseded to 692024)

Note: Obtain parts from www.briggsandstratton.com

$21.99

$

In Stock, only 3 left!

0

544

Briggs & Stratton 393607

Armature Assembly
(Superseded to 396505)

Note: Obtain parts from www.briggsandstratton.com

$319.99

$

Usually ships in 2-12 days

0

773

Briggs & Stratton 391462

Gear-Starter

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 280104

Gear
(Superseded to 695708)

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, only 4 left!

0

801

Briggs & Stratton 393228

Drive End Cap Assembly
(Superseded to 394398)

Note: Obtain parts from www.briggsandstratton.com

$31.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 393833

Comm. End Cap Assembly

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

803

Briggs & Stratton 393433

Housing Assembly
(Superseded to 394254)

Note: Obtain parts from www.briggsandstratton.com

$61.99

$

Usually ships in 2-12 days

0

891

Briggs & Stratton 393705

Housing Group

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

892

Briggs & Stratton 393708

Switch Group

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

893

Briggs & Stratton 393707

Rectifier

Note: Obtain parts from www.briggsandstratton.com

$40.99

$

In Stock, only 1 left!

0

894

Briggs & Stratton 393706

Lead Group

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

895

Briggs & Stratton 393486

Control Group

Note: Obtain parts from www.briggsandstratton.com

$58.99

$

Usually ships in 2-12 days

0

Toro 38-0070

Bracket Switch

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

Toro 38-0070

Bracket Switch

Note: Obtain from The Toro Co.

$

$

Not available

Toro 38-0070

Bracket Switch

Note: Not illustrated

$

$

Not available

Toro 32146-18

Nut
(Superseded to 3296-2)

Note: Not illustrated

$2.49

$

In Stock, Qty 20+

0

Toro 32146-18

Nut
(Superseded to 3296-2)

Note: Obtain from The Toro Co.

$2.49

$

In Stock, Qty 20+

0

Toro 32146-18

Nut
(Superseded to 3296-2)

Note: Obtain parts from www.briggsandstratton.com

$2.49

$

In Stock, Qty 20+

0

Toro 3252-6

10-24 X 1 FIL HD MS

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

Toro 3252-6

10-24 X 1 FIL HD MS

Note: Obtain from The Toro Co.

$

$

Currently unavailable

Toro 3252-6

10-24 X 1 FIL HD MS

Note: Not illustrated

$

$

Currently unavailable
