38090 (1132) - Toro 32" Snow Thrower (SN: 001000001 - 001999999) (1981) ENGINE ASSEMBLY (MODEL 38150) Parts Diagram

32" Snow Thrower

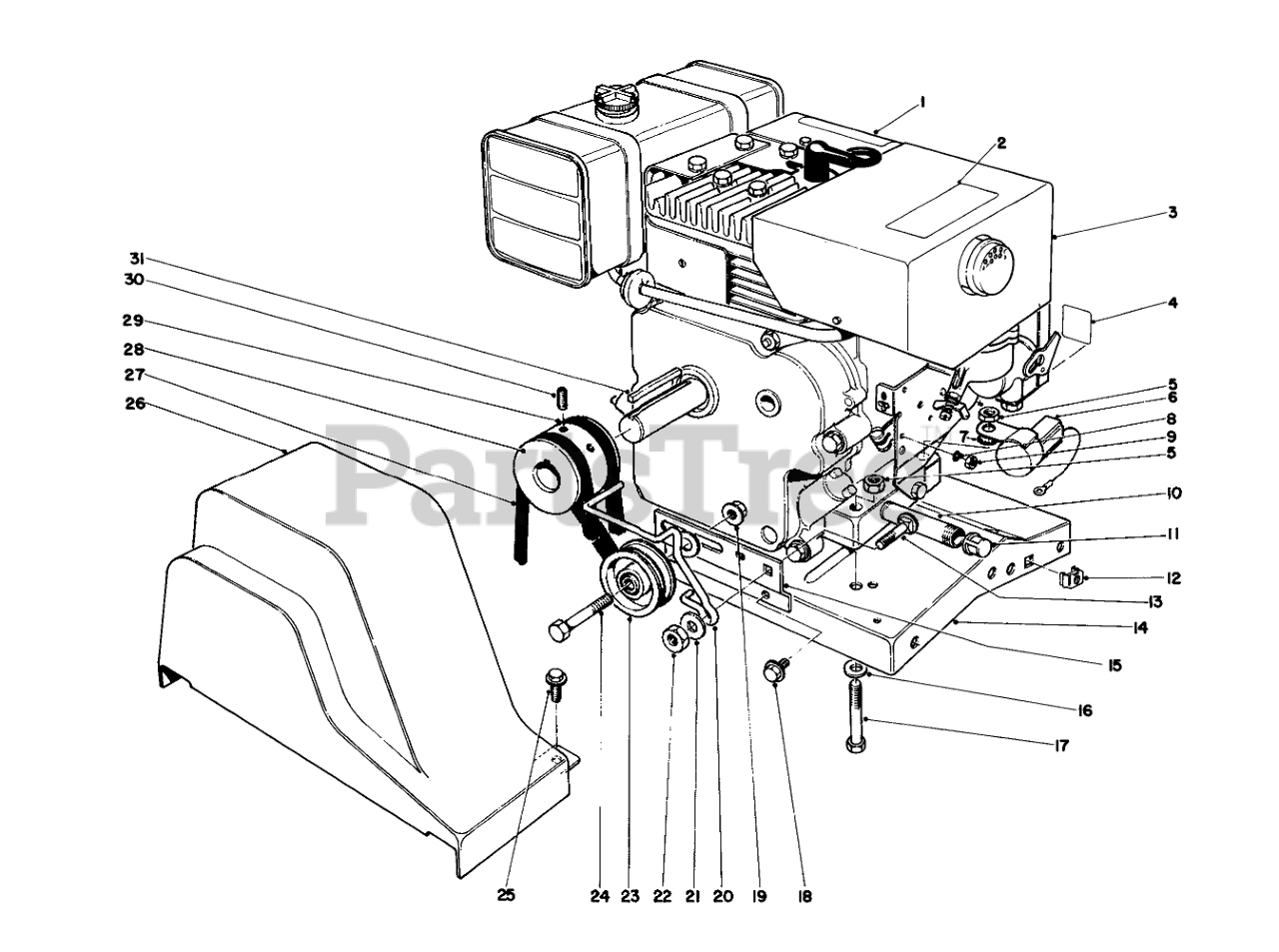

ENGINE ASSEMBLY (MODEL 38150) Parts Diagram

  • Title
1

Toro 41-8540

Decal-Hazard
(Superseded to 54-9750)

$

$

Not available

2

Toro 29-6390

Decal Hot Surface Warning
(Superseded to 53-7680)

$

$

Not available

3

Toro 221-600

Engine

$

$

Currently unavailable

4

Toro 29-6400

CHOKE DECAL

$

$

Not available

5

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Toro 41-8610

INTERLOCK MODULE

$

$

Not available

7

Toro 3254-2

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

8

Toro 3254-10

WASHER-LOCK/INT

$

$

Not available

9

Toro 3296-1

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0

10

Toro 289-20

NIPPLE-PIPE

$

$

Not available

11

Toro 288-4

CAP-PIPE

$23.99

$

In Stock, only 1 left!

0

12

Toro 3290-398

Retained Nut
(Superseded to 3290-433)

$

$

Not available

13

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

14

Toro 22-9030

Base-Engine

$

$

Not available

15

Toro 41-8580

BELT IDLER BRKT

$

$

Not available

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

18

Toro 32144-15

SCREW-HHFTF

$9.49

$

Usually ships in 3-6 days

0

19

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

20

Toro 41-8590

BELT GUIDE

$

$

Not available

21

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

22

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

23

Toro 244-63

PULLEY B

$

$

Not available

24

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

25

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 7

0

26

Toro 17-6550

BELT GUARD

$

$

Not available

27

Toro 26-9670

V-BELT

$28.99

$

In Stock, only 2 left!

0

28

Toro 21-4100

ENGINE PULLEY

$

$

Not available

29

Toro 17-6540

V-BELT

$29.99

$

In Stock, only 4 left!

0

30

Toro 3246-14

Screw-Set
(Superseded to 3246-3)

$13.99

$

Usually ships in 3-6 days

0

31

$

$

Not available

Toro 25-9150

REPLACEMNT SERIAL PLT

Note: Not illustrated

$19.99

$

Usually ships in 3-6 days

0
