38087 (1332) - Toro 32" Power Shift Snow Thrower (SN: 240000001 - 240999999) (2004) HEADLAMP ASSEMBLY PART NO. 54-9871 Parts Diagram

32" Power Shift Snow Thrower

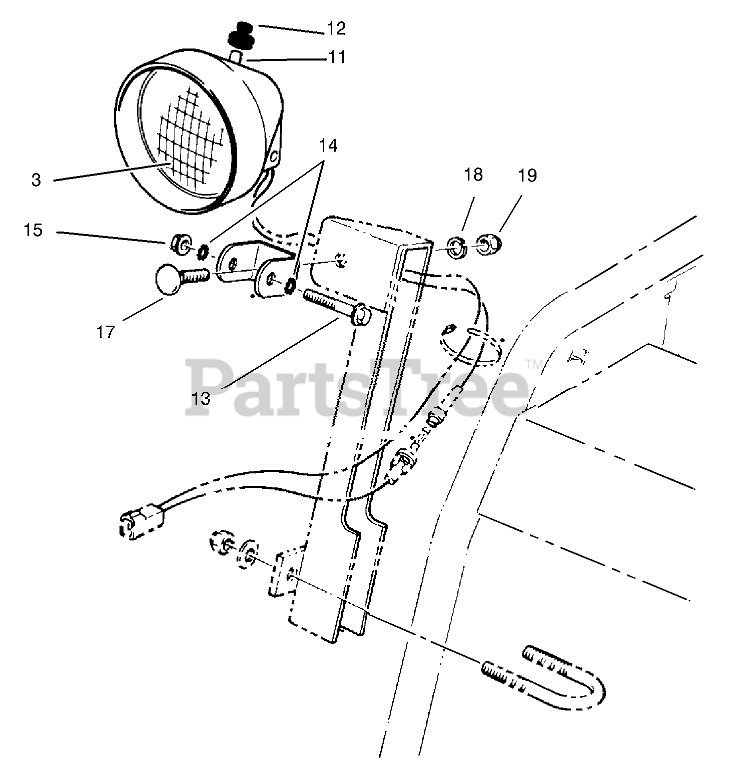

HEADLAMP ASSEMBLY PART NO. 54-9871 Parts Diagram

  • Title
1

Toro 54-9871

HEADLAMP ASM

Note: Not illustrated

$

$

Not available

3

Toro 218-16

BEAM-SEALED

$

$

Not available

11

Toro 218-553

SWITCH ASM
(Superseded to 110-6269)

$

$

Not available

12

Toro 92-6033

BOOT-SWITCH

$

$

Not available

13

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

14

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

15

Toro 32128-29

NUT-LOCK, FLANGE

$2.49

$

Usually ships in 3-6 days

0

17

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

18

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

19

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0
