38087 (1332) - Toro 32" Power Shift Snow Thrower (SN: 240000001 - 240999999) (2004) 32IN AUGER GEARCASE ASSEMBLY PART NO. 74-1562 Parts Diagram

32" Power Shift Snow Thrower

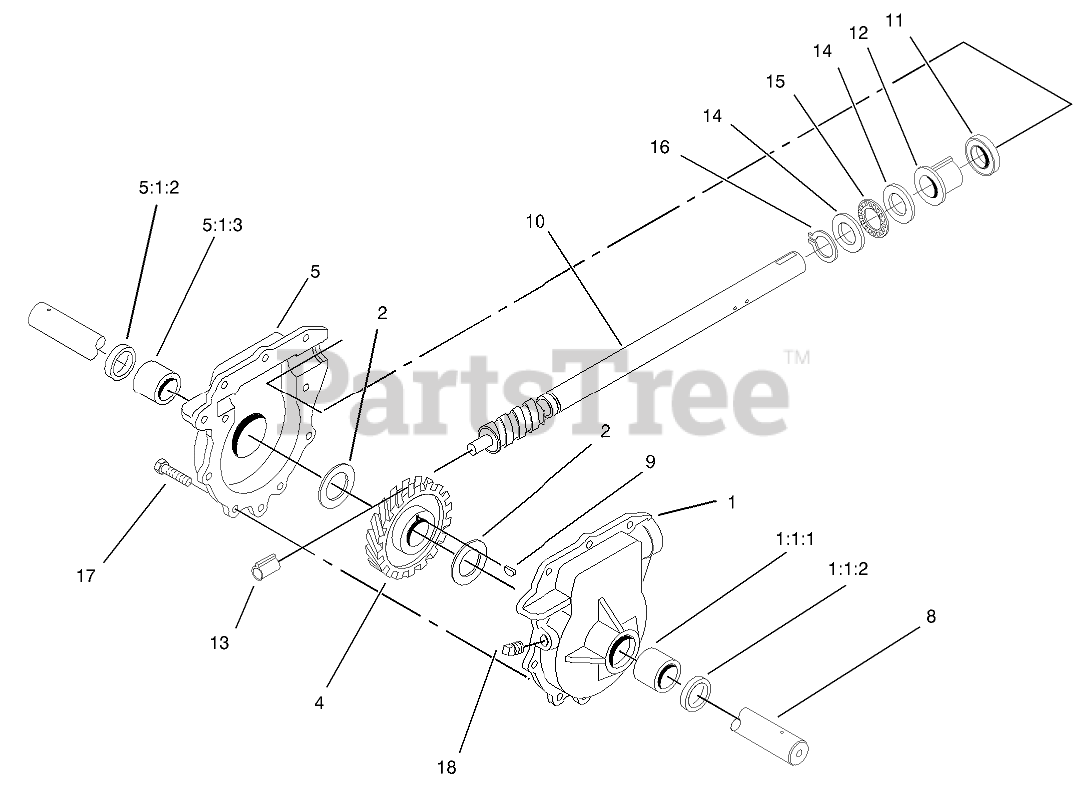

32IN AUGER GEARCASE ASSEMBLY PART NO. 74-1562 Parts Diagram

  • Title

1

Toro 74-1570

LH AUGER GEARCASE ASM
(Superseded to 110-3439)

$338.99

$

Usually ships in 3-6 days

0

1:1:1

Toro 256-237

BUSHING

$15.99

$

In Stock, Qty 5

0

1:1:2

Toro 7-0045

SEAL-OIL

$15.99

$

In Stock, Qty 16

0

2

Toro 252-71

WASHER-THRUST

$19.99

$

In Stock, only 2 left!

0

4

Toro 62-0120

GEAR-HELICAL
(Superseded to 138-0696)

$67.99

$

In Stock, only 1 left!

0

5

Toro 74-1580

RH AUGER GEARCASE ASM
(Superseded to 110-3439)

$338.99

$

Usually ships in 3-6 days

0

5:1:2

Toro 7-0045

SEAL-OIL

$15.99

$

In Stock, Qty 16

0

5:1:3

Toro 256-237

BUSHING

$15.99

$

In Stock, Qty 5

0

8

Toro 62-1532

SHAFT-AUGER

$

$

Not available

9

Toro 3257-10

KEY-WOODRUFF

$6.49

$

In Stock, only 1 left!

0

10

Toro 66-7811

SHAFT-IMPELLER

$263.99

$

Usually ships in 3-6 days

0

11

Toro 253-149

SEAL-OIL

$12.99

$

In Stock, only 3 left!

0

12

Toro 37-6560

BUSHING-INPUT

$42.99

$

In Stock, only 3 left!

0

13

Toro 62-1150

BUSHING-WORM

$7.99

$

In Stock, Qty 5

0

14

Toro 252-78

WASHER-THRUST

$26.99

$

In Stock, only 2 left!

0

15

Toro 252-76

BEARING-THRUST

$21.99

$

In Stock, only 1 left!

0

16

Toro 32151-33

RING-RETAINING, Ext

$3.49

$

In Stock, only 2 left!

0

17

Toro 32144-110

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

18

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

Usually ships in 3-6 days

0
