38086 (824 XL) - Toro 24" Power Throw Snow Thrower (SN: 220000001 - 220999999) (2002) HEADLAMP ASSEMBLY Parts Diagram

24" Power Throw Snow Thrower

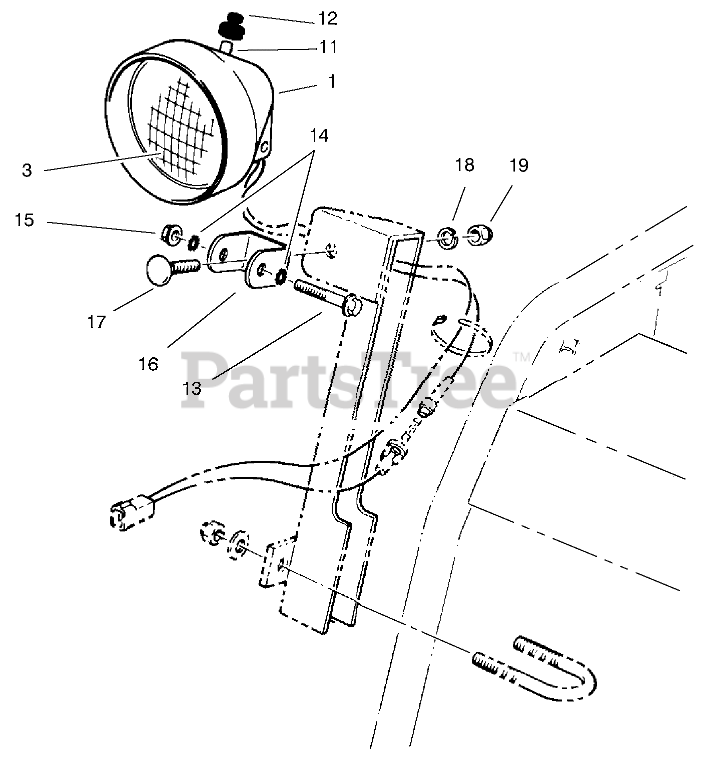

HEADLAMP ASSEMBLY Parts Diagram

  • Title
1

Toro 218-552

Bucket-Headlamp (only on: 38066)

$

$

Not available

3

Toro 218-16

Beam-Sealed (only on: 38066)

$

$

Not available

11

Toro 218-553

Switch ASM (only on: 38066)
(Superseded to 110-6269)

$

$

Not available

12

Toro 92-6033

Boot-Switch (only on: 38066)

$

$

Not available

13

Toro 322-13

Screw-HH (only on: 38066)

$3.49

$

In Stock, only 3 left!

0

14

Toro 3255-8

Washer-Lock/Ext (only on: 38066)

$0.99

$

In Stock, Qty 5

0

15

Toro 32128-35

Nut-Hex, Flange (only on: 38066)

$2.99

$

Usually ships in 3-6 days

0

16

Toro 218-556

Bracket (only on: 38066)

$

$

Not available

17

Toro 3231-22

Screw-CARR (only on: 38066)

$3.49

$

In Stock, Qty 20+

0

18

Toro 3253-21

Washer-Lock/Sp (only on: 38066)

$0.99

$

In Stock, Qty 10

0

19

Toro 3217-7

Nut-Hex (only on: 38066)

$0.99

$

In Stock, Qty 20+

0
