38086 (824 XL) - Toro 24" Power Throw Snow Thrower (SN: 200000001 - 200999999) (2000) UPPER TRACTION ASSEMBLY Parts Diagram

24" Power Throw Snow Thrower

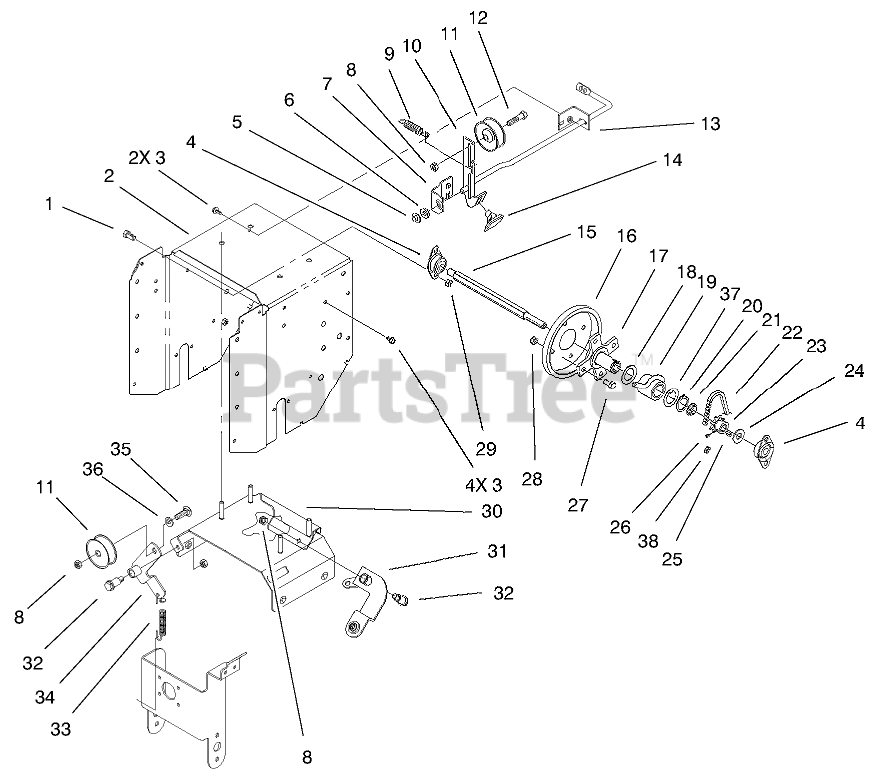

UPPER TRACTION ASSEMBLY Parts Diagram

  • Title
1

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

2

Toro 94-8852-01

FRAME-TRACTION

$412.99

$

Usually ships in 3-6 days

0

3

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

4

Toro 94-8824

BEARING-TRIANGLE

$40.99

$

In Stock, only 2 left!

0

5

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

6

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

7

Toro 94-8829

MOUNTING-CLUTCH ROD BRACKET

$

$

Not available

8

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

9

Toro 53-7570

SPRING

$16.99

$

In Stock, only 1 left!

0

10

Toro 94-8828-03

ROD-AUGER CLUTCH

$

$

Not available

11

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 2 left!

0

12

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 16

0

13

Toro 94-8841

MOUNTING-REAR CLUTCH ROD

$

$

Not available

14

Toro 66-8060

PAD-BRAKE

$18.99

$

In Stock, Qty 20+

0

15

Toro 94-8816

SHAFT-HEX

$115.99

$

Usually ships in 3-6 days

0

16

Toro 40-8170

FRICTION WHEEL

$85.99

$

In Stock, only 4 left!

0

17

Toro 95-7931

HUB-TRACTION DISC

$393.99

$

Usually ships in 3-6 days

0

18

Toro 9547

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

19

Toro 94-8883

SLIDER RING ASM

$109.99

$

Usually ships in 3-6 days

0

20

Toro 32151-36

RING-RETAINING

$4.99

$

In Stock, only 4 left!

0

21

Toro 94-8862

SPACER

$5.99

$

In Stock, only 1 left!

0

22

Toro 20-1810

ROLLER-CHAIN

$93.99

$

Usually ships in 3-6 days

0

23

Toro 5-9820

SPROCKET

$100.99

$

Usually ships in 3-6 days

0

24

Toro 87-7270

WASHER-THRUST

$0.99

$

In Stock, Qty 20+

0

25

Toro 94-8850

KEY-SQUARE

$2.99

$

Usually ships in 3-6 days

0

26

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 3 left!

0

27

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

28

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

29

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

30

Toro 94-8851-03

BRACE ASM

$

$

Not available

31

Toro 99-9315

SHIFT ARM ASM

$298.99

$

Usually ships in 3-6 days

0

32

Toro 94-8859

BOLT-SHOULDER

$

$

Not available

33

Toro 94-8870

SPRING-EXTENSION IDLER

$12.99

$

Usually ships in 3-6 days

0

34

Toro 94-8864

BRACKET-IDLER HUB

$80.99

$

Usually ships in 3-6 days

0

35

Toro 3231-26

SCREW-CARR

$5.49

$

In Stock, only 3 left!

0

36

Toro 9202594

WASHER

$0.99

$

In Stock, only 4 left!

0

37

Toro 98-2252

WASHER-THRUST

$14.99

$

Usually ships in 3-6 days

0

38

Toro 2710-6

LINK-CONNECTING

$19.99

$

Usually ships in 3-6 days

0
