38086 (824 XL) - Toro 24" Power Throw Snow Thrower (SN: 200000001 - 200999999) (2000) HANDLE & CONTROLS ASSEMBLY Parts Diagram

24" Power Throw Snow Thrower

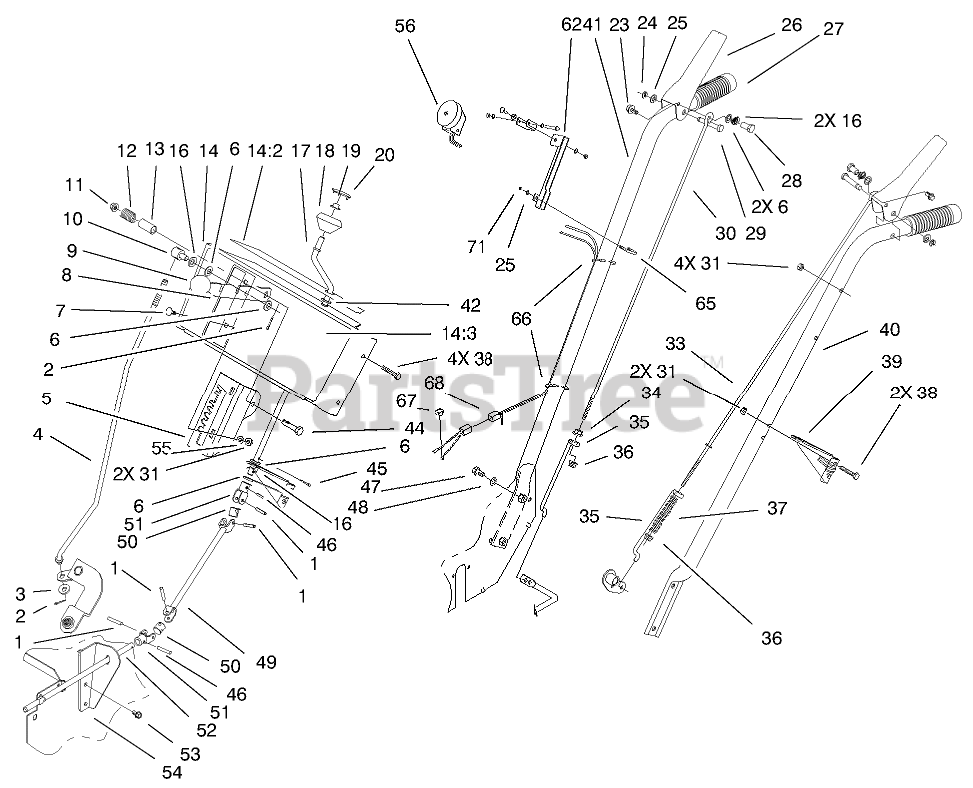

HANDLE & CONTROLS ASSEMBLY Parts Diagram

  • Title
1

Toro 32121-16

PIN-SPRING

$0.99

$

In Stock, Qty 8

0

2

Toro 3272-4

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

3

Toro 3256-38

WASHER-FLAT

$0.99

$

In Stock, only 2 left!

0

4

Toro 94-9875

ROD-SHIFT

$

$

Not available

5

Toro 99-1799-03

Mount-Speed Selector (only on: 38086)

$

$

Not available

6

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

8

Toro 94-8806-03

SELECTOR-SPEED

$12.99

$

Usually ships in 3-6 days

0

9

$13.99

$

Usually ships in 3-6 days

0

10

Toro 101161

TRUNNION

$

$

Not available

11

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

12

Toro 37-9150

SPRING

$10.99

$

In Stock, only 1 left!

0

13

Toro 40-8130

SPACER

$10.99

$

In Stock, only 1 left!

0

14

Toro 100-3573

Control Panel ASM (only on: 38066)

$

$

Not available

14

Toro 100-3572

Control Panel ASM (only on: 38086)

$

$

Not available

14:2

Toro 99-5952

Decal-Escutcheon Back (Dom)(only on: 38086)

$

$

Not available

14:2

Toro 99-5953

Decal-Escutcheon Back (Intl)(only on: 38066)

$

$

Not available

14:3

Toro 100-3340

Decal-Control Panel (only on: 38086)

$

$

Not available

14:3

Toro 93-8034

Decal-Control Panel (only on: 38066)

$

$

Not available

16

Toro 612586

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

17

Toro 94-8810

ROD - CHUTE CRANK

$

$

Not available

18

Toro 62-1320

KNOB-CONTROL, CHUTE

$27.99

$

Usually ships in 3-6 days

0

19

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

20

Toro 62-1520

COVER-KNOB

$

$

Not available

21

Toro 3234-13

Screw-HHF (only on: 38086)

$1.49

$

In Stock, only 4 left!

0

23

Toro 3234-13

Screw-HHF (only on: 38066)

$1.49

$

In Stock, only 4 left!

0

24

Toro 32151-73

RING-CLIP

$3.49

$

In Stock, Qty 6

0

25

Toro 3256-23

Washer-Flat (only on: 38086)

$2.49

$

In Stock, Qty 20+

0

26

Toro 63-3640

HANDLE-CONTROL
(Superseded to 94-8887-03)

$

$

Not available

27

Toro 74-1360

GRIP-HANDLE

$

$

Not available

28

Toro 47-4990

POST-MOUNTING, LINKAGE

$27.99

$

Usually ships in 3-6 days

0

29

Toro 52-5600

PIN-LEVER, CONTROL

$28.99

$

Usually ships in 3-6 days

0

30

Toro 94-8838

ROD-UPPER ENGAGE AUGER

$23.99

$

Usually ships in 3-6 days

0

31

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

33

Toro 94-8837

ROD-UPPER TRACTION

$34.99

$

Usually ships in 3-6 days

0

34

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

35

Toro 94-8836

ROD-LOWER TRACTION

$

$

Not available

36

Toro 32128-32

NUT-HHF

$2.99

$

In Stock, Qty 20+

0

37

Toro 38-4520

SPRING

$18.99

$

In Stock, only 2 left!

0

38

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

39

Toro 94-8839-03

BKT-UPPER CRANK

$

$

Not available

40

Toro 95-2695-03

LEFT HANDLE

$

$

Not available

41

Toro 94-8804-03

HANDLE-RIGHT

$

$

Not available

42

Toro 256-249

Bushing
(Superseded to 5979)

$3.49

$

In Stock, Qty 20+

0

44

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

45

Toro 3272-9

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

46

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

47

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

48

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

49

Toro 94-8834

WA - CLEVIS ROD

$

$

Not available

50

Toro 94-8867

BLOCK - PIVOT

$

$

Not available

51

Toro 94-8868

WA - CLEVIS MOUNT

$

$

Not available

52

Toro 94-8809

ROD - CHUTE CONTROL

$

$

Not available

53

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

54

Toro 94-8840-01

BRKT-LOWER CRANK ROD (RED)

$

$

Not available

55

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

56

Toro 54-9871

Headlamp ASM (only on: 38066)

$

$

Not available

62

Toro 68-7110-03

Mount-Light (only on: 38066)

$126.99

$

Usually ships in 3-6 days

0

65

Toro 68-7140

U-Bolt (only on: 38066)

$

$

Not available

66

Toro 3290-378

Tie-Cable (only on: 38066)

$0.99

$

In Stock, Qty 8

0

67

Toro 3217-6

Nut-Hex (only on: 38066)

$1.49

$

In Stock, Qty 12

0

68

Toro 54-9810

Wire Assembly (only on: 38066)

$24.99

$

Usually ships in 3-6 days

0

71

Toro 3296-29

Nut-Lock Ni (only on: 38066)

$2.49

$

In Stock, Qty 20+

0
