38085 C (824) - Toro 24" Snow Thrower (SN: 007000001 - 007999999) (1987) ENGINE, TECUMSEH MODEL NO. HM80-155291L Parts Diagram

24" Snow Thrower

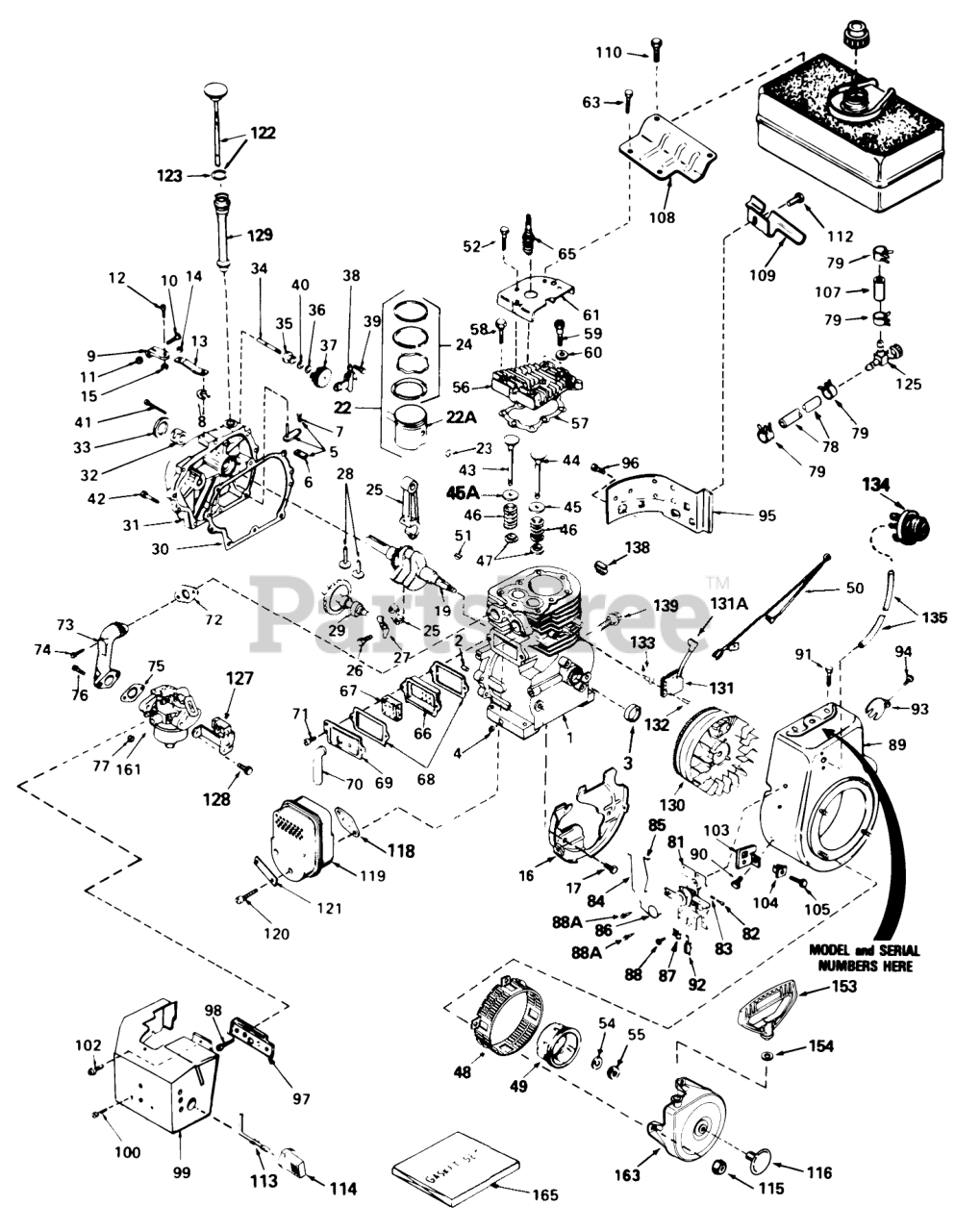

ENGINE, TECUMSEH MODEL NO. HM80-155291L Parts Diagram

  • Title

1

Tecumseh 35385

Cylinder Assy. (Incl. Ref. #2, 3 & 4)

$311.99

$

Usually ships in 3-12 days

0

2

Tecumseh 27652

Pin-Dowel

$2.49

$

Usually ships in 3-12 days

0

3

Tecumseh 35319

Seal-Oil

$4.99

$

In Stock, only 2 left!

0

4

Tecumseh 27642

Plug-Drain, Oil (SQH 1/4-18)

$1.99

$

In Stock, only 2 left!

0

5

Tecumseh 30699C

Rod Assembly-Governor (Incl. Ref. #6 & 7)

$17.99

$

In Stock, only 1 left!

0

6

Tecumseh 30700

Yoke-Governor

$1.99

$

Usually ships in 3-12 days

0

7

Tecumseh 650494

Screw (6-40x5/16)

$1.99

$

Usually ships in 3-12 days

0

8

Tecumseh 29642

Ring-Retaining

$100.99

$

In Stock, only 1 left!

0

9

Tecumseh 29916

Clamp-Lever, Governor

$1.99

$

In Stock, only 1 left!

0

10

Tecumseh 29826

Screw

$1.99

$

In Stock, only 3 left!

0

11

Tecumseh 29216

Nut-Lock

$1.99

$

In Stock, only 2 left!

0

12

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 5

0

13

Tecumseh 33454

Lever-Governor
(Superseded to 33454A)

$10.99

$

In Stock, only 1 left!

0

14

Tecumseh 29918

Washer-Lock

$1.99

$

In Stock, only 4 left!

0

15

Tecumseh 30322

Nut-Lock

$1.99

$

Usually ships in 3-12 days

0

16

Tecumseh 35326

Baffle-Blower Housing
(Superseded to 37853)

$11.99

$

In Stock, only 1 left!

0

17

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

19

Tecumseh 35372

Crankshaft
(Superseded to 35372A)

$166.99

$

Usually ships in 3-12 days

0

22

Tecumseh 34552

Piston-Pin & Ring Assy. (Std.) (Incl. Ref. #22A, 23 & 24)
(Superseded to 40049)

$

$

Not available

22

Tecumseh 34553

Piston-Pin & Ring Assy. (.010 oversize) (Incl. Ref. #22A, 23 & 24)
(Superseded to 40012)

$

$

Not available

22

Tecumseh 34554

Piston-Pin & Ring Assy. (.020 oversize) (Incl. Ref. #22A, 23 & 24)

$

$

Not available

22A

Tecumseh 34329A

Piston & Pin Assy. (Std.) (Incl. Ref. #23)
(Superseded to 40049)

$

$

Not available

22A

Tecumseh 34330A

Piston & Pin Assy. (.010 oversize) (Incl. Ref. #23)
(Superseded to 40012)

$

$

Not available

22A

Tecumseh 34331A

Piston & Pin Assy. (.020 oversize) (Incl. Ref. #23)

$

$

Not available

23

Tecumseh 27888

Ring-Retaining, Piston Pin

$1.99

$

Usually ships in 3-12 days

0

24

Tecumseh 34332

Ring Set (Std.)
(Superseded to 40049)

$

$

Not available

24

Tecumseh 34333

Ring Set (.010" OS)

$

$

Not available

24

Tecumseh 34334

Ring Set (.020" OS)

$38.99

$

In Stock, only 1 left!

0

25

Tecumseh 35373

Rod Assy.Connecting (Incl. Ref. #26 & 27)
(Superseded to 36897A)

$48.99

$

In Stock, only 1 left!

0

26

Tecumseh 650882

Bolt-Rod
(Superseded to 651033A)

$

$

Not available

27

Tecumseh 35374

Dipper-Oil

$1.99

$

In Stock, only 4 left!

0

28

Tecumseh 34034

Lifter-Valve
(Superseded to 34034A)

$10.99

$

In Stock, only 3 left!

0

29

Tecumseh 35375

Camshaft (MCR)

$

$

Not available

30

Tecumseh 35262

Cylinder Cover Gasket
(Superseded to 37342)

Note: Indicates parts included in Gasket Set, Ref. Num 165.

$11.99

$

Usually ships in 3-12 days

0

31

Tecumseh 35376

Cover-Cylinder (Incl. Ref. #32, 33 & 34)
(Superseded to 38027)

$

$

Not available

32

Tecumseh 35377

Bushing-Crankshaft

$11.99

$

In Stock, only 2 left!

0

33

Tecumseh 35319

Seal-Oil

$4.99

$

In Stock, only 2 left!

0

34

Tecumseh 31845

Shaft-Governor
(Superseded to 37587)

$

$

Not available

35

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, Qty 5

0

36

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, Qty 5

0

37

Tecumseh 35378

Gear Assy.-Governor (Incl. Ref. #40)

$3.99

$

In Stock, only 1 left!

0

38

Tecumseh 33369

Bracket-Gear, Governor

$8.49

$

In Stock, only 1 left!

0

39

Tecumseh 650836

Screw (10-24x1/2)
(Superseded to 650965)

$

$

Not available

40

Tecumseh 30590A

Washer-Flat

$1.99

$

In Stock, Qty 5

0

41

Tecumseh 650833

Screw (1/4-20x1-3/16)

$1.99

$

Usually ships in 3-12 days

0

42

Tecumseh 650832

Screw (1/4-20x1-11/16)

$

$

Not available

43

Tecumseh 34035

Valve-Intake (Std.) (Incl. Ref. #47)

$15.99

$

In Stock, only 1 left!

0

43

Tecumseh 34036

Valve-Intake (1/32"oversize) (Incl. Ref. #47)

$

$

Not available

44

Tecumseh 27878A

Valve-Exhaust (Std.) (Incl. Ref. #47)

$23.99

$

Usually ships in 3-12 days

0

44

Tecumseh 27880A

Valve-Exhaust (1/32"oversize) (Incl. Ref. #47)

$

$

Not available

45

Tecumseh 27882

Cap-Spring, Valve

$1.99

$

In Stock, Qty 5

0

45A

Tecumseh 34689

Seal-Intake Valve
(Superseded to 35862)

$9.49

$

Usually ships in 3-12 days

0

46

Tecumseh 27881

Spring-Valve

$3.99

$

Usually ships in 3-12 days

0

47

Tecumseh 32581

Keeper-Spring, Valve

$6.49

$

In Stock, Qty 8

0

48

Tecumseh 35446

Screen-Starter

$7.49

$

In Stock, only 1 left!

0

49

Tecumseh 35287

Cup-Starter
(Superseded to 35287A)

$10.99

$

Usually ships in 3-12 days

0

50

Tecumseh 35253

Ground Wire

$6.49

$

In Stock, only 2 left!

0

51

Tecumseh 32589

Key-Flywheel

$1.49

$

In Stock, only 4 left!

0

52

Tecumseh 650738

Screw (1/4-20 X 5/8)

$3.99

$

In Stock, only 1 left!

0

54

Tecumseh 650880

Washer-Belleville

$1.99

$

In Stock, only 3 left!

0

55

Tecumseh 650881

Nut-Flywheel

$1.99

$

In Stock, only 1 left!

0

56

Tecumseh 34030

Head Cylinder
(Superseded to 34030B)

$

$

Not available

57

Tecumseh 34041

Gasket-Cylinder Head
(Superseded to 34923A)

Note: Indicates parts included in Gasket Set, Ref. Num 165.

$7.99

$

In Stock, only 1 left!

0

58

Tecumseh 6021A

Screw (5/16-18x1-1/2)

$1.99

$

In Stock, Qty 6

0

59

Tecumseh 650727

Screw (5/16-18x1-25/32)

$3.99

$

In Stock, only 2 left!

0

60

Tecumseh 650691

Washer-Flat

$1.99

$

Usually ships in 3-12 days

0

61

Tecumseh 33272A

Cover-Cylinder Head
(Superseded to 33272D)

$7.49

$

In Stock, only 1 left!

0

63

Tecumseh 650713

Screw
(Superseded to 651055)

$1.99

$

In Stock, only 1 left!

0

65

Tecumseh 35395

Spark Plug-Resistor (R J19 L M)

$3.99

$

In Stock, Qty 14

0

66

Tecumseh 28423

Body-Breather

$13.99

$

In Stock, only 1 left!

0

67

Tecumseh 28424

Element-Breather

$3.99

$

In Stock, Qty 9

0

68

Tecumseh 27896

Gasket-Breather
(Superseded to 27896A)

Note: Indicates parts included in Gasket Set, Ref. Num 165.

$1.49

$

In Stock, Qty 5

0

69

Tecumseh 28425

Cover-Valve

$7.49

$

In Stock, only 1 left!

0

70

Tecumseh 27627

Tube-Breather
(Superseded to 35350)

$6.49

$

In Stock, only 1 left!

0

71

Tecumseh 650128

Screw

$5.49

$

In Stock, only 1 left!

0

72

Tecumseh 27915

Gasket-Intake
(Superseded to 27915A)

Note: Indicates parts included in Gasket Set, Ref. Num 165.

$5.99

$

In Stock, Qty 14

0

73

Tecumseh 33877

Pipe-Intake

$48.99

$

Usually ships in 3-12 days

0

74

Tecumseh 650378

Screw (T-30, 5/16-18x1-3/32)

$1.99

$

In Stock, only 3 left!

0

75

Tecumseh 33263

Gasket-Carburetor To Intake Pipe

Note: Indicates parts included in Gasket Set, Ref. Num 165.

$1.49

$

In Stock, Qty 17

0

76

Tecumseh 30088A

Screw (1/4-28x1)

$1.99

$

In Stock, only 2 left!

0

77

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, Qty 7

0

78

Tecumseh 30705

Line-Fuel

$16.99

$

In Stock, only 4 left!

0

79

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 20+

0

81

Tecumseh 34664

Control Assy. Speed (Incl. Ref. #82, 83, 86 & 92)

$53.99

$

In Stock, only 1 left!

0

82

Tecumseh 650549

Screw
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

83

Tecumseh 31342

Spring-Compression

$5.99

$

In Stock, only 1 left!

0

84

Tecumseh 34667

Link-Governor

$1.99

$

In Stock, only 3 left!

0

85

Tecumseh 33878

Link-Throttle

$6.99

$

Usually ships in 3-12 days

0

86

Tecumseh 34663

Spring-Throttle

$1.99

$

In Stock, only 2 left!

0

87

Tecumseh 27793

Conduit

$1.99

$

In Stock, only 2 left!

0

88

Tecumseh 28942

Screw (10-32 x 3/8)

$1.49

$

In Stock, only 4 left!

0

88A

Tecumseh 650821

Screw (10-32 x 1/2)

$1.99

$

In Stock, only 3 left!

0

89

Tecumseh 34822A

Housing-Blower
(Superseded to 37961)

$

$

Not available

90

Tecumseh 29747B

Screw

$1.99

$

In Stock, Qty 9

0

91

Tecumseh 650788

Screw (5/16-18x3/4)

$1.99

$

In Stock, only 1 left!

0

92

Tecumseh 610973

Terminal

$3.99

$

In Stock, only 4 left!

0

93

Tecumseh 33013

Screw

$3.99

$

Usually ships in 3-12 days

0

94

Tecumseh 650760

Screw (8-32 x 3/8)

$1.99

$

In Stock, Qty 7

0

95

Tecumseh 33273A

Extension-Housing, Blower

$7.49

$

Usually ships in 3-12 days

0

96

Tecumseh 650128

Screw

$5.49

$

In Stock, only 1 left!

0

97

Tecumseh 33377

Bracket-Carburetor
(Superseded to 37659)

$

$

Not available

98

Tecumseh 650767

Screw (8-32x27/64)

$1.49

$

In Stock, only 1 left!

0

99

Tecumseh 35057

Cover-Carburetor
(Superseded to 36547A)

$70.99

$

In Stock, only 1 left!

0

100

Tecumseh 28942

Screw (10-32 x 3/8)

$1.49

$

In Stock, only 4 left!

0

102

Tecumseh 650765

Screw (10-32x1/2)

$1.49

$

In Stock, only 2 left!

0

103

Tecumseh 34126

Bracket

$1.99

$

Usually ships in 3-12 days

0

104

Tecumseh 28545

Grommet

$1.99

$

In Stock, only 4 left!

0

105

Tecumseh 650643

Screw
(Superseded to 650760)

$1.99

$

In Stock, Qty 7

0

107

Tecumseh 29774

Line-Fuel (8.62)

$34.99

$

In Stock, Qty 5

0

108

Tecumseh 34154

Bracket-Tank, Fuel (Black)

$

$

Not available

109

Tecumseh 34155

Bracket-Tank, Fuel

$

$

Not available

110

Tecumseh 650665

Screw (1/4-15x7/8)

$1.99

$

In Stock, Qty 5

0

112

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

113

Tecumseh 34586

Rod-Choke

$5.49

$

Usually ships in 3-12 days

0

114

Tecumseh 35438

Knob-Control

$3.99

$

In Stock, Qty 11

0

115

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, Qty 7

0

116

Tecumseh 35392

Plug Starter

$1.99

$

In Stock, Qty 5

0

118

Tecumseh 27930

Gasket Exhaust
(Superseded to 35865)

Note: Indicates parts included in Gasket Set, Ref. Num 165.

$2.49

$

In Stock, only 4 left!

0

119

Tecumseh 35056

Muffler

$62.99

$

In Stock, only 2 left!

0

120

Toro 792093

Screw

$

$

Currently unavailable

121

Tecumseh 31588

Plate-Locking

$4.99

$

In Stock, Qty 17

0

122

Tecumseh 34011A

Dipstick-Oil (Incl. Ref. #123)
(Superseded to 34011B)

$15.99

$

In Stock, only 1 left!

0

123

Tecumseh 33590

O-Ring

$1.99

$

In Stock, only 1 left!

0

125

Tecumseh 32961

Valve-Shut Off
(Superseded to 35857)

$13.99

$

In Stock, Qty 11

0

127

Tecumseh 34587

Bracket-Choke
(Superseded to 34587B)

$9.49

$

In Stock, only 1 left!

0

128

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

$4.49

$

In Stock, only 3 left!

0

129

Tecumseh 33893A

Tube Fill

$

$

Not available

130

Tecumseh 611091

Flywheel (W/Ring Gear)

$

$

Not available

131

Tecumseh 35135

Solid State Assembly (Incl. Ref. #131A)
(Superseded to 35135B)

$62.99

$

In Stock, only 1 left!

0

131A

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 2 left!

0

132

Tecumseh 650814

Screw
(Superseded to 651007)

$1.99

$

In Stock, only 4 left!

0

133

Tecumseh 650872

Stud
(Superseded to 651024)

$3.99

$

In Stock, only 2 left!

0

134

Tecumseh 34814

Primer Assy.
(Superseded to 35769)

$14.99

$

In Stock, only 1 left!

0

135

Tecumseh 32180C

Line-Primer

$6.99

$

In Stock, Qty 9

0

138

Tecumseh 29443

Clip-Wire

$1.99

$

In Stock, only 4 left!

0

139

Tecumseh 650820

Screw (1/4-20x1/2)

$3.99

$

In Stock, Qty 11

0

153

Tecumseh 590574

Handle-Starter, Mitten Grip

$5.49

$

In Stock, only 1 left!

0

154

Tecumseh 650168

Washer

$1.99

$

Usually ships in 3-12 days

0

161

Tecumseh 632334

Carburetor (Incl. Ref. #75)
(Superseded to 632334A)

$136.99

$

In Stock, only 2 left!

0

163

Tecumseh 590630

Starter-Rewind
(Superseded to 590689B)

$108.99

$

In Stock, only 1 left!

0

165

Tecumseh 33279D

Gasket Set
(Superseded to 33279L)

$

$

Not available
