38085 (824) - Toro 24" Snow Thrower (SN: 003000001 - 003999999) (1983) HANDLE ASSEMBLY Parts Diagram

24" Snow Thrower

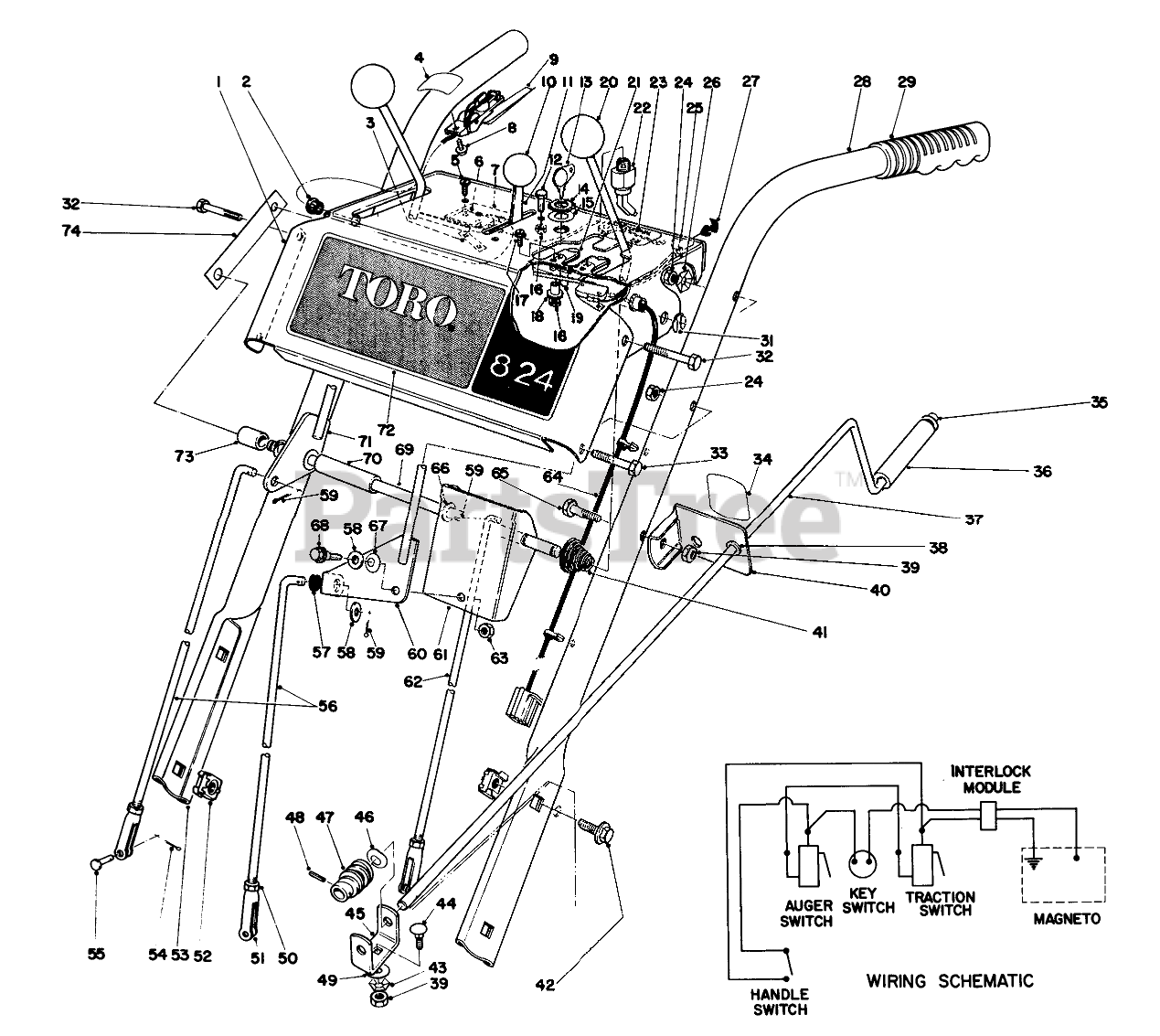

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 40-8470

ESCUTCHEON PLT B

$

$

Not available

2

Toro 237-130

BUSHING NYLON

$3.49

$

Usually ships in 3-6 days

0

3

Toro 3290-354

NUT-SPEED

$9.99

$

Usually ships in 3-6 days

0

4

Toro 39-7150

INTERLOCK DECAL

$

$

Not available

5

Toro 3290-313

SCREW-SPH

$7.49

$

Usually ships in 3-6 days

0

6

Toro 40-8200

SWITCH-MICRO

$30.99

$

In Stock, only 3 left!

0

7

Toro 22-7950

SWITCH MTG PAD

$

$

Not available

8

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

9

Toro 40-9690

INTERLOCK HDLE SWITCH
(Superseded to 131-4830)

$45.99

$

Usually ships in 3-6 days

0

10

Toro 233-36

CONTROL KNOB

$

$

Not available

11

Toro 40-8480

THROTTLE CONTROL

$

$

Not available

12

Toro 32140-99

HEX HEAD SEMS 10-24X1/2

$

$

Not available

13

Toro 33-2010

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 2 left!

0

14

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

15

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

16

Toro 32146-18

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

17

Toro 32514

Screw

$

$

Currently unavailable

18

Toro 22-9740

INTERLOCK SPACER

$8.99

$

Usually ships in 3-6 days

0

19

Toro 22-9730

INTERLOCK SPRING

$12.99

$

Usually ships in 3-6 days

0

20

Toro 233-21

KNOB

$13.99

$

In Stock, only 1 left!

0

21

Toro 22-9750

Slide Interlock
(Superseded to 22-9751)

$6.99

$

Usually ships in 3-6 days

0

22

Toro 40-8240

Key Switch
(Superseded to 40-8241)

$28.99

$

In Stock, only 1 left!

0

23

Toro 39-7130

INSTRUCTION DECAL

$

$

Not available

24

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 6

0

25

Toro 43-7450

WIRE CLAMP

$

$

Not available

26

Toro 3290-257

Washer

$

$

Not available

27

Toro 43-7460

Mounting Stud

$

$

Not available

28

Toro 25-6040

LEFT HANDLE
(Superseded to 25-6041)

$

$

Not available

29

Toro 6-0450

Grip Handle
(Superseded to 74-1380)

$

$

Not available

31

Toro 3215143

Klip Ring

$

$

Currently unavailable

32

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

33

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

34

Toro 39-7120

CHUTE DECAL
(Superseded to 63-3510)

$4.99

$

Usually ships in 3-6 days

0

35

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

36

Toro 40-8230

GRIP-CONTROL, CHUTE

$14.99

$

Usually ships in 3-6 days

0

37

Toro 17-5750

CHUTE CONTROL ROD

$

$

Not available

38

Toro 256-249

Bushing
(Superseded to 5979)

$3.49

$

In Stock, Qty 10

0

39

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

40

Toro 8-6409

Chute Control Rod Mounting (Incl. Ref. #34 & 38)

$

$

Not available

41

Toro 17-5630

CONICAL SPRING

$

$

Not available

42

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 14

0

43

Toro 3290-238

WASHER-LOCK

$3.49

$

Usually ships in 3-6 days

0

44

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

45

Toro 11-7110

WORM BRACKET
(Superseded to 117110-01)

$

$

Not available

46

Toro 3290-212

WASHER-SPRING

$3.99

$

Usually ships in 3-6 days

0

47

Toro 8-8600

GEAR-WORM, CHUTE

$134.99

$

Usually ships in 3-6 days

0

48

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

49

Toro 3-6715

WASHER

$

$

Not available

50

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

51

Toro 40-4180

TOGGLE

$47.99

$

Usually ships in 3-6 days

0

52

Toro 3290-398

Retained Nut
(Superseded to 3290-433)

$

$

Not available

53

Toro 40-8430

HANDLE RIGHT

$

$

Not available

54

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

55

Toro 283-1

PIN-CLEVIS

$2.49

$

Usually ships in 3-6 days

0

56

Toro 20-1980

SPEED SELECTOR ROD

$

$

Not available

57

Toro 237-89

GROMMET-RUBBER

$3.49

$

In Stock, only 4 left!

0

58

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

59

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

60

Toro 20-2020

SHIFT LEVER WA

$

$

Not available

61

Toro 20-2010

SHIFT BRACKET

$

$

Not available

62

Toro 20-1970

TRACTION CONTROL ROD

$

$

Not available

63

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

64

Toro 40-8630

WIRE HARNESS INTERLOC

$

$

Not available

65

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

66

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

67

Toro 3290-213

7/16 SPRING WASHER

$

$

Not available

68

Toro 11-8140

SHOULDER SCREW

$

$

Not available

69

Toro 20-1910

PIVOT ROD

$

$

Not available

70

Toro 28-5660

SHIFT LEVER SPACER

$

$

Not available

71

Toro 20-1920

LEVER WA

$56.99

$

Usually ships in 3-6 days

0

72

Toro 37-0450

ESCUTCHEON DECAL

$

$

Not available

73

Toro 28-5670

AUGER LEVER SPACER

$

$

Not available

74

Toro 25-9760

ESCUTCHEON SUPT STRAP

$

$

Not available
