38085 (824) - Toro 24" Snow Thrower (SN: 001000001 - 001999999) (1981) HANDLE ASSEMBLY Parts Diagram

24" Snow Thrower

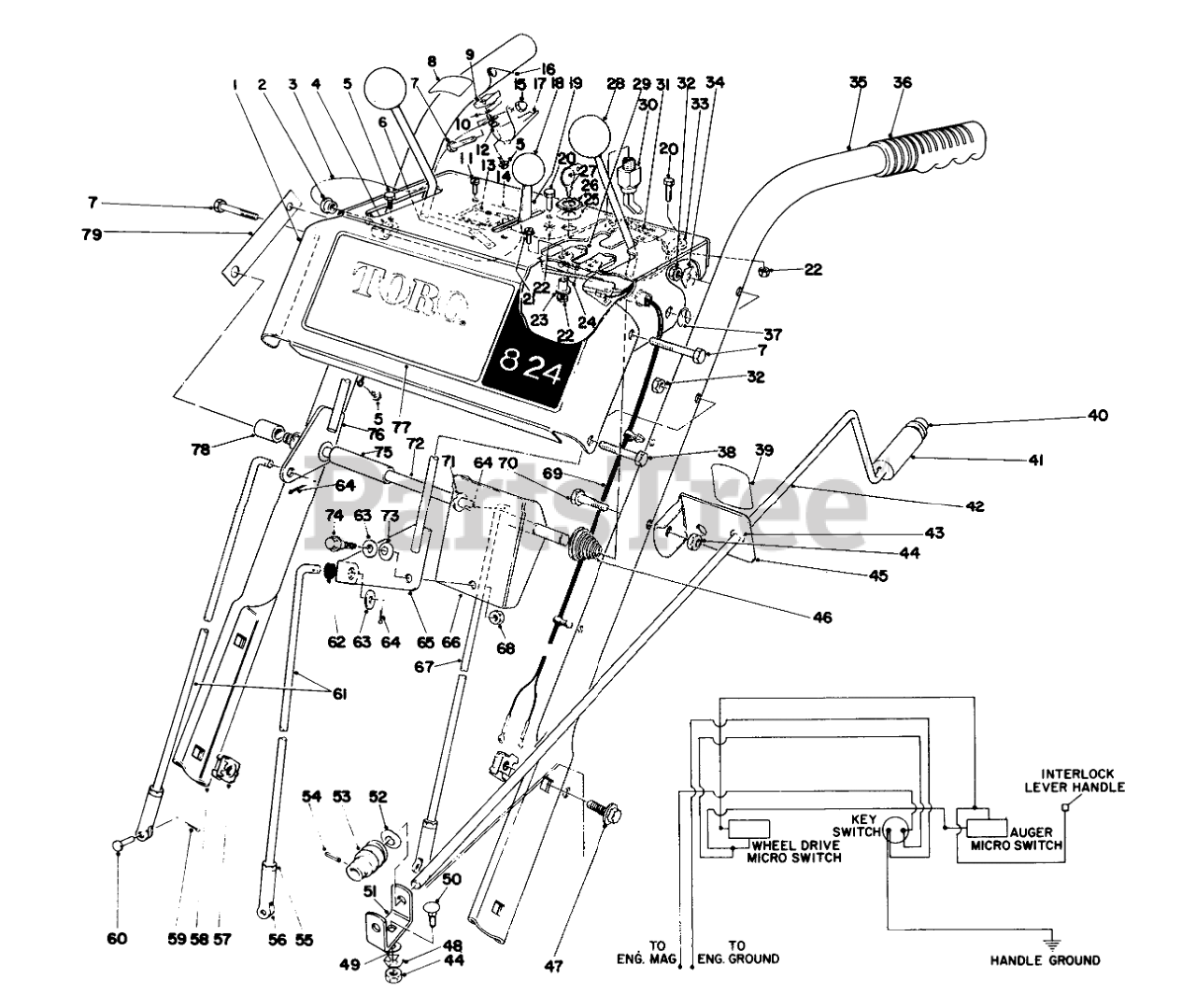

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 23-2350

Escutcheon
(Superseded to 40-8470)

$

$

Not available

2

Toro 2410-33

Snap Bushing

$

$

Not available

3

Toro 39-1670

Wire Assembly

$

$

Not available

4

Toro 20-2810

PLASTIC CLIP

$

$

Not available

5

Toro 33-2270

SCREW

$

$

Not available

6

Toro 3290-354

NUT-SPEED

$10.99

$

Usually ships in 3-6 days

0

7

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 39-7150

INTERLOCK DECAL

$

$

Not available

9

Toro 17-5680

Insulator

$

$

Not available

10

Toro 17-5690

INTERLOCK CONTACT

$38.99

$

Usually ships in 3-6 days

0

11

Toro 3290-313

SCREW-SPH

$7.49

$

Usually ships in 3-6 days

0

12

Toro 17-5700

WASHER INSULATOR

$

$

Not available

13

Toro 39-1690

MICRO SWITCH

$

$

Not available

14

Toro 22-7950

SWITCH MTG PAD

$

$

Not available

15

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

16

Toro 17-5720

INTERLOCK SPRING

$

$

Not available

17

Toro 27-0450

SAFETY INTRLOCK LEVER

$

$

Not available

18

Toro 233-36

CONTROL KNOB

$

$

Not available

19

Toro 40-8480

THROTTLE CONTROL

$

$

Not available

20

Toro 32140-99

HEX HEAD SEMS 10-24X1/2

$

$

Not available

21

Toro 3251-4

SCREW-SRH

$0.99

$

In Stock, only 2 left!

0

22

Toro 32146-18

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

23

Toro 22-9740

INTERLOCK SPACER

$9.99

$

Usually ships in 3-6 days

0

24

Toro 22-9730

INTERLOCK SPRING

$15.99

$

Usually ships in 3-6 days

0

25

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 2 left!

0

26

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

27

Toro 33-2010

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 1 left!

0

28

Toro 233-21

KNOB

$13.99

$

Usually ships in 3-6 days

0

29

Toro 22-9750

Slide Interlock
(Superseded to 22-9751)

$8.49

$

Usually ships in 3-6 days

0

30

Toro 29-5560

SWITCH-ON / OFF

$17.99

$

In Stock, only 2 left!

0

31

Toro 39-7130

INSTRUCTION DECAL

$

$

Not available

32

Toro 321524

Nut

$

$

Currently unavailable

33

Toro 2412-51

CABLE CLAMP

$

$

Not available

34

Toro 3290-257

Washer

$

$

Not available

35

Toro 25-6040

LEFT HANDLE
(Superseded to 25-6041)

$

$

Not available

36

Toro 6-0450

Grip Handle
(Superseded to 74-1380)

$

$

Not available

37

Toro 32151-43

RING-CLIP

$9.99

$

Usually ships in 3-6 days

0

38

Toro 321-9

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

39

Toro 39-7120

CHUTE DECAL
(Superseded to 63-3510)

$5.99

$

Usually ships in 3-6 days

0

40

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

41

Toro 40-8230

GRIP-CONTROL, CHUTE

$16.99

$

Usually ships in 3-6 days

0

42

Toro 17-5750

CHUTE CONTROL ROD

$

$

Not available

43

Toro 256-249

Bushing
(Superseded to 5979)

$3.49

$

In Stock, Qty 9

0

44

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

45

Toro 8-6409

Chute Control Rod Mounting (Incl. Ref. #39 & 43)

$

$

Not available

46

Toro 17-5630

CONICAL SPRING

$

$

Not available

47

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 14

0

48

Toro 3290-238

WASHER-LOCK

$3.99

$

Usually ships in 3-6 days

0

49

Toro 3-6715

WASHER

$

$

Not available

50

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

51

Toro 11-7110

WORM BRACKET
(Superseded to 117110-01)

$

$

Not available

52

Toro 3290-212

WASHER-SPRING

$3.99

$

Usually ships in 3-6 days

0

53

Toro 8-8600

GEAR-WORM, CHUTE

$137.99

$

Usually ships in 3-6 days

0

54

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

55

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

56

Toro 40-8180

CLEVIS
(Superseded to 39-4640)

$62.99

$

Usually ships in 3-6 days

0

57

Toro 3290-398

Retained Nut
(Superseded to 3290-433)

$

$

Not available

58

Toro 25-6030

RIGHT HANDLE

$

$

Not available

59

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

60

Toro 283-1

PIN-CLEVIS

$2.49

$

Usually ships in 3-6 days

0

61

Toro 20-1980

SPEED SELECTOR ROD

$

$

Not available

62

Toro 237-89

GROMMET-RUBBER

$3.49

$

In Stock, only 4 left!

0

63

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

64

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

65

Toro 20-2020

SHIFT LEVER WA

$

$

Not available

66

Toro 20-2010

SHIFT BRACKET

$

$

Not available

67

Toro 20-1970

TRACTION CONTROL ROD

$

$

Not available

68

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

69

Toro 39-1660

Wire Harness Interlock

$

$

Not available

70

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

71

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

72

Toro 20-1910

PIVOT ROD

$

$

Not available

73

Toro 3290-213

7/16 SPRING WASHER

$

$

Not available

74

Toro 11-8140

SHOULDER SCREW

$

$

Not available

75

Toro 28-5660

SHIFT LEVER SPACER

$

$

Not available

76

Toro 20-1920

LEVER WA

$64.99

$

Usually ships in 3-6 days

0

77

Toro 37-0450

ESCUTCHEON DECAL

$

$

Not available

78

Toro 28-5670

AUGER LEVER SPACER

$

$

Not available

79

Toro 25-9760

ESCUTCHEON SUPT STRAP

$

$

Not available
