38085 (824) - Toro 24" Snow Thrower (SN: 000000001 - 000999999) (1990) HANDLE ASSEMBLY Parts Diagram

24" Snow Thrower

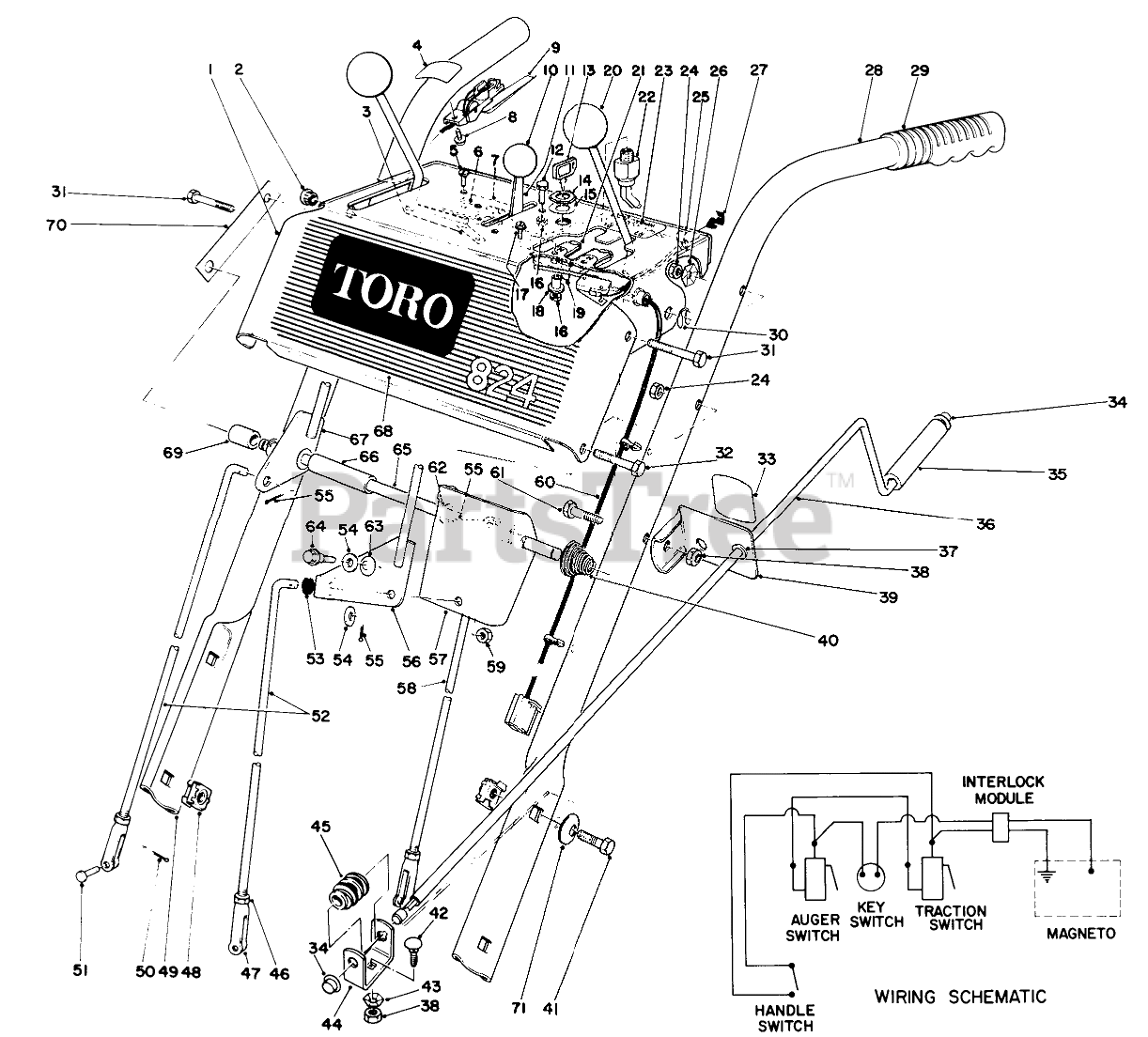

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 40-8470

ESCUTCHEON PLT B

$

$

Not available

2

Toro 237-130

BUSHING NYLON

$

$

Not available

3

Toro 3290-354

NUT-SPEED

$10.99

$

Usually ships in 3-6 days

0

4

Toro 39-7150

INTERLOCK DECAL

$

$

Not available

5

Toro 3290-313

SCREW-SPH

$7.49

$

Usually ships in 3-6 days

0

6

Toro 40-8200

SWITCH-MICRO

$32.99

$

In Stock, only 3 left!

0

7

Toro 22-7950

SWITCH MTG PAD

$

$

Not available

8

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

9

Toro 40-9690

INTERLOCK HDLE SWITCH
(Superseded to 131-4830)

$54.99

$

In Stock, only 1 left!

0

10

Toro 233-36

CONTROL KNOB

$

$

Not available

11

Toro 40-8480

THROTTLE CONTROL

$

$

Not available

12

Toro 32140-99

HEX HEAD SEMS 10-24X1/2

$

$

Not available

13

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0

14

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

15

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 2 left!

0

16

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 3251-5

10-24 X 7/8 RND HD MS

$

$

Not available

18

Toro 22-9740

INTERLOCK SPACER

$9.99

$

Usually ships in 3-6 days

0

19

Toro 22-9730

INTERLOCK SPRING

$15.99

$

Usually ships in 3-6 days

0

20

$13.99

$

Usually ships in 3-6 days

0

21

Toro 22-9751

INTERLOCK SLIDE

$8.49

$

Usually ships in 3-6 days

0

22

Toro 40-8240

Key Switch
(Superseded to 40-8241)

$33.99

$

In Stock, only 1 left!

0

23

Toro 39-7130

INSTRUCTION DECAL

$

$

Not available

24

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 2 left!

0

25

Toro 43-7450

WIRE CLAMP

$

$

Not available

26

Toro 3290-257

Washer

$

$

Not available

27

Toro 43-7460

Mounting Stud

$

$

Not available

28

Toro 25-6040

LEFT HANDLE
(Superseded to 25-6041)

$

$

Not available

29

Toro 6-0450

Grip Handle
(Superseded to 74-1380)

$

$

Not available

30

Toro 32151-43

RING-CLIP

$9.99

$

Usually ships in 3-6 days

0

31

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

32

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 4 left!

0

33

Toro 63-3510

DECAL-CHUTE DIRECTION

$5.99

$

Usually ships in 3-6 days

0

34

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

35

Toro 66-6540

Grip-Rod
(Superseded to 40-8230)

$16.99

$

Usually ships in 3-6 days

0

36

Toro 40-8380

CHUTE CONTROL ROD

$

$

Not available

37

Toro 256-249

Bushing
(Superseded to 5979)

$3.49

$

In Stock, Qty 8

0

38

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

39

Toro 12-7739

Chute Control Rod Mounting (Incl. Ref. #34 & 37)

$

$

Not available

40

Toro 17-5630

CONICAL SPRING

$

$

Not available

41

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

42

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

43

Toro 3290-238

WASHER-LOCK

$3.99

$

Usually ships in 3-6 days

0

44

Toro 40-8280

BRACKET-WORM

$18.99

$

In Stock, only 1 left!

0

45

Toro 40-8250

GEAR-WORM, CHUTE

$15.99

$

Usually ships in 3-6 days

0

46

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

47

Toro 40-8180

CLEVIS
(Superseded to 39-4640)

$62.99

$

Usually ships in 3-6 days

0

48

Toro 3290-433

RETAINER NUT

$

$

Not available

49

Toro 40-8430

HANDLE RIGHT

$

$

Not available

50

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

51

Toro 283-1

PIN-CLEVIS

$2.49

$

Usually ships in 3-6 days

0

52

Toro 20-1980

SPEED SELECTOR ROD

$

$

Not available

53

Toro 237-89

GROMMET-RUBBER

$3.49

$

In Stock, only 4 left!

0

54

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

55

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

56

Toro 20-2020

SHIFT LEVER WA

$

$

Not available

57

Toro 20-2010

SHIFT BRACKET

$

$

Not available

58

Toro 20-1970

TRACTION CONTROL ROD

$

$

Not available

59

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

60

Toro 40-8630

WIRE HARNESS INTERLOC

$

$

Not available

61

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

62

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

63

Toro 3290-213

7/16 SPRING WASHER

$

$

Not available

64

Toro 11-8140

SHOULDER SCREW

$

$

Not available

65

Toro 20-1910

PIVOT ROD

$

$

Not available

66

Toro 28-5660

SHIFT LEVER SPACER

$

$

Not available

67

Toro 20-1920

LEVER WA

$64.99

$

Usually ships in 3-6 days

0

68

Toro 66-6580

DECAL - ESCUTCHEON 824

$

$

Not available

69

Toro 28-5670

AUGER LEVER SPACER

$

$

Not available

70

Toro 25-9760

ESCUTCHEON SUPT STRAP

$

$

Not available

71

Toro 3290-461

WASHER-SPRING

$5.49

$

In Stock, only 2 left!

0

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0
