38084 (824 XL) - Toro 24" Power Throw Snow Thrower (SN: 089000001 - 089999999) (1998) AUGER AND HOUSING ASSEMBLY Parts Diagram

24" Power Throw Snow Thrower

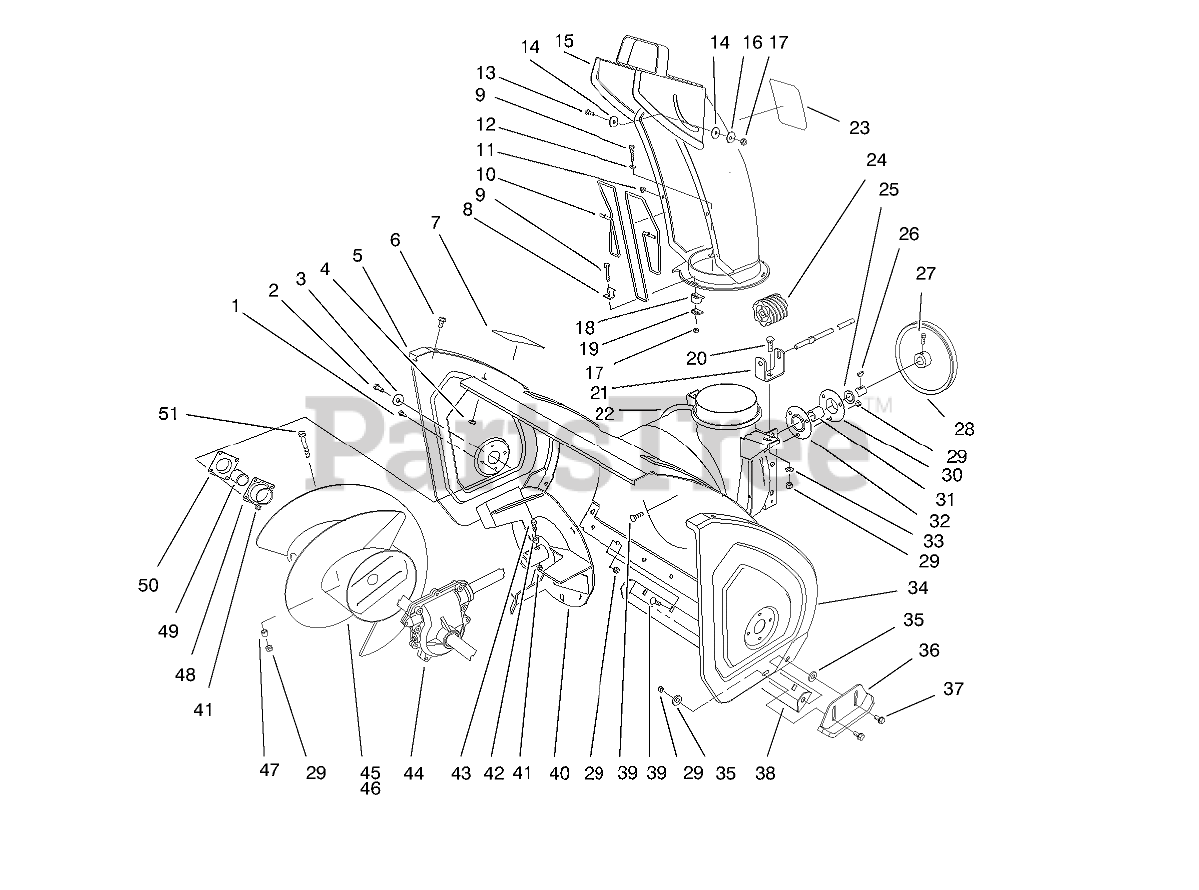

AUGER AND HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

3

Toro 3-0750

WASHER

$9.49

$

In Stock, only 2 left!

0

4

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0

5

Toro 66-7821

Plate-Side
(Superseded to 66-7821-01)

$193.99

$

Usually ships in 3-6 days

0

6

Toro 3234-28

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

7

Toro 53-7670

Decal-Warning (Only On: 38083)
(Superseded to 94-2568)

$8.49

$

In Stock, only 3 left!

0

7

Toro 94-2568

Decal-Warning (Only On: 38084)

$8.49

$

In Stock, only 3 left!

0

8

Toro 63-3130

CLIP-GUARD, CHUTE

$1.99

$

In Stock, Qty 20+

0

9

Toro 3274-13

SCREW-HSH

$3.49

$

In Stock, Qty 20+

0

10

Toro 63-3020

GUARD-CHUTE

$44.99

$

Usually ships in 3-6 days

0

11

Toro 3290-326

NUT-PUSH

$4.99

$

Usually ships in 3-6 days

0

12

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

$2.49

$

Usually ships in 3-6 days

0

14

Toro 63-2900

WASHER-PLASTIC

$1.49

$

In Stock, only 3 left!

0

15

Toro 95-2661

ASM-Chute (Only On: 38083)

$

$

Not available

15

Toro 95-2662

ASM-Chute (Only On: 38084)

$

$

Not available

16

Toro 3256-61

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

17

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 62-1430

RETAINER-CHUTE

$2.99

$

In Stock, Qty 14

0

19

Toro 63-2670

PLATE-RETAINER, CHUTE

$1.99

$

In Stock, Qty 20+

0

20

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

21

Toro 63-2180

BRACKET-WORM, CHUTE

$20.99

$

Usually ships in 3-6 days

0

22

Toro 95-2663

ASM-Housing (Only On: 38083)

$

$

Not available

22

Toro 95-2664

ASM-Housing (Only On: 38084)

$

$

Not available

23

Toro 94-2558

Decal-Danger (Only On: 38084)

$42.99

$

In Stock, only 1 left!

0

23

Toro 94-8079

Decal-Danger (Only On: 38083)

$10.99

$

Usually ships in 3-6 days

0

24

Toro 62-0820

GEAR-WORM

$

$

Not available

25

Toro 252-80

WASHER-THRUST

$8.99

$

In Stock, Qty 9

0

26

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, Qty 7

0

27

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, only 2 left!

0

28

Toro 62-1300

PULLEY-IMPELLER
(Superseded to 136-7119)

$50.99

$

In Stock, only 1 left!

0

29

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

30

Toro 26-6110

FLANGE-CUP, BEARING

$6.49

$

In Stock, Qty 17

0

31

Toro 63-3450

BEARING-BALL

$22.99

$

In Stock, Qty 18

0

32

Toro 26-6120

FLANGE-CUP, BEARING

$4.49

$

In Stock, Qty 16

0

33

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

34

Toro 66-7831

Plate-Side
(Superseded to 66-7831-01)

$193.99

$

Usually ships in 3-6 days

0

35

Toro 52-2861

WASHER

$1.49

$

In Stock, Qty 18

0

36

Toro 74-1440

Skid
(Superseded to 74-1440-01)

$43.99

$

In Stock, only 2 left!

0

37

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 18

0

38

Toro 66-7762

Blade-Scraper
(Superseded to 66-7762-01)

$

$

Not available

39

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

40

Toro 66-7910

Impeller
(Superseded to 66-7910-03)

$

$

Not available

41

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

42

Toro 66-8010

SPACER

$4.99

$

In Stock, Qty 13

0

43

Toro 321-44

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

44

Toro 74-1560

AUGER GEARCASE ASM

$

$

Not available

45

Toro 63-2750

Auger-RH (Only On: 38083)
(Superseded to 63-2750-03)

$

$

Not available

45

Toro 68-7450

Auger-RH (Only On: 38084)
(Superseded to 68-7450-03)

$

$

Not available

46

Toro 63-2760

Auger-LH (Only On: 38083)
(Superseded to 63-2760-03)

$

$

Not available

46

Toro 68-7460

Auger-LH (Only On: 38084)
(Superseded to 68-7460-03)

$

$

Not available

47

Toro 25-5090

SPACER-HUB, AUGER

$10.99

$

In Stock, Qty 8

0

48

Toro 20-0990

BEARING-FLANGE, FRONT

$11.99

$

In Stock, only 2 left!

0

49

Toro 20-0980

BEARING

$22.99

$

In Stock, Qty 7

0

50

Toro 20-1000

BEARING-FLANGE, REAR

$11.99

$

In Stock, only 2 left!

0

51

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$1.99

$

In Stock, Qty 14
