38083 (824 XL) - Toro 24" Power Throw Snow Thrower (SN: 089000001 - 089999999) (1998) RECOIL STARTER #590749 (OPTIONAL) Parts Diagram

24" Power Throw Snow Thrower

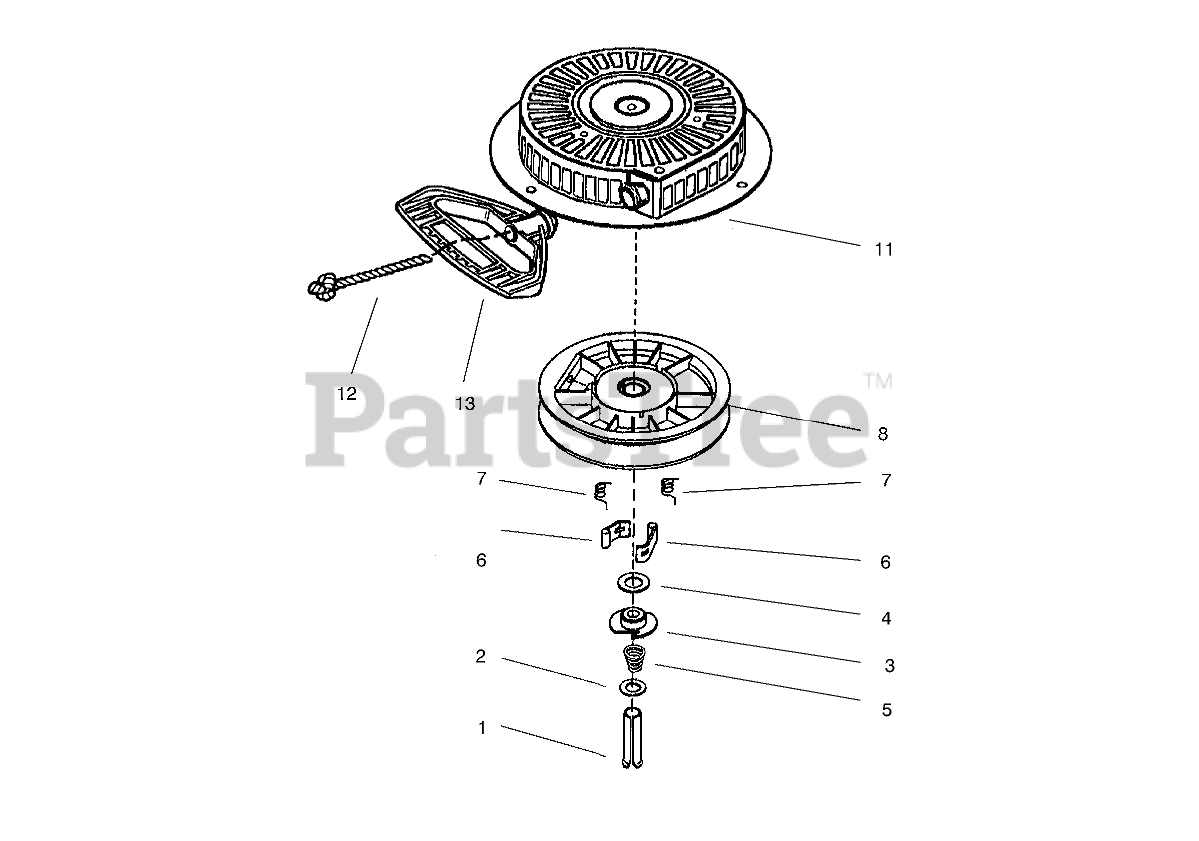

RECOIL STARTER #590749 (OPTIONAL) Parts Diagram

  • Title
1

Tecumseh 590599A

Pin-Spring (Incl. Ref. #4)

$5.49

$

In Stock, only 2 left!

0

2

$1.99

$

In Stock, only 4 left!

0

3

Tecumseh 590679

Retainer

$3.99

$

Usually ships in 3-12 days

0

4

$1.99

$

In Stock, only 4 left!

0

5

Tecumseh 590678

Spring-Brake

$3.49

$

Usually ships in 3-12 days

0

6

Tecumseh 590680

Dog-Starter

$5.99

$

In Stock, Qty 6

0

7

Tecumseh 590412

Spring-Dog

$8.49

$

In Stock, only 2 left!

0

8

Tecumseh 590682

Pulley and Rewind Spring ASM

$

$

Not available

11

Tecumseh 590750

Starter Housing ASM
(Superseded to 590750B)

$

$

Not available

12

Tecumseh 590535

Rope-Starter (98 cut to length)

$9.49

$

In Stock, Qty 13

0

3

Tecumseh 590574

Handle-Starter, Mitten Grip

Note: Not Included with Starter

$5.49

$

Usually ships in 3-12 days

0
