38080 (824) - Toro 24" Snow Thrower (SN: 039000001 - 039999999) (1993) CARBURETOR NO. 632334A Parts Diagram

24" Snow Thrower

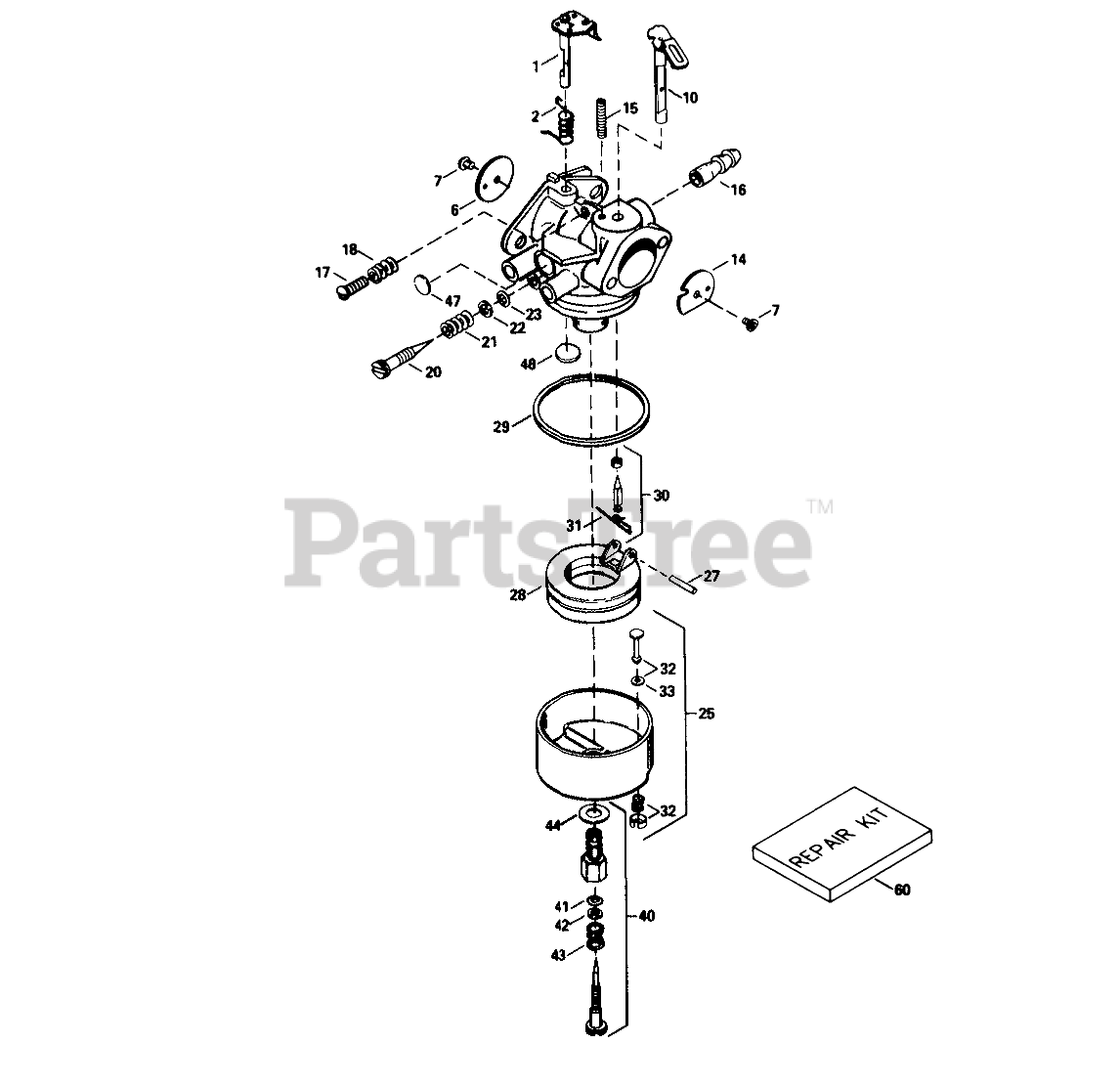

CARBURETOR NO. 632334A Parts Diagram

  • Title

1

Tecumseh 631776A

Throttle Shaft and Lever ASM

$16.99

$

Usually ships in 3-12 days

0

2

Tecumseh 631970

Spring-Return, Throttle

$4.49

$

In Stock, only 1 left!

0

6

Tecumseh 631778

Shutter-Throttle

$1.99

$

In Stock, only 3 left!

0

7

Tecumseh 650506

Screw-Shutter

$1.49

$

In Stock, Qty 13

0

10

Tecumseh 632112

Choke Shaft and Lever ASM

$7.49

$

Usually ships in 3-12 days

0

14

Tecumseh 632174

Shutter-Choke

$4.49

$

Usually ships in 3-12 days

0

15

Tecumseh 630735

Spring-Positioning, Choke

$1.99

$

In Stock, Qty 14

0

16

Tecumseh 632164

Fitting-Fuel

$3.99

$

Usually ships in 3-12 days

0

17

Tecumseh 650417

Screw-Throttle Crack Screw / Idle Speed
(Superseded to 651025)

$1.99

$

In Stock, only 3 left!

0

18

Tecumseh 630766

Spring-Tension

$1.99

$

In Stock, Qty 20+

0

20

Tecumseh 632281

Screw-Idle Mix

$3.99

$

In Stock, only 4 left!

0

21

Tecumseh 630766

Spring-Tension

$1.99

$

In Stock, Qty 20+

0

22

Tecumseh 630739

Washer

$1.99

$

In Stock, Qty 20+

0

23

Tecumseh 630740

"O"Ring

Note: Included in Carburetor Repair Kit Ref. Num 60

$2.49

$

In Stock, Qty 20+

0

25

Tecumseh 631951

Bowl-Float (Incl. Ref. #32, & 33)

$17.99

$

In Stock, only 4 left!

0

27

Tecumseh 631024

Shaft-Float

Note: Included in Carburetor Repair Kit Ref. Num 60

$1.99

$

In Stock, Qty 9

0

28

Tecumseh 632019

Float
(Superseded to 632019A)

$7.49

$

In Stock, Qty 20+

0

29

Tecumseh 631028

O Ring-Bowl, Float
(Superseded to 631028A)

Note: Included in Carburetor Repair Kit Ref. Num 60

$2.49

$

In Stock, Qty 20+

0

30

Tecumseh 631021

Inlet Needle-Seat & Spring Clip (Incl. Ref. #31)
(Superseded to 631021B)

Note: Included in Carburetor Repair Kit Ref. Num 60

$6.99

$

In Stock, Qty 20+

0

31

Tecumseh 631022

Clip-Spring

$1.99

$

In Stock, only 2 left!

0

32

Tecumseh 27136A

Bowl Drain Assembly (Incl. Ref. #33)

$7.49

$

In Stock, Qty 10

0

33

Tecumseh 27554

Gasket-Plunger, Drain

$1.49

$

In Stock, Qty 14

0

40

Tecumseh 632239

Mian Adj. Screw Asm.

$

$

Not available

41

Tecumseh 630740

"O"Ring

Note: Included in Carburetor Repair Kit Ref. Num 60

$2.49

$

In Stock, Qty 20+

0

42

Tecumseh 630739

Washer

$1.99

$

In Stock, Qty 20+

0

43

Tecumseh 630738

Spring

$1.99

$

In Stock, Qty 6

0

44

Tecumseh 27110

Washer-Bowl Nut
(Superseded to 27110A)

Note: Included in Carburetor Repair Kit Ref. Num 60

$2.49

$

In Stock, Qty 20+

0

47

Tecumseh 630748

Plug-Welch, Idle Mixture Well

Note: Included in Carburetor Repair Kit Ref. Num 60

$1.99

$

In Stock, Qty 20+

0

48

Tecumseh 631027

Plug-Welch, Atmospheric Vent

Note: Included in Carburetor Repair Kit Ref. Num 60

$1.99

$

In Stock, Qty 20+

0

60

Tecumseh 632347

Kit-Repair

$

$

Not available
