38080 (824) - Toro 24" Snow Thrower (SN: 010000001 - 019999999) (1991) ENGINE TECUMSEH MODEL NO. HM80-155291 P Parts Diagram

24" Snow Thrower

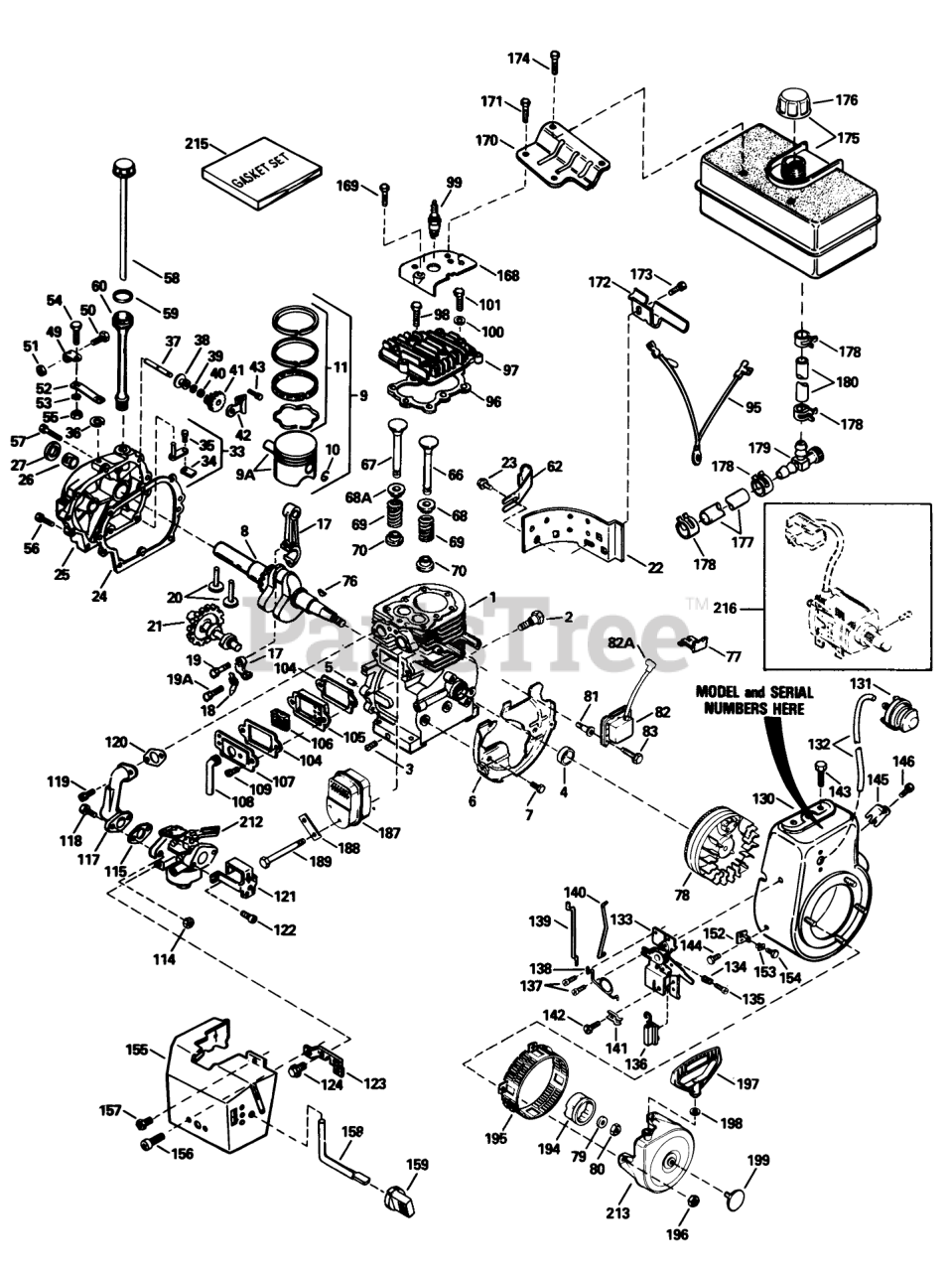

ENGINE TECUMSEH MODEL NO. HM80-155291 P Parts Diagram

  • Title

1

Tecumseh 35385

Cylinder (Incl. Ref. #3-5)

$311.99

$

Usually ships in 3-12 days

0

2

Tecumseh 650820

Screw (1/4-20x1/2)

$3.99

$

In Stock, Qty 15

0

3

Tecumseh 27624

Plug-Pipe
(Superseded to 28495)

$

$

Currently unavailable

4

Tecumseh 35319

Seal-Oil

$4.99

$

In Stock, only 2 left!

0

5

Tecumseh 27652

Pin-Dowel

$2.49

$

Usually ships in 3-12 days

0

6

Tecumseh 35326

Baffle-Blower Housing
(Superseded to 37853)

$11.99

$

In Stock, only 1 left!

0

7

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

8

Tecumseh 35372

Crankshaft
(Superseded to 35372A)

$166.99

$

Usually ships in 3-12 days

0

9

Tecumseh 34552

Piston, Pin & Ring Assembly (Incl. Ref. #9A, 10 & 11) Std.
(Superseded to 40049)

$

$

Not available

9

Tecumseh 34553

Piston, Pin & Ring Assembly (Incl. Ref. #9A, 10 & 11 (.010 oversize)
(Superseded to 40012)

$

$

Not available

9

Tecumseh 34554

Piston, Pin & Ring Assembly (Incl. Ref. #9A, 10 & 11 (.020 oversize)

$

$

Not available

9A

Tecumseh 34329A

Piston & Pin Assembly (Incl. Ref. #10 Std.)
(Superseded to 40049)

$

$

Not available

9A

Tecumseh 34330A

Piston & Pin Assembly (Incl. Ref. #10 .010 oversize)
(Superseded to 40012)

$

$

Not available

9A

Tecumseh 34331A

Piston & Pin Assembly (Incl. Ref. #10 .020 oversize)

$

$

Not available

10

Tecumseh 27888

Ring-Retaining, Piston Pin

$1.99

$

Usually ships in 3-12 days

0

11

Tecumseh 34432

Wire Ground

$3.49

$

Usually ships in 3-12 days

0

11

Tecumseh 34333

Ring Set (.010" OS)

$

$

Not available

11

Tecumseh 34334

Ring Set (.020" OS)

$38.99

$

In Stock, only 1 left!

0

17

Tecumseh 35373A

Rod Assembly Connecting (Incl. Ref. #18-19A)
(Superseded to 36897A)

$48.99

$

In Stock, only 1 left!

0

18

Tecumseh 35374

Dipper-Oil

$1.99

$

In Stock, only 4 left!

0

19

Tecumseh 650908

Bolt-Rod
(Superseded to 651063)

$1.99

$

In Stock, only 3 left!

0

19A

Tecumseh 650882

Bolt-Rod
(Superseded to 651033A)

$

$

Not available

20

Tecumseh 34034

Lifter-Valve
(Superseded to 34034A)

$10.99

$

In Stock, only 3 left!

0

21

Tecumseh 35375

Camshaft (MCR)

$

$

Not available

22

Tecumseh 33273A

Extension-Housing, Blower

$7.49

$

Usually ships in 3-12 days

0

23

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

24

Tecumseh 35262

Cylinder Cover Gasket
(Superseded to 37342)

$11.99

$

In Stock, only 2 left!

0

25

Tecumseh 35376

Cover Assembly-Cylinder (Incl. Ref. #26, 27, & 37)
(Superseded to 38027)

$

$

Not available

26

Tecumseh 35377

Bushing-Crankshaft

$11.99

$

In Stock, only 3 left!

0

27

Tecumseh 35319

Seal-Oil

$4.99

$

In Stock, only 2 left!

0

33

Tecumseh 30699C

Rod Assembly-Governor (Incl. Ref. #34 & 35)

$17.99

$

In Stock, only 1 left!

0

34

Tecumseh 30700

Yoke-Governor

$1.99

$

In Stock, only 1 left!

0

35

Tecumseh 650494

Screw (6-40x5/16)

$1.99

$

Usually ships in 3-12 days

0

36

Tecumseh 29642

Ring-Retaining

$100.99

$

In Stock, only 2 left!

0

37

Tecumseh 31845

Shaft-Governor
(Superseded to 37587)

$

$

Not available

38

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, only 4 left!

0

39

Tecumseh 35479

Washer
(Superseded to 651080)

$1.99

$

In Stock, Qty 8

0

40

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, only 4 left!

0

41

Tecumseh 35378

Gear-Governor (Incl. Ref. #39)

$3.99

$

Usually ships in 3-12 days

0

42

Tecumseh 33369

Bracket-Governor (Incl. Ref. #39)

$8.49

$

In Stock, only 1 left!

0

43

Tecumseh 650836

Screw (10-24x1/2)
(Superseded to 650965)

$

$

Not available

49

Tecumseh 29916

Clamp-Lever, Governor

$1.99

$

In Stock, only 2 left!

0

50

Tecumseh 29826

Screw

$1.99

$

In Stock, only 4 left!

0

51

Tecumseh 29216

Nut-Lock

$1.99

$

In Stock, only 3 left!

0

52

Tecumseh 33454

Lever-Governor
(Superseded to 33454A)

$10.99

$

In Stock, only 1 left!

0

53

Tecumseh 29918

Washer-Lock

$1.99

$

In Stock, Qty 5

0

54

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 9

0

55

Tecumseh 30322

Nut-Lock

$1.99

$

Usually ships in 3-12 days

0

56

Tecumseh 650832

Screw (1/4-20x1-11/16)

$

$

Not available

57

Tecumseh 650833

Screw (1/4-20x1-3/16)

$1.99

$

Usually ships in 3-12 days

0

58

Tecumseh 35555

Dipstick
(Superseded to 36205)

$10.99

$

In Stock, only 1 left!

0

59

Tecumseh 35499

O-Ring

$1.49

$

In Stock, only 3 left!

0

60

Tecumseh 35554

Tube-Fill, Oil

$19.99

$

In Stock, only 1 left!

0

62

Tecumseh 35540

Clip-Tube, Fill

$1.99

$

In Stock, only 2 left!

0

66

Tecumseh 27878A

Valve-Exhaust (Incl. Ref. #70 Std.)

$23.99

$

Usually ships in 3-12 days

0

66

Tecumseh 27880A

Valve-Exhaust (Incl.Ref. #70 1/32" oversize)

$

$

Not available

67

Tecumseh 34035

Valve-Intake (Incl. Ref. #70 Std.)

$15.99

$

In Stock, only 1 left!

0

67

Tecumseh 34036

Valve-Intake (Incl. Ref. #70 1/32" oversize)

$

$

Not available

68

Tecumseh 27882

Cap-Spring, Valve

$1.99

$

In Stock, only 4 left!

0

68A

Tecumseh 34689

Seal-Intake Valve
(Superseded to 35862)

$9.49

$

Usually ships in 3-12 days

0

69

Tecumseh 27881

Spring-Valve

$3.99

$

In Stock, only 2 left!

0

70

Tecumseh 32581

Keeper-Spring, Valve

$6.49

$

In Stock, Qty 10

0

76

Tecumseh 32589

Key-Flywheel

$1.49

$

In Stock, Qty 6

0

77

Tecumseh 29443

Clip-Wire

$1.99

$

In Stock, Qty 5

0

78

Tecumseh 611091

Flywheel (W/Ring Gear)

$

$

Not available

79

Tecumseh 650880

Washer-Belleville

$1.99

$

In Stock, only 3 left!

0

80

Tecumseh 650881

Nut-Flywheel

$1.99

$

Usually ships in 3-12 days

0

81

Tecumseh 650872

Stud
(Superseded to 651024)

$3.99

$

In Stock, only 2 left!

0

82

Tecumseh 35135

Solid State ASM
(Superseded to 35135B)

$62.99

$

In Stock, only 1 left!

0

82A

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 3 left!

0

83

Tecumseh 650814

Screw
(Superseded to 651007)

$1.99

$

In Stock, only 4 left!

0

95

Tecumseh 35253

Ground Wire

$6.49

$

In Stock, only 2 left!

0

96

Tecumseh 34041A

Gasket-Cylinder Head
(Superseded to 34923A)

$7.99

$

Usually ships in 3-12 days

0

97

Tecumseh 34030

Head Cylinder
(Superseded to 34030B)

$

$

Not available

98

Tecumseh 6021A

Screw (5/16-18x1-1/2)

$1.99

$

In Stock, only 3 left!

0

99

Tecumseh 35395

Spark Plug-Resistor (R J19 L M)

$3.49

$

In Stock, Qty 16

0

100

Tecumseh 650691

Washer-Flat

$1.99

$

Usually ships in 3-12 days

0

101

Tecumseh 650727

Screw (5/16-18x1-25/32)

$3.99

$

In Stock, only 1 left!

0

104

Tecumseh 27896A

Gasket-Cover, Valve

$1.49

$

In Stock, Qty 8

0

105

Tecumseh 28423

Body-Breather

$13.99

$

In Stock, only 1 left!

0

106

Tecumseh 28424

Element-Breather

$3.99

$

In Stock, only 3 left!

0

107

Tecumseh 28425

Cover-Valve

$7.49

$

In Stock, only 1 left!

0

108

Tecumseh 35350

Tube-Breather

$6.49

$

Usually ships in 3-12 days

0

109

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

114

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, only 1 left!

0

115

Tecumseh 33263

Gasket-Carburetor To Intake Pipe

$1.49

$

In Stock, Qty 20+

0

117

Tecumseh 33877

Pipe-Intake

$48.99

$

Usually ships in 3-12 days

0

118

Tecumseh 30088A

Screw (1/4-28x1)

$1.99

$

In Stock, only 4 left!

0

119

Tecumseh 650378

Screw (T-30, 5/16-18x1-3/32)

$1.99

$

In Stock, only 3 left!

0

120

Tecumseh 27915A

Gasket-Pipe, Intake

$5.99

$

In Stock, Qty 19

0

121

Tecumseh 34587

Bracket-Choke
(Superseded to 34587B)

$9.49

$

In Stock, only 1 left!

0

122

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

$4.49

$

In Stock, only 3 left!

0

123

Tecumseh 33377

Bracket-Carburetor
(Superseded to 37659)

$

$

Not available

124

Tecumseh 650767

Screw (8-32x27/64)

$1.49

$

In Stock, only 4 left!

0

130

Toro 24822A

Housing-Blower

$

$

Currently unavailable

131

Tecumseh 570682

Primer-Asm
(Superseded to 570682A)

$10.99

$

In Stock, Qty 6

0

132

Tecumseh 32180C

Line-Primer

$6.99

$

In Stock, only 4 left!

0

133

Tecumseh 34664

Bracket-Control Assembly (Incl. Ref. #134-136 & 138)

$53.99

$

Usually ships in 3-12 days

0

134

Tecumseh 31342

Spring-Compression

$5.99

$

In Stock, only 1 left!

0

135

Tecumseh 650549

Screw
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

136

Tecumseh 610973

Terminal

$3.99

$

In Stock, Qty 5

0

137

Tecumseh 650821

Screw (10-32 x 1/2)

$1.99

$

In Stock, only 3 left!

0

138

Tecumseh 34663

Spring-Throttle

$1.99

$

In Stock, only 1 left!

0

139

Tecumseh 34667

Link-Governor

$1.99

$

Usually ships in 3-12 days

0

140

Tecumseh 33878

Link-Throttle

$6.99

$

In Stock, only 2 left!

0

141

Tecumseh 27793

Conduit

$1.99

$

In Stock, only 2 left!

0

142

Tecumseh 28942

Screw (10-32 x 3/8)

$1.49

$

In Stock, only 4 left!

0

143

Tecumseh 650788

Screw (5/16-18x3/4)

$1.99

$

In Stock, only 1 left!

0

144

Tecumseh 29747B

Screw

$1.99

$

In Stock, Qty 9

0

145

Tecumseh 33013

Screw

$3.99

$

Usually ships in 3-12 days

0

146

Tecumseh 650760

Screw (8-32 x 3/8)

$1.99

$

In Stock, only 3 left!

0

152

Toro 43126

Bracket, Grommet Mounting

$

$

Currently unavailable

153

Tecumseh 28545

Grommet

$1.99

$

In Stock, Qty 5

0

154

Tecumseh 650760

Screw (8-32 x 3/8)

$1.99

$

In Stock, only 3 left!

0

155

Tecumseh 35057A

Cover-Carburetor
(Superseded to 36547A)

$70.99

$

In Stock, only 1 left!

0

156

Tecumseh 28942

Screw (10-32 x 3/8)

$1.49

$

In Stock, only 4 left!

0

157

Tecumseh 650765

Screw (10-32x1/2)

$1.49

$

In Stock, only 4 left!

0

158

Tecumseh 34586

Rod-Choke

$5.49

$

In Stock, only 1 left!

0

159

Tecumseh 35438

Knob-Control

$3.99

$

In Stock, only 2 left!

0

168

Tecumseh 33272A

Cover-Cylinder Head
(Superseded to 33272D)

$7.49

$

Usually ships in 3-12 days

0

169

Tecumseh 650802

Screw (1/2-20x5/8)

$1.99

$

In Stock, Qty 5

0

170

Tecumseh 34154

Bracket-Tank, Fuel (Black)

$

$

Not available

171

Tecumseh 650713

Screw
(Superseded to 651055)

$1.99

$

In Stock, Qty 5

0

172

Tecumseh 34155

Bracket-Tank, Fuel

$

$

Not available

173

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

174

Tecumseh 650665

Screw (1/4-15x7/8)

$1.99

$

In Stock, only 3 left!

0

175

Tecumseh 34156A

Tank-Fuel (Incl. Ref. #176 & 178)

$54.99

$

Usually ships in 3-12 days

0

176

Tecumseh 35355

Cap-Fuel
(Superseded to 37845)

$8.99

$

In Stock, Qty 10

0

177

Tecumseh 30705

Line-Fuel

$16.99

$

In Stock, only 2 left!

0

178

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 20+

0

179

Tecumseh 32961

Valve-Shut Off
(Superseded to 35857)

$13.99

$

Usually ships in 3-12 days

0

180

Tecumseh 29774

Line-Fuel (8.62)

$34.99

$

In Stock, Qty 6

0

187

Tecumseh 35056

Muffler

$62.99

$

In Stock, only 2 left!

0

188

Tecumseh 31588

Plate-Locking

$4.99

$

In Stock, Qty 20+

0

189

Toro 792093

Screw

$

$

Currently unavailable

194

Tecumseh 35287

Cup-Starter
(Superseded to 35287A)

$10.99

$

Usually ships in 3-12 days

0

195

Tecumseh 35446

Screen-Starter

$7.49

$

In Stock, only 1 left!

0

196

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, only 1 left!

0

197

Tecumseh 590574

Handle-Starter, Mitten Grip

$5.49

$

In Stock, only 1 left!

0

198

Tecumseh 650168

Washer

$1.99

$

Usually ships in 3-12 days

0

199

Tecumseh 35392

Plug Starter

$1.99

$

Usually ships in 3-12 days

0

212

Tecumseh 632334A

Carburetor (Incl. Ref. #115)

$136.99

$

Usually ships in 3-12 days

0

213

Tecumseh 590630

Starter-Rewind
(Superseded to 590689B)

$108.99

$

In Stock, only 1 left!

0

215

Tecumseh 33279G

Gasket Set
(Superseded to 33279L)

$

$

Not available

216

Tecumseh 33329C

Electric Starter Kit. (Optional) Order as an Accessory
(Superseded to 33329E)

$

$

Not available
