38080 (824) - Toro 24" Snow Thrower (SN: 009000001 - 009999999) (1979) CARBURETOR NO. 632037 Parts Diagram

24" Snow Thrower

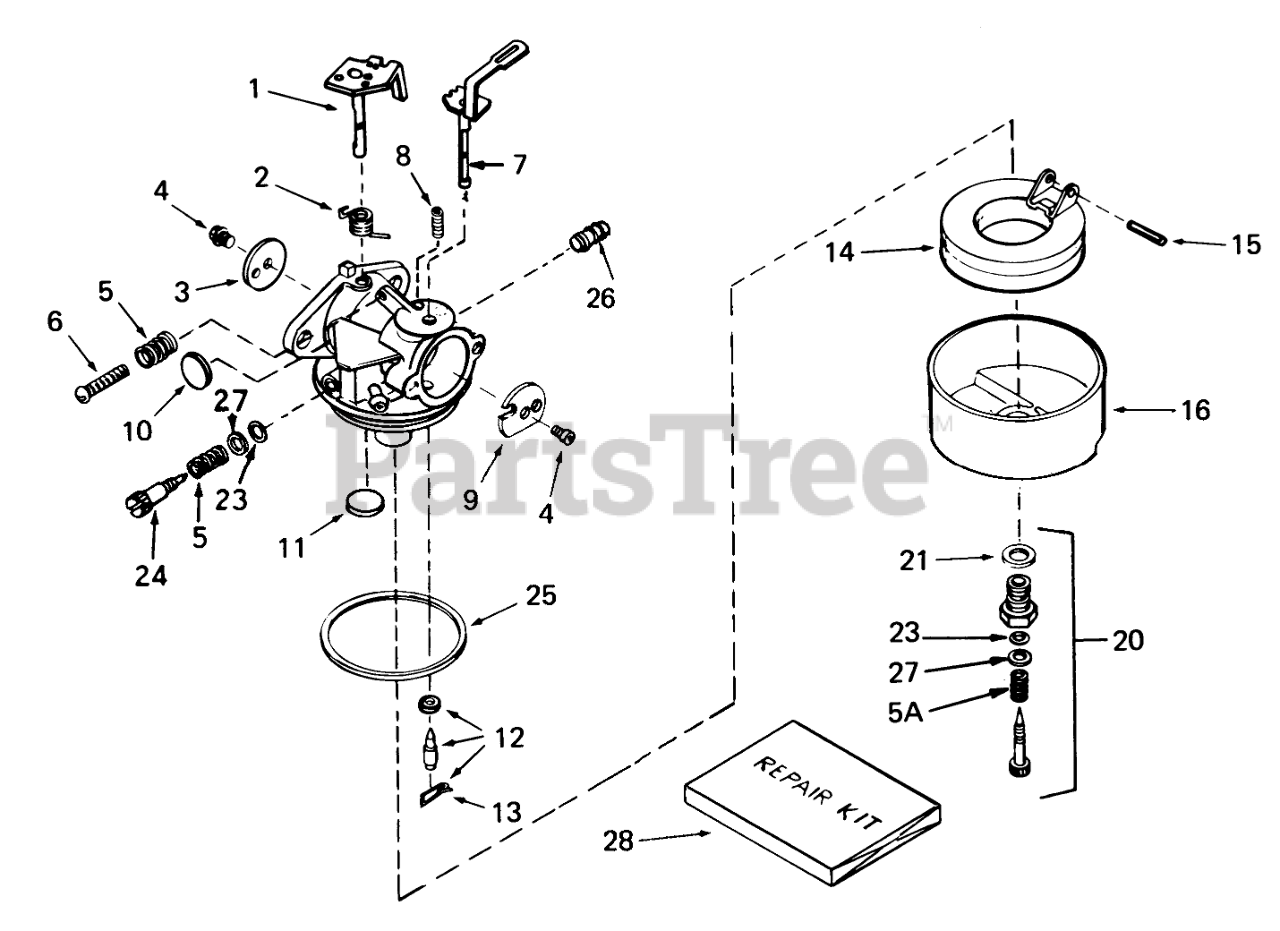

CARBURETOR NO. 632037 Parts Diagram

  • Title

1

Tecumseh 631776

Shaft/Lever-Throttle
(Superseded to 631776A)

$16.99

$

Usually ships in 3-12 days

0

2

Tecumseh 631777

Spring, Throttle Return
(Superseded to 631970)

$4.49

$

In Stock, only 1 left!

0

3

Tecumseh 631778

Shutter-Throttle

$1.99

$

In Stock, only 3 left!

0

4

Tecumseh 650506

Screw-Shutter

$1.49

$

In Stock, Qty 17

0

5

Tecumseh 630766

Spring-Tension

$1.99

$

In Stock, only 2 left!

0

5A

Tecumseh 630738

Spring

$1.99

$

In Stock, Qty 9

0

6

Tecumseh 650417

Screw-Throttle Crack Screw / Idle Speed
(Superseded to 651025)

$1.99

$

In Stock, Qty 5

0

7

Tecumseh 631910

Shaft & Lever Assy., Choke

$

$

Currently unavailable

8

Tecumseh 630735

Spring-Positioning, Choke

$1.99

$

In Stock, only 4 left!

0

9

Tecumseh 631753

Choke Shutter

$1.99

$

In Stock, only 4 left!

0

10

Tecumseh 630748

Plug-Welch, Idle Mixture Well

Note: Indciates items included in repair kit part no. 631978.

$1.99

$

In Stock, only 3 left!

0

11

Tecumseh 631027

Plug-Welch, Atmospheric Vent

Note: Indciates items included in repair kit part no. 631978.

$1.99

$

In Stock, only 3 left!

0

12

Tecumseh 631021

Inlet Needle, Seat & Clip Assy. (Incl. No. 13)
(Superseded to 631021B)

Note: Indciates items included in repair kit part no. 631978.

$6.99

$

In Stock, Qty 18

0

13

Tecumseh 631022

Clip-Spring

$1.99

$

In Stock, only 4 left!

0

14

Tecumseh 632019

Float
(Superseded to 632019A)

$7.49

$

In Stock, only 4 left!

0

15

Tecumseh 631024

Shaft-Float

Note: Indciates items included in repair kit part no. 631978.

$1.99

$

In Stock, Qty 12

0

16

Tecumseh 631867

Bowl-Float (no drain)

$3.49

$

In Stock, Qty 14

0

20

Tecumseh 631583

Adjustment Screw Assy., Main (Incl. Nos. 5A, 21, 23 & 27)

Note: Indciates items included in repair kit part no. 631978.

$14.99

$

Usually ships in 3-12 days

0

21

Tecumseh 27110

Washer-Bowl Nut
(Superseded to 27110A)

$2.49

$

In Stock, only 2 left!

0

23

Tecumseh 630740

"O"Ring

Note: Indciates items included in repair kit part no. 631978.

$2.49

$

In Stock, only 2 left!

0

24

Tecumseh 630898

Screw Main Adjustment

Note: Indciates items included in repair kit part no. 631978.

$2.49

$

In Stock, Qty 9

0

25

Tecumseh 631028

O Ring-Bowl, Float
(Superseded to 631028A)

Note: Indciates items included in repair kit part no. 631978.

$2.49

$

In Stock, Qty 5

0

26

Tecumseh 631803

Fuel Fitting
(Superseded to 632164)

$3.99

$

In Stock, only 1 left!

0

27

Tecumseh 630739

Washer

$1.99

$

In Stock, Qty 8

0

28

Tecumseh 631978

Repair Kit

$15.99

$

Usually ships in 3-12 days

0
