38080 (824) - Toro 24" Snow Thrower (SN: 009000001 - 009999999) (1979) AUGER ASSEMBLY Parts Diagram

24" Snow Thrower

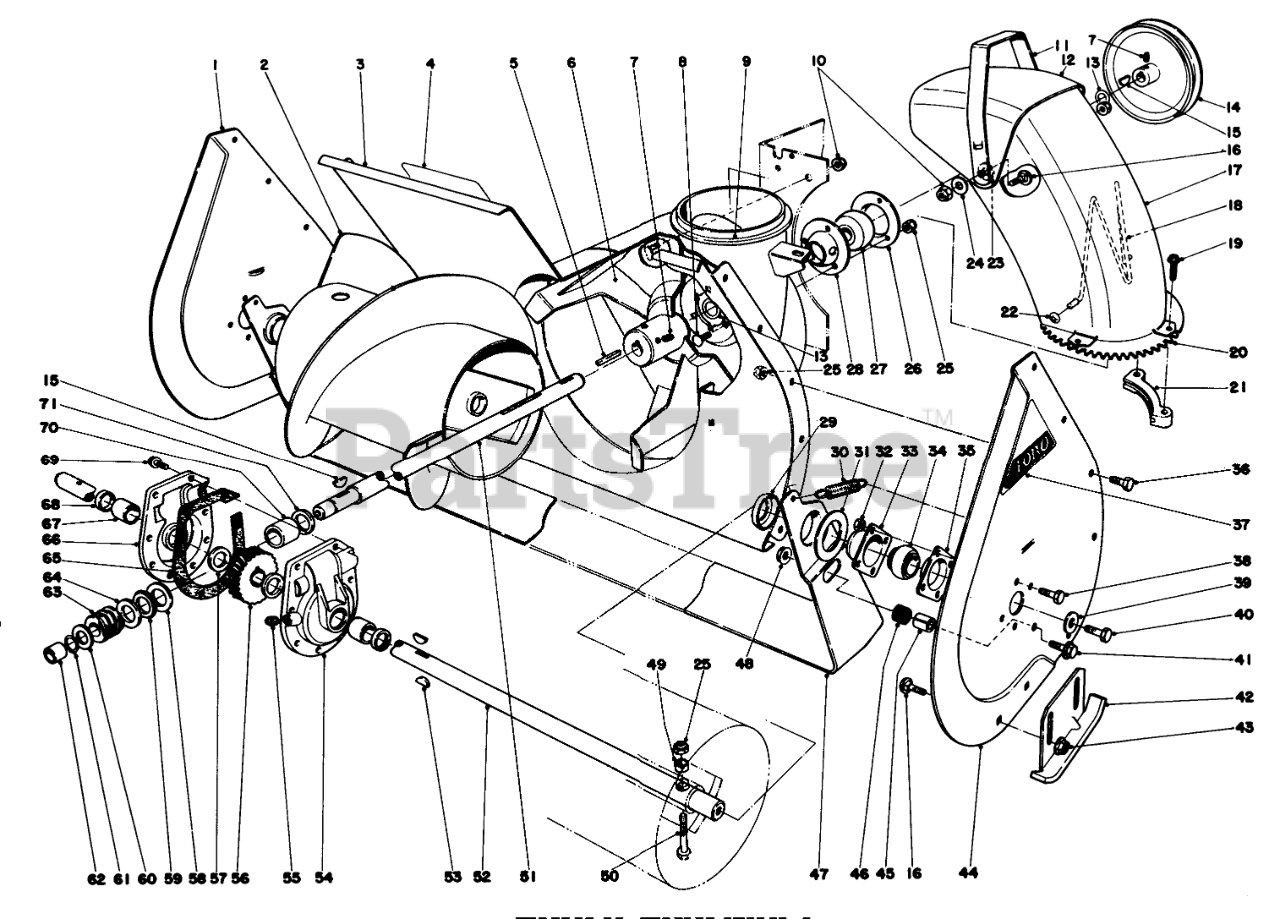

AUGER ASSEMBLY Parts Diagram

  • Title

1

Toro 20-1360

Side Plate Right
(Superseded to 43-7440)

$

$

Not available

2

Toro 26-6140

Auger Right
(Superseded to 26-6140-03)

$

$

Not available

Toro 26-6150

Auger Left
(Superseded to 26-6150-03)

Note: Not illustrated

$

$

Not available

3

Toro 264090

Auger Housing

$

$

Currently unavailable

4

Toro 29-6350

Decal-Warning
(Superseded to 54-9910)

$

$

Not available

5

Toro 6-8590

KEY

$12.99

$

Usually ships in 3-6 days

0

6

Toro 20-1260

IMPELLER WA RO

$793.99

$

Usually ships in 3-6 days

0

7

Toro 32424

Set Screw

$

$

Currently unavailable

8

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

9

Toro 17-5180

CHUTE RING

$

$

Not available

10

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

11

Toro 20-1410

DEFLECTOR HANDLE B

$85.99

$

In Stock, only 1 left!

0

12

Toro 20-1400

Chute Deflector
(Superseded to 11-9379)

$

$

Not available

13

Toro 3-0737

WASHER

$9.49

$

In Stock, only 3 left!

0

14

Toro 20-1310

IMPELLER PULLEY

$281.99

$

Usually ships in 3-6 days

0

15

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, Qty 7

0

16

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

17

Toro 20-1390

Chute
(Superseded to 56-2450)

$

$

Not available

18

Toro 12-2040

WIRE-CHUTE

$

$

Not available

19

Toro 27-0210

SPECIAL SCREW

$9.99

$

Usually ships in 3-6 days

0

20

Toro 20-1370

Chute Swivel Gear
(Superseded to 43-7470-03)

$

$

Not available

21

Toro 25-4140

Retainer Chute

$

$

Currently unavailable

22

Toro 3290-326

NUT-PUSH

$5.49

$

Usually ships in 3-6 days

0

23

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 8

0

24

Toro 3290-340

WASHER-BELLEVILLE

$7.99

$

In Stock, Qty 10

0

25

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

26

Toro 26-6120

FLANGE-CUP, BEARING

$4.49

$

In Stock, Qty 10

0

27

Toro 26-6100

Ball Bearing
(Superseded to 12-8789)

$34.99

$

In Stock, Qty 7

0

28

Toro 26-6110

FLANGE-CUP, BEARING

$6.49

$

In Stock, Qty 11

0

29

Toro 26-6400

Positioner-Scraper

$

$

Not available

30

Toro 5-7290

SPRING-TENSION

$27.99

$

In Stock, only 2 left!

0

31

Toro 20-0300

SCRAPER BLADE SPACER

$10.99

$

Usually ships in 3-6 days

0

32

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 2 left!

0

33

Toro 20-0990

BEARING-FLANGE, FRONT

$11.99

$

In Stock, only 4 left!

0

34

Toro 20-0980

BEARING

$22.99

$

In Stock, Qty 5

0

35

Toro 20-1000

BEARING-FLANGE, REAR

$11.99

$

In Stock, only 4 left!

0

36

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

37

Toro 17-6500

AUGER SIDE PLT DECAL

$

$

Not available

38

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

39

Toro 3-0750

WASHER

$9.49

$

In Stock, only 2 left!

0

40

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

41

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

42

Toro 20-2840

AUGER SKID WA R
(Superseded to 20-2840-01)

$47.99

$

In Stock, Qty 11

0

43

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

44

Toro 20-1340

Sideplate Auger Left
(Superseded to 43-7430)

$301.99

$

Usually ships in 3-6 days

0

45

Toro 25-5140

SCRAPER STOP SPACER

$

$

Not available

46

Toro 25-5150

SCRAPER STOP CUSHION

$8.99

$

Usually ships in 3-6 days

0

47

Toro 20-1320

24 SCRAPER BLD
(Superseded to 20-1320-01)

$

$

Not available

48

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

49

Toro 25-5090

SPACER-HUB, AUGER

$11.99

$

In Stock, Qty 8

0

50

Toro 17-7030

Auger Bolt
(Superseded to 322-12)

$2.49

$

In Stock, Qty 10

0

51

Toro 36-2580

Shaft Impeller
(Superseded to 66-6941)

$

$

Not available

52

Toro 20-1170

24 AUGER SHAFT

$

$

Not available

53

Toro 3257-33

KEY-WOODRUFF

$2.49

$

In Stock, only 2 left!

0

54

Toro 37-8860

Gear Case (Incl. Ref. #67 & 68)
(Superseded to 14-2459)

$155.99

$

In Stock, only 2 left!

0

55

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

Usually ships in 3-6 days

0

56

Toro 5-7180

GEAR-WORM, 27T

$183.99

$

In Stock, only 1 left!

0

57

Toro 252-71

WASHER-THRUST

$19.99

$

In Stock, only 2 left!

0

58

Toro 252-78

WASHER-THRUST

$26.99

$

In Stock, only 2 left!

0

59

Toro 252-76

BEARING-THRUST

$21.99

$

Usually ships in 3-6 days

0

60

Toro 3-8664

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

61

Toro 32120-72

Ring-Snap

$2.49

$

In Stock, only 2 left!

0

62

Toro 256-32

BUSHING

$10.99

$

In Stock, Qty 9

0

63

Toro 5-7170

GEAR

$131.99

$

In Stock, only 3 left!

0

64

Toro 252-77

THRUST-WASHER

$11.99

$

In Stock, only 2 left!

0

65

Toro 19-8520

Gasket
(Superseded to 51-0460)

$9.49

$

In Stock, Qty 5

0

66

Toro 37-8850

Gear Case (Incl. Ref. #67 & 68)
(Superseded to 14-2449)

$155.99

$

In Stock, only 2 left!

0

67

Toro 256-237

BUSHING

$15.99

$

In Stock, Qty 5

0

68

Toro 7-0045

SEAL-OIL

$17.99

$

In Stock, Qty 6

0

69

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

70

Toro 20-3210

BUSHING-SPECIAL

$12.99

$

In Stock, only 1 left!

0

71

Toro 237-87

RING-QUAD

$7.49

$

In Stock, only 1 left!

0

Toro 19-7000

Gear Case Complete
(Superseded to 19-7002)

Note: Not illustrated

$

$

Not available

Toro 20-0690

DRIFT BREAKER 24

Note: Not illustrated

$116.99

$

Usually ships in 3-6 days

0

Toro 25-9150

REPLACEMNT SERIAL PLT

Note: Not illustrated

$19.99

$

Usually ships in 3-6 days

0
