38080 (824) - Toro 24" Snow Thrower (SN: 007000001 - 007999999) (1987) SNOW CAB ASSEMBLY MODEL 42-3380 Parts Diagram
24" Snow Thrower

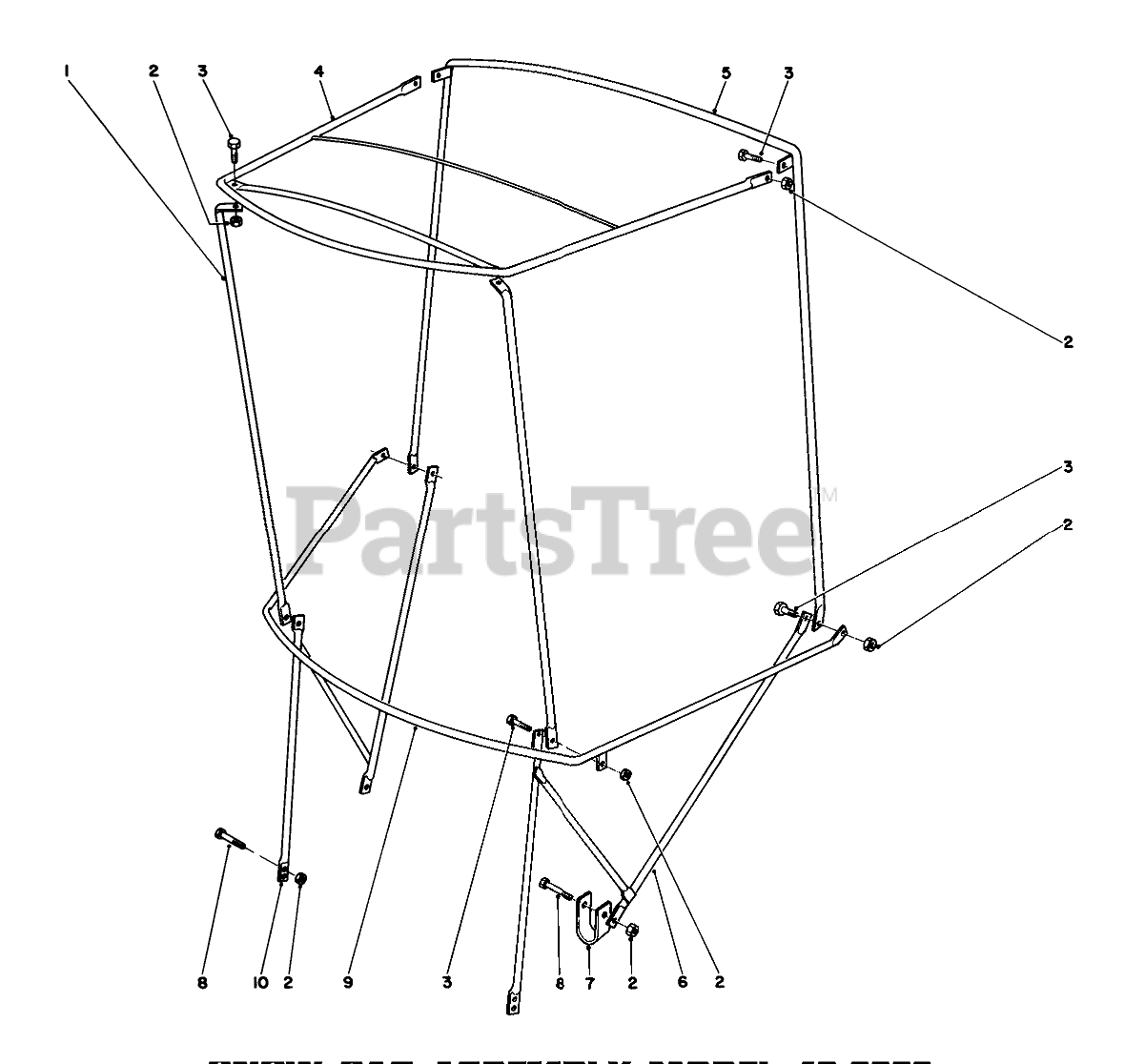

SNOW CAB ASSEMBLY MODEL 42-3380 Parts Diagram
Toro 12-8040
POST
$
$
Not available
Toro 32153-4
NUT-HEX, SIDE DEFORM
$1.49
$
Usually ships in 3-6 days
Toro 321-4
SCREW-HH
$1.49
$
In Stock, Qty 20+
Toro 12-8010
FRAME-TOP
$
$
Not available
Toro 12-8030
BOW-VERTICAL, REAR
$
$
Not available
Toro 42-4060
ATTACHING BRKT L
$
$
Not available
Toro 12-8050
U CLAMP
$
$
Not available
Toro 321-11
SCREW-HH
$0.99
$
In Stock, Qty 20+
Toro 12-8020
BOW-CURVED
$
$
Not available
Toro 42-4050
ATTACHING BRKT R
$
$
Not available
Vinyl Cover
Note: Not illustrated
$
$
Not available
