38080 (824) - Toro 24" Snow Thrower (SN: 000000001 - 000999999) (1980) ENGINE TECUMSEH MODEL NO. HM 80-155169F Parts Diagram

24" Snow Thrower

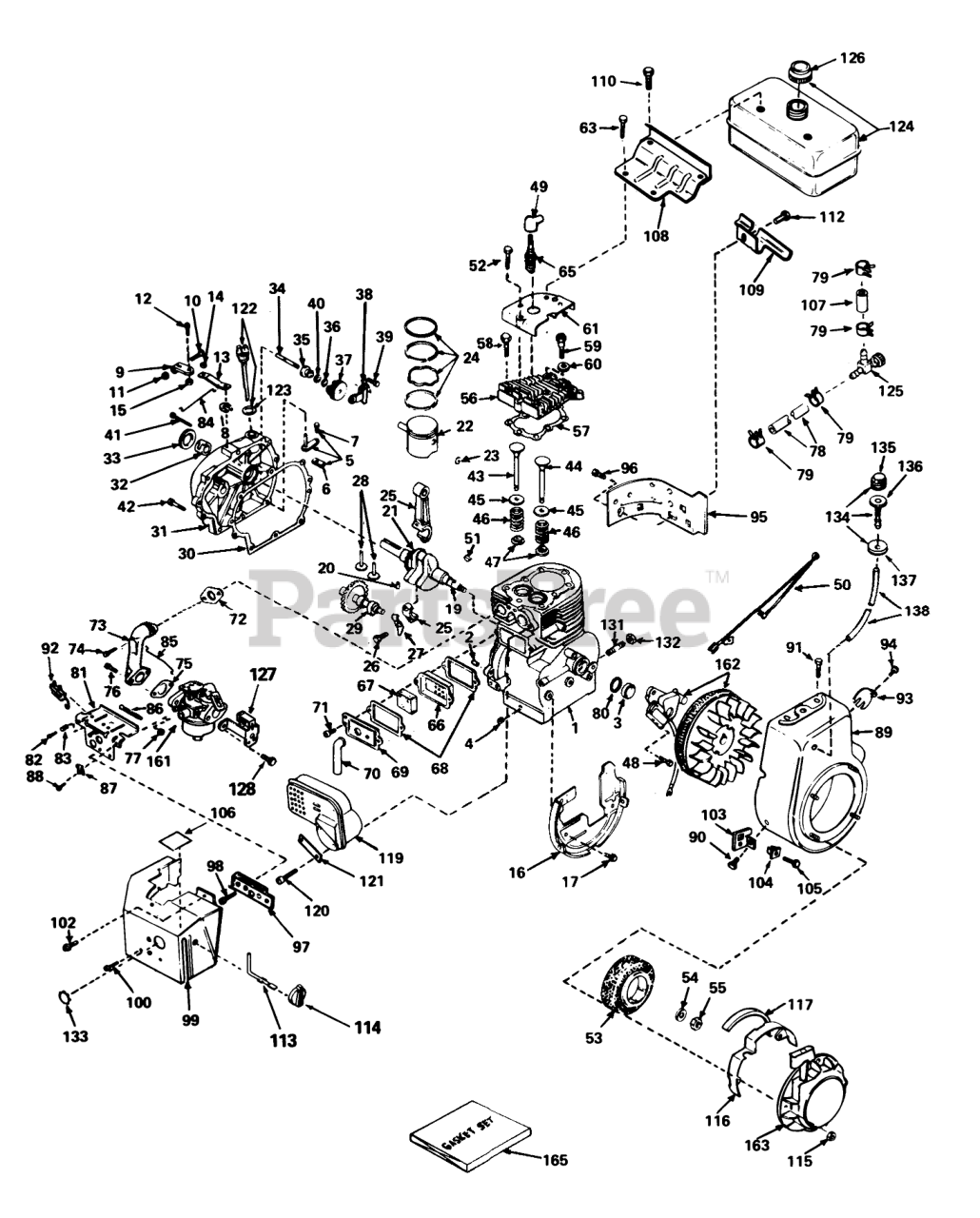

ENGINE TECUMSEH MODEL NO. HM 80-155169F Parts Diagram

  • Title

1

Tecumseh 34348

Cylinder Assembly (Incl. Ref. #2, 3 & 4)
(Superseded to 34348B)

$

$

Not available

2

Tecumseh 27652

Pin-Dowel

$2.49

$

Usually ships in 3-12 days

0

3

Tecumseh 32630

Oil Seal

Note: Indicates items included in gasket set part no. 33279C.

$8.49

$

Usually ships in 3-12 days

0

4

Tecumseh 27642

Plug-Drain, Oil (SQH 1/4-18)

$1.99

$

In Stock, only 2 left!

0

5

Tecumseh 30699C

Rod Assembly, Governor (Incl. Ref. #6 & 7)

$17.99

$

In Stock, only 1 left!

0

6

Tecumseh 30700

Yoke-Governor

$1.99

$

In Stock, only 1 left!

0

7

Tecumseh 650494

Screw (6-40x5/16)

$1.99

$

Usually ships in 3-12 days

0

8

Tecumseh 29642

Ring-Retaining

$100.99

$

In Stock, only 2 left!

0

9

Tecumseh 29916

Clamp-Lever, Governor

$1.99

$

In Stock, only 2 left!

0

10

Tecumseh 29826

Screw

$1.99

$

In Stock, only 4 left!

0

11

Tecumseh 29216

Nut-Lock

$1.99

$

In Stock, only 3 left!

0

12

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 9

0

13

Tecumseh 33454

Lever-Governor
(Superseded to 33454A)

$10.99

$

In Stock, only 1 left!

0

14

Tecumseh 29918

Washer-Lock

$1.99

$

In Stock, Qty 5

0

15

Tecumseh 30322

Nut-Lock

$1.99

$

Usually ships in 3-12 days

0

16

Tecumseh 29536

Baffle Blower Housing

$18.99

$

Usually ships in 3-12 days

0

17

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

19

Tecumseh 33365B

Crankshaft Assembly (Incl. Ref. #20 & 21)

$186.99

$

Usually ships in 3-12 days

0

20

Tecumseh 29783

Pin, Groove

$1.99

$

Usually ships in 3-12 days

0

21

Tecumseh 33245

Gear, Crankshaft

$

$

Not available

22

Tecumseh 34329A

Piston & Pin Assembly (Incl. Ref. #23) (Std.)
(Superseded to 40049)

$

$

Not available

22

Tecumseh 34552

Piston, Pin & Ring Assy. (Incl. Ref. #23 & 24) (Std.)
(Superseded to 40049)

$

$

Not available

22

Tecumseh 34330A

Piston & Pin Assembly (Incl.Ref . #23) (.010 Oversize)
(Superseded to 40012)

$

$

Not available

22

Tecumseh 34553

Piston, Pin & Ring Assy. (Incl. Ref. #23 & 24) (.010 Oversize)
(Superseded to 40012)

$

$

Not available

22

Tecumseh 34331A

Piston & Pin Assembly (Incl. Ref. #23) (.020 Oversize)

$

$

Not available

22

Tecumseh 34554

Piston, Pin & Ring Assy. (Incl. Ref. #23 & 24) (.020 Oversize)

$

$

Not available

23

Tecumseh 27888

Ring-Retaining, Piston Pin

$1.99

$

Usually ships in 3-12 days

0

24

Tecumseh 34332

Ring Set (Std.)
(Superseded to 40049)

$

$

Not available

24

Tecumseh 34333

Ring Set (.010" OS)

$

$

Not available

24

Tecumseh 34334

Ring Set (.020" OS)

$38.99

$

In Stock, only 1 left!

0

25

Tecumseh 32591C

Rod Assy., Connecting (Incl. Ref. #26 & 27)

$

$

Not available

26

Tecumseh 650662A

Bolt, Connecting Rod
(Superseded to 650662C)

$3.99

$

Usually ships in 3-12 days

0

27

Tecumseh 34242

Dipper-Oil

$

$

Not available

28

Tecumseh 34034

Lifter-Valve
(Superseded to 34034A)

$10.99

$

In Stock, only 3 left!

0

29

Tecumseh 34143

Camshaft (Mech. Comp. Release)

$92.99

$

Usually ships in 3-12 days

0

30

Tecumseh 33253

Gasket, Cylinder Cover
(Superseded to 37342)

Note: Indicates items included in gasket set part no. 33279C.

$11.99

$

In Stock, only 1 left!

0

31

Tecumseh 33367A

Cover, Cylinder (Incl. Ref. #32, 33 & 34)
(Superseded to 33367B)

$

$

Not available

32

Tecumseh 33368

Bushing, Crankshaft

$

$

Not available

33

Tecumseh 31950

Seal, Oil

Note: Indicates items included in gasket set part no. 33279C.

$17.99

$

In Stock, only 1 left!

0

34

Tecumseh 31845

Shaft-Governor
(Superseded to 37587)

$

$

Not available

35

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, only 4 left!

0

36

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, only 4 left!

0

37

Tecumseh 30591

Gear Assembly, Governor (Incl. Ref. #40)

$13.99

$

In Stock, only 1 left!

0

38

Tecumseh 33369

Bracket-Gear, Governor

$8.49

$

In Stock, only 1 left!

0

39

Tecumseh 28763

Screw (10-32 x 35/64)

$1.99

$

Usually ships in 3-12 days

0

40

Tecumseh 30590A

Washer-Flat

$1.99

$

In Stock, Qty 7

0

41

Tecumseh 650488

Screw (1/4-20 x 1-1/4)

$1.99

$

Usually ships in 3-12 days

0

42

Tecumseh 650493

Screw

$3.99

$

In Stock, Qty 7

0

43

Tecumseh 34035

Valve, Intake (Std.)(Incl. Ref. #47)

$15.99

$

In Stock, only 1 left!

0

43

Tecumseh 34036

Valve, Intake (1/32" Oversize) (Incl. Ref. #47)

$

$

Not available

44

Tecumseh 27878A

Valve, Exhaust (Std.) Oversize) (Incl. Ref. #47)

$23.99

$

Usually ships in 3-12 days

0

44

Tecumseh 27880A

Valve, Exhaust (1/32" Oversize) (Incl. Ref. #47)

$

$

Not available

45

Tecumseh 27882

Cap-Spring, Valve

$1.99

$

In Stock, only 4 left!

0

46

Tecumseh 27881

Spring-Valve

$3.99

$

In Stock, only 2 left!

0

47

Tecumseh 32581

Keeper-Spring, Valve

$6.49

$

In Stock, Qty 10

0

48

Tecumseh 650489

Screw

$

$

Not available

49

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 3 left!

0

50

Tecumseh 34240

Wire, Ground

$

$

Currently unavailable

51

Tecumseh 32589

Key-Flywheel

$1.49

$

In Stock, Qty 6

0

52

Tecumseh 650737

Screw (1/4-20 x 1/2)

$1.99

$

In Stock, Qty 6

0

53

Tecumseh 33662

Hub & Screen Assy., Starter

$25.99

$

In Stock, only 2 left!

0

54

Tecumseh 650490

Washer
(Superseded to 650815)

$1.99

$

In Stock, Qty 10

0

55

Tecumseh 8116

Nut

$1.99

$

In Stock, only 4 left!

0

56

Tecumseh 34030

Head Cylinder
(Superseded to 34030B)

$

$

Not available

57

Tecumseh 34041

Gasket-Cylinder Head
(Superseded to 34923A)

Note: Indicates items included in gasket set part no. 33279C.

$7.99

$

Usually ships in 3-12 days

0

58

Tecumseh 6021A

Screw (5/16-18x1-1/2)

$1.99

$

In Stock, only 3 left!

0

59

Tecumseh 650727

Screw (5/16-18x1-25/32)

$3.99

$

In Stock, only 1 left!

0

60

Tecumseh 650691

Washer-Flat

$1.99

$

Usually ships in 3-12 days

0

61

Tecumseh 33272

Cover, Cylinder Head
(Superseded to 33272D)

$7.49

$

Usually ships in 3-12 days

0

63

Tecumseh 650713

Screw
(Superseded to 651055)

$1.99

$

In Stock, Qty 5

0

65

Tecumseh 33636

Plug, Spark (J17LM or equiv.)

$5.49

$

In Stock, Qty 12

0

65

Tecumseh 34251

Plug, Spark (Champion RCJ-8)
(Superseded to 33636)

$5.49

$

In Stock, Qty 12

0

66

Tecumseh 28423

Body-Breather

$13.99

$

In Stock, only 1 left!

0

67

Tecumseh 28424

Element-Breather

$3.99

$

In Stock, only 3 left!

0

68

Tecumseh 27896

Gasket-Breather
(Superseded to 27896A)

Note: Indicates items included in gasket set part no. 33279C.

$1.49

$

In Stock, Qty 8

0

69

Tecumseh 28425

Cover-Valve

$7.49

$

In Stock, only 1 left!

0

70

Tecumseh 27627

Tube-Breather
(Superseded to 35350)

$6.49

$

Usually ships in 3-12 days

0

71

Tecumseh 650128

Screw

$5.49

$

In Stock, only 1 left!

0

72

Tecumseh 27915

Gasket-Intake
(Superseded to 27915A)

Note: Indicates items included in gasket set part no. 33279C.

$5.99

$

In Stock, Qty 19

0

73

Tecumseh 33877

Pipe-Intake

$48.99

$

Usually ships in 3-12 days

0

74

Tecumseh 650378

Screw (T-30, 5/16-18x1-3/32)

$1.99

$

In Stock, only 3 left!

0

75

Tecumseh 33861

Gasket, Carburetor
(Superseded to 33263)

Note: Indicates items included in gasket set part no. 33279C.

$1.49

$

In Stock, Qty 20+

0

76

Tecumseh 30088A

Screw (1/4-28x1)

$1.99

$

In Stock, only 4 left!

0

77

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, only 1 left!

0

78

Tecumseh 30705

Line-Fuel

$16.99

$

In Stock, only 2 left!

0

79

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 20+

0

80

Tecumseh 33876

Gasket Stator

$5.49

$

Usually ships in 3-12 days

0

81

Tecumseh 33461A

Control Assy., Speed (Incl. Ref. #82, 83, 86 & 92)

$

$

Currently unavailable

82

Tecumseh 650549

Screw
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

83

Tecumseh 31342

Spring-Compression

$5.99

$

In Stock, only 1 left!

0

84

Tecumseh 33371

Link, Governor

$12.99

$

Usually ships in 3-12 days

0

85

Tecumseh 33878

Link-Throttle

$6.99

$

In Stock, only 2 left!

0

86

Tecumseh 33374

Spring, Extension

$3.99

$

In Stock, only 1 left!

0

87

Tecumseh 27793

Conduit

$1.99

$

In Stock, only 2 left!

0

88

Tecumseh 28942

Screw (10-32 x 3/8)

$1.49

$

In Stock, only 4 left!

0

89

Tecumseh 34145

Housing, Blower

$

$

Currently unavailable

90

Tecumseh 29747A

Screw, Hex Hd.
(Superseded to 29747B)

$1.99

$

In Stock, Qty 9

0

91

Tecumseh 650788

Screw (5/16-18x3/4)

$1.99

$

In Stock, only 1 left!

0

92

Tecumseh 650973

Terminal Assembly
(Superseded to 730636A)

$13.99

$

In Stock, only 1 left!

0

93

Tecumseh 33013

Screw

$3.99

$

Usually ships in 3-12 days

0

94

Tecumseh 650760

Screw (8-32 x 3/8)

$1.99

$

In Stock, only 3 left!

0

95

Tecumseh 33273

Extension, Blower Housing
(Superseded to 33273A)

$7.49

$

Usually ships in 3-12 days

0

96

Tecumseh 650128

Screw

$5.49

$

In Stock, only 1 left!

0

97

Tecumseh 33377

Bracket-Carburetor
(Superseded to 37659)

$

$

Not available

98

Tecumseh 650767

Screw (8-32x27/64)

$1.49

$

In Stock, only 4 left!

0

99

Tecumseh 34140

Cover, Carburetor

$76.99

$

Usually ships in 3-12 days

0

100

Tecumseh 28942

Screw (10-32 x 3/8)

$1.49

$

In Stock, only 4 left!

0

102

Tecumseh 650765

Screw (10-32x1/2)

$1.49

$

In Stock, only 4 left!

0

103

Tecumseh 34126

Bracket

$1.99

$

Usually ships in 3-12 days

0

104

Tecumseh 28545

Grommet

$1.99

$

In Stock, Qty 5

0

105

Tecumseh 650643

Screw
(Superseded to 650760)

$1.99

$

In Stock, only 3 left!

0

107

Tecumseh 29774

Line-Fuel (8.62)

$34.99

$

In Stock, Qty 6

0

108

Toro 341-54

Plate, Fuel Tank Mounting

$

$

Currently unavailable

109

Tecumseh 34155

Bracket-Tank, Fuel

$

$

Not available

110

Tecumseh 650665

Screw (1/4-15x7/8)

$1.99

$

In Stock, only 3 left!

0

112

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

113

Tecumseh 34586

Rod-Choke

$5.49

$

In Stock, only 1 left!

0

114

Tecumseh 34585

Knob-Control
(Superseded to 35438)

$3.99

$

In Stock, only 2 left!

0

115

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, only 1 left!

0

116

Tecumseh 34141

Guard, Starter

$

$

Not available

117

Tecumseh 32576

Seal, Snowguard

$3.99

$

Usually ships in 3-12 days

0

119

Tecumseh 34185

Muffler
(Superseded to 34185B)

$46.99

$

In Stock, only 1 left!

0

120

Tecumseh 650729

Screw, Hex Hd.

$1.99

$

In Stock, Qty 5

0

121

Tecumseh 31588

Plate-Locking

$4.99

$

In Stock, Qty 20+

0

122

Tecumseh 31297

Dipstick, Oil (Incl. Ref. #123)
(Superseded to 34011B)

$15.99

$

In Stock, only 1 left!

0

123

Tecumseh 29673

Gasket

Note: Indicates items included in gasket set part no. 33279C.

$1.99

$

In Stock, only 3 left!

0

124

Tecumseh 34156

Tank Assy ., Fuel (Incl. Ref. #1261)
(Superseded to 34156A)

$54.99

$

Usually ships in 3-12 days

0

125

Tecumseh 32961

Valve-Shut Off
(Superseded to 35857)

$13.99

$

Usually ships in 3-12 days

0

126

Tecumseh 30998B

Cap, Fuel
(Superseded to 34210)

$8.49

$

In Stock, Qty 12

0

127

Tecumseh 34587

Bracket-Choke
(Superseded to 34587B)

$9.49

$

In Stock, only 1 left!

0

128

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

$4.49

$

In Stock, only 3 left!

0

133

Tecumseh 31291

Plug

$

$

Currently unavailable

134

Tecumseh 32182

Primer Assembly (Incl. Ref. #135, 136 & 137)
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

135

Tecumseh 32183

33164A GILO"HITCH A
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

136

Tecumseh 32184

Body Primer
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

137

Tecumseh 32312

Retainer, Primer Bulb
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

138

Tecumseh 32180B

Line, Primer
(Superseded to 32180C)

$6.99

$

In Stock, only 4 left!

0

161

Tecumseh 632111

Carburetor (Incl. Ref. #75)
(Superseded to 632334A)

$136.99

$

Usually ships in 3-12 days

0

162

Tecumseh 610848

Magneto (The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.)

$

$

Currently unavailable

163

Tecumseh 590479

Starter, Rewind
(Superseded to 590685B)

$68.99

$

Usually ships in 3-12 days

0

165

Tecumseh 33279C

Gasket Set
(Superseded to 33279L)

$

$

Not available
