380772-0102-E1 - Briggs & Stratton Vertical Engine Carburetor, Fuel Supply Parts Diagram

Vertical Engine

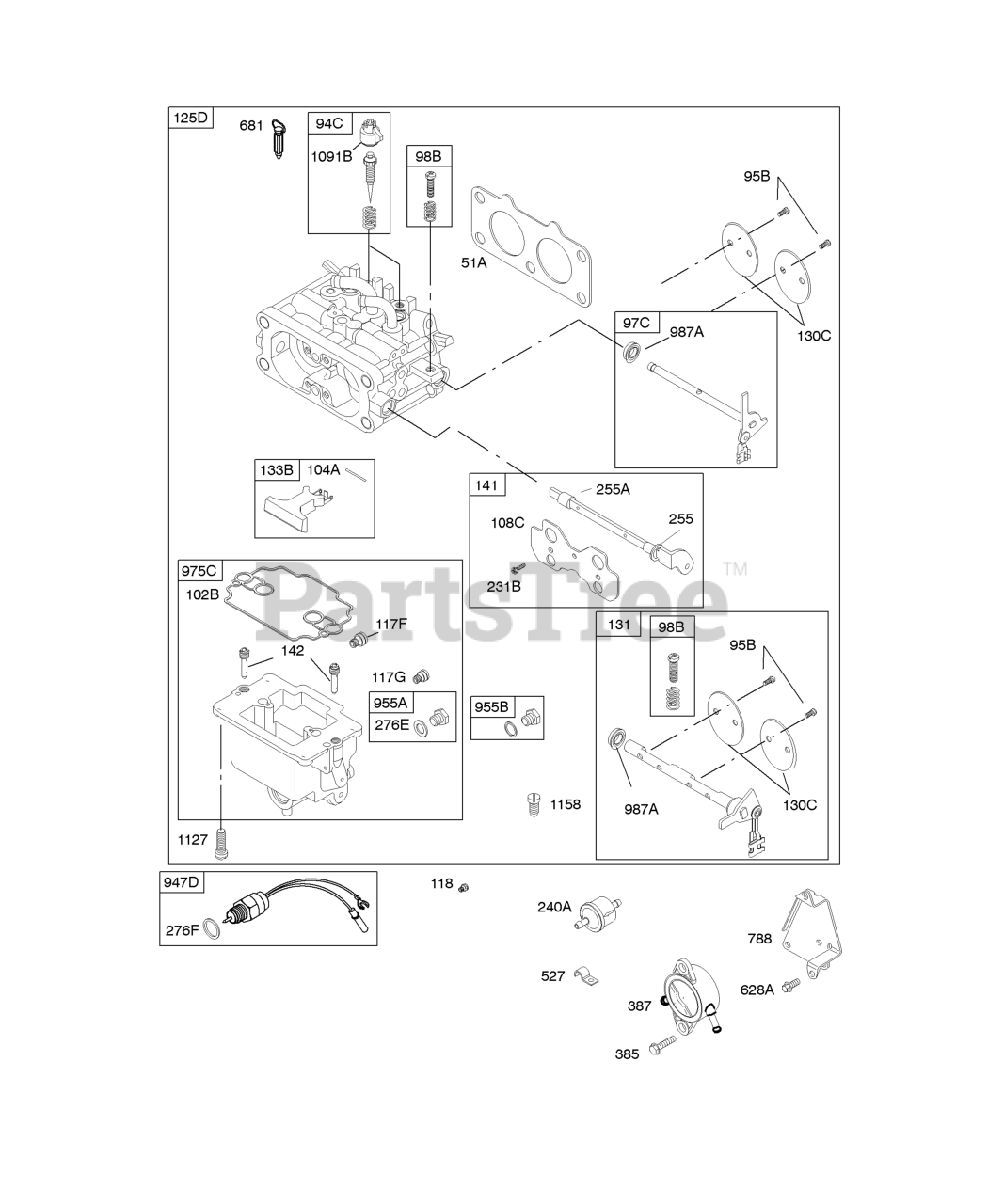

Carburetor, Fuel Supply Parts Diagram

  • Title
51A

Briggs & Stratton 690950

GASKET, Intake

Note: (Manifold/Carburetor Spacer)

$2.99

$

In Stock, Qty 15

0

94C

Briggs & Stratton 842870

Kit-Idle Mixture

$44.99

$

Usually ships in 2-12 days

0

95B

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

97C

Briggs & Stratton 808719

Shaft-Throttle

$42.99

$

Usually ships in 2-12 days

0

98B

Briggs & Stratton 808177

Kit-Idle Speed

$13.99

$

In Stock, only 1 left!

0

102B

Briggs & Stratton 693711

Gasket-Carburetor Body

$24.99

$

In Stock, Qty 13

0

104A

Briggs & Stratton 690882

Pin-Float Hinge

$8.99

$

Usually ships in 2-12 days

0

108C

$9.49

$

Usually ships in 2-12 days

0

117F

Briggs & Stratton 806374

Jet-Main

Note: (Standard) (Cylinder #1)

$16.99

$

Usually ships in 2-12 days

0

117G

Briggs & Stratton 806373

Jet-Main

Note: (Standard) (Cylinder #2)

$

$

Not available

118

Briggs & Stratton 842291

Jet-Main

Note: (High Altitude) (Left or Cylinder #1)

$26.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 842439

Jet-Main

Note: (High Altitude) (Right Or Cylinder 2)

$16.99

$

Usually ships in 2-12 days

0

125D

Briggs & Stratton 809705

Carburetor
(Superseded to 844370)

Note: (Nikki Carburetor) Used After Code Date 07033100

$333.99

$

Usually ships in 2-12 days

0

125D

Briggs & Stratton 808604

Carburetor
(Superseded to 844370)

Note: (T K Carburetor) Used Before Code Date 03040100

$333.99

$

Usually ships in 2-12 days

0

130C

Briggs & Stratton 690884

Valve-Throttle

$14.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 809718

Kit-Throttle Shaft

$83.99

$

Usually ships in 2-12 days

0

133B

Briggs & Stratton 808180

Float-Carburetor

$33.99

$

Usually ships in 2-12 days

0

141

Briggs & Stratton 809710

Kit-Choke Shaft
(Superseded to 843785)

$50.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 806375

Nozzle-Carburetor

Note: (Standard)

$39.99

$

Usually ships in 2-12 days

0

231B

Briggs & Stratton 690718

SCREW

Note: (Choke Valve)

$5.99

$

Usually ships in 2-12 days

0

240A

Briggs & Stratton 691035

FILTER, Fuel
(Superseded to 84001895)

Note: (Includes Paper Element With A 40 Micron Rating)

$7.99

$

In Stock, Qty 20+

0

255

Briggs & Stratton 809638

Bushing-Choke Shaft

$7.49

$

In Stock, only 1 left!

0

255A

Briggs & Stratton 809644

Bushing-Choke Shaft

$8.49

$

In Stock, only 1 left!

0

276E

Briggs & Stratton 690724

Washer-Sealing

Note: (Carburetor Plug)

$7.99

$

In Stock, Qty 8

0

276F

Briggs & Stratton 693497

Washer-Sealing

$7.99

$

Usually ships in 2-12 days

0

385

Briggs & Stratton 807084

SCREW

Note: (Fuel Pump)

$3.49

$

In Stock, only 2 left!

0

387

Briggs & Stratton 808656

PUMP, Fuel
(Superseded to 597338)

$27.99

$

In Stock, Qty 20+

0

527

$4.99

$

Usually ships in 2-12 days

0

628A

Briggs & Stratton 806660

Screw

Note: (Fuel Pump Bracket)

$3.99

$

In Stock, only 1 left!

0

681

Briggs & Stratton 808798

Kit-Needle Valve

$

$

Not available

788

Briggs & Stratton 691559

Bracket-Fuel Pump

$24.99

$

In Stock, only 1 left!

0

947D

Briggs & Stratton 809632

Solenoid-Fuel

Note: (T K Carburetor) Used After Code Date 03033100

$166.99

$

Usually ships in 2-12 days

0

947D

Briggs & Stratton 808624

Solenoid-Fuel

Note: (Nikki Carburetor) Used Before Code Date 03040100

$192.99

$

In Stock, only 1 left!

0

955A

Briggs & Stratton 807723

Plug-Carburetor

Note: (M9)

$6.49

$

In Stock, Qty 12

0

955B

Briggs & Stratton 808176

Plug-Carburetor

Note: (M12)

$18.99

$

Usually ships in 2-12 days

0

975C

$84.99

$

Usually ships in 2-12 days

0

987A

Briggs & Stratton 691000

SEAL, Throttle Shaft

$6.99

$

Usually ships in 2-12 days

0

1091B

$8.49

$

Usually ships in 2-12 days

0

1127

Briggs & Stratton 690885

Screw

Note: (Float Bowl to Carburetor Body) (Mount Float Bowl To Carburetor Body)

$3.99

$

Usually ships in 2-12 days

0

1158

Briggs & Stratton 807468

Screw

Note: (Carburetor Plug)

$9.99

$

Usually ships in 2-12 days

0
