38073 (724) - Toro 24" Snow Thrower (SN: 039000001 - 039999999) (1993) ENGINE TECUMSEH MODEL HSK70-130282R Parts Diagram

24" Snow Thrower

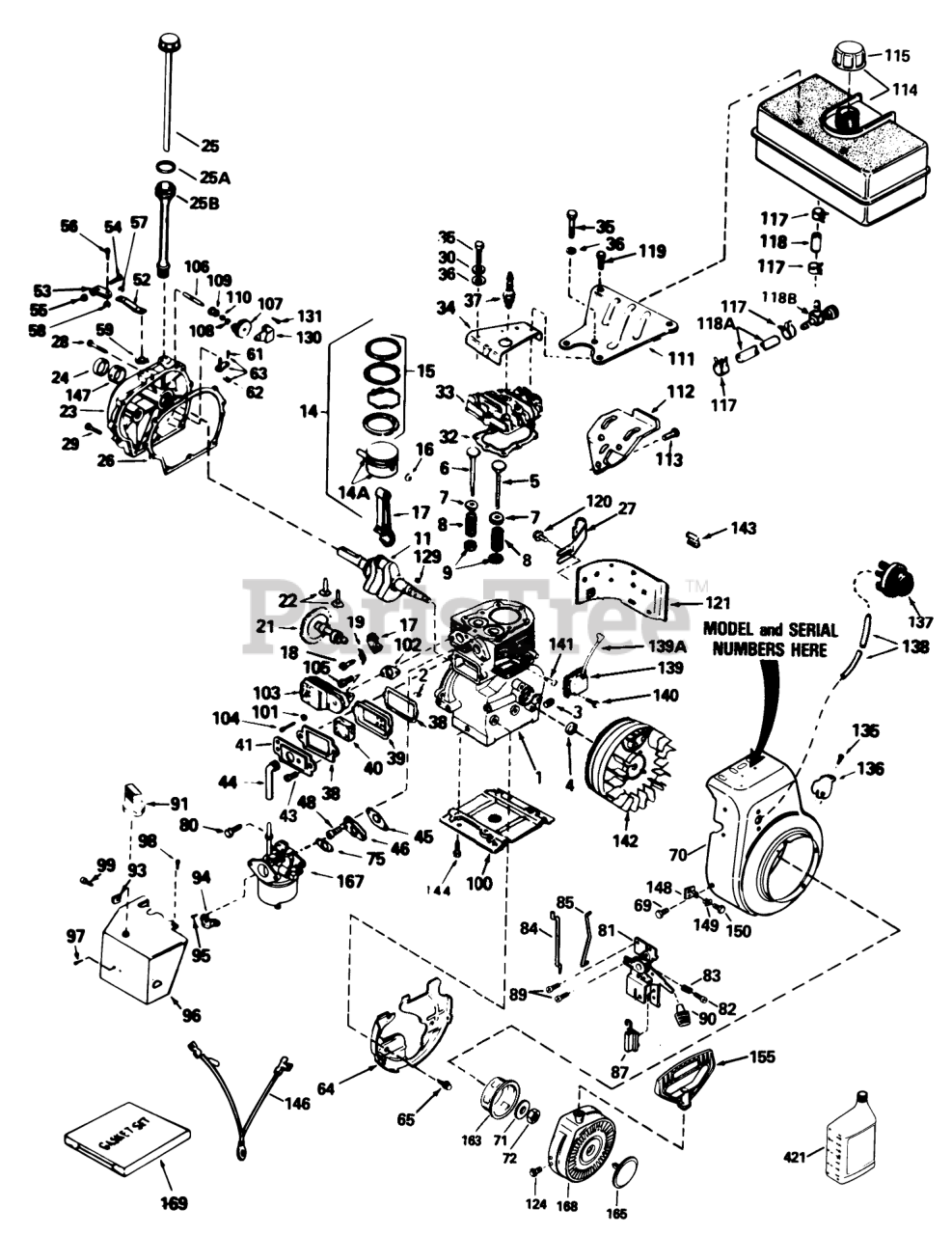

ENGINE TECUMSEH MODEL HSK70-130282R Parts Diagram

  • Title

1

Tecumseh 32586C

Cylinder Assembly (Incl. ref. #2, 3, & 4)

$

$

Not available

2

Tecumseh 27652

Pin-Dowel

$2.49

$

Usually ships in 3-12 days

0

3

Tecumseh 27642

Plug-Drain, Oil (SQH 1/4-18)

$1.99

$

In Stock, only 2 left!

0

4

Tecumseh 32630

Oil Seal

$8.49

$

Usually ships in 3-12 days

0

5

Tecumseh 32783

Valve-Intake, Standard (Incl. ref. #9)

$16.99

$

In Stock, only 2 left!

0

Tecumseh 32784

Valve-Intake 1/32" oversize (Incl. ref. #9)

$69.99

$

Usually ships in 3-12 days

0

6

Tecumseh 27878A

Valve-Exhaust, Standard (Incl. ref. #9)

$23.99

$

Usually ships in 3-12 days

0

Tecumseh 27880A

Valve-Exhaust 1/32" oversize (Incl. ref. #9)

$

$

Not available

7

Tecumseh 27882

Cap-Spring, Valve

$1.99

$

In Stock, only 4 left!

0

8

Tecumseh 27881

Spring-Valve

$3.99

$

In Stock, only 2 left!

0

9

Tecumseh 32581

Keeper-Spring, Valve

$6.49

$

In Stock, Qty 10

0

11

Tecumseh 35272

Crankshaft

$

$

Not available

14

Tecumseh 34517

Piston-Pin & Ring Assy. Standard (Incl. ref. #14A, 15 & 16)

$

$

Not available

Tecumseh 34518

Piston-Pin & Ring Assy. (.010 oversize) (Incl. ref. #14A, 15 & 16)

$

$

Not available

Tecumseh 34519

Piston-Pin & Ring Assy. (.020 oversize) (Incl. ref. #14A, 15 & 16)

$

$

Not available

14A

Tecumseh 32592B

Piston & Pin Assy. Standard (Incl. ref. #16)

$52.99

$

In Stock, only 1 left!

0

Tecumseh 32593B

Piston & Pin Assembly .010 oversize (Incl. ref. #16)

$57.99

$

In Stock, only 1 left!

0

Tecumseh 32594B

Piston & Pin Assembly .020 oversize (Incl. ref. #16)

$61.99

$

Usually ships in 3-12 days

0

15

Tecumseh 32595

"O"Ring

$

$

Not available

Tecumseh 32596

Ring Set (.010" OS)

$

$

Not available

Tecumseh 32597

Ring Set (.020" OS)

$

$

Not available

16

Tecumseh 27888

Ring-Retaining, Piston Pin

$1.99

$

Usually ships in 3-12 days

0

17

Tecumseh 32591C

Connecting Rod Assembly (Incl. ref. #18 & 19)

$

$

Not available

18

Tecumseh 650662C

Bolt-Connecting Rod

$3.99

$

Usually ships in 3-12 days

0

19

Tecumseh 34242

Dipper-Oil

$

$

Not available

21

Tecumseh 32115

55012A GIL SNWTHWR

$

$

Not available

22

Tecumseh 34034

Lifter-Valve
(Superseded to 34034A)

$10.99

$

In Stock, only 3 left!

0

23

Tecumseh 31303C

Cover-Cylinder (incl. ref. #24, 24A, 106, 147)

$128.99

$

Usually ships in 3-12 days

0

24

Tecumseh 28427

Oil Seal

$6.99

$

In Stock, only 2 left!

0

25

Tecumseh 35555

Dipstick
(Superseded to 36205)

$10.99

$

Usually ships in 3-12 days

0

25A

Tecumseh 35499

O-Ring

$1.49

$

In Stock, only 3 left!

0

25B

Tecumseh 35554

Tube-Fill, Oil

$19.99

$

In Stock, only 1 left!

0

26

Tecumseh 30684

Gasket-Cover, Cylinder

Note: Indicated Parts included in Gasket Set Ref. Num 169

$4.49

$

In Stock, Qty 6

0

27

Tecumseh 35540

Clip-Tube, Fill

$1.99

$

In Stock, only 2 left!

0

28

Tecumseh 650488

Screw (1/4-20 x 1-1/4)

$1.99

$

Usually ships in 3-12 days

0

29

Tecumseh 650493

Screw

$3.99

$

In Stock, Qty 7

0

30

Tecumseh 650690

Washer-Belleville
(Superseded to 730324)

$9.99

$

Usually ships in 3-12 days

0

32

Tecumseh 32631A

Gasket-Cylinder Head

Note: Indicated Parts included in Gasket Set Ref. Num 169

$11.99

$

In Stock, Qty 9

0

33

Tecumseh 30938A

Head-Cylinder (Incl. 3 of ref. #35)
(Superseded to 36446)

$

$

Not available

34

Tecumseh 30939A

Cover-Head, Cylinder
(Superseded to 30939B)

$

$

Not available

35

Tecumseh 650697A

Screw (5/16-18 X 2-1/2)

$1.99

$

In Stock, only 3 left!

0

36

Tecumseh 650691

Washer-Flat

$1.99

$

Usually ships in 3-12 days

0

37

Tecumseh 35395

Spark Plug-Resistor (R J19 L M)

$3.49

$

In Stock, Qty 20+

0

38

Tecumseh 27896A

Gasket-Cover, Valve

Note: Indicated Parts included in Gasket Set Ref. Num 169

$1.49

$

In Stock, Qty 10

0

39

Tecumseh 28423

Body-Breather

$13.99

$

In Stock, only 1 left!

0

40

Tecumseh 28424

Element-Breather

$3.99

$

In Stock, only 3 left!

0

41

Tecumseh 28425

Cover-Valve

$7.49

$

In Stock, only 1 left!

0

43

Tecumseh 650128

Screw

$5.49

$

Usually ships in 3-12 days

0

44

Tecumseh 35350

Tube-Breather

$6.49

$

Usually ships in 3-12 days

0

45

Tecumseh 27915A

Gasket-Pipe, Intake

Note: Indicated Parts included in Gasket Set Ref. Num 169

$5.99

$

In Stock, Qty 20+

0

46

Tecumseh 34712

Flange-Carburetor (Incl. ref. #80)

$

$

Not available

48

Tecumseh 30196

Screw

$1.99

$

In Stock, Qty 8

0

52

Tecumseh 33454

Lever-Governor
(Superseded to 33454A)

$10.99

$

In Stock, only 1 left!

0

53

Tecumseh 29916

Clamp-Lever, Governor

$1.99

$

In Stock, only 2 left!

0

54

Tecumseh 29826

Screw

$1.99

$

In Stock, only 4 left!

0

55

Tecumseh 29216

Nut-Lock

$1.99

$

In Stock, only 3 left!

0

56

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 9

0

57

Tecumseh 29918

Washer-Lock

$1.99

$

In Stock, Qty 5

0

58

Tecumseh 30322

Nut-Lock

$1.99

$

Usually ships in 3-12 days

0

59

Tecumseh 29642

Ring-Retaining

$100.99

$

In Stock, only 2 left!

0

61

Tecumseh 650494

Screw (6-40x5/16)

$1.99

$

Usually ships in 3-12 days

0

62

Tecumseh 30700

Yoke-Governor

$1.99

$

In Stock, only 1 left!

0

63

Tecumseh 30699C

Rod Assy.-Governor (Incl. ref. #61 & 62)

$17.99

$

In Stock, only 1 left!

0

64

Tecumseh 35326

Baffle-Blower Housing
(Superseded to 37853)

$11.99

$

In Stock, only 1 left!

0

65

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

69

Tecumseh 29747B

Screw

$1.99

$

In Stock, Qty 9

0

70

Tecumseh 36254

Blower Housing

$68.99

$

Usually ships in 3-12 days

0

71

Tecumseh 650815

Washer-Belleville

$1.99

$

In Stock, Qty 10

0

72

Tecumseh 650871

Flywheel Nut

$

$

Not available

75

Tecumseh 31688A

Gasket-Carburetor

Note: Indicated Parts included in Gasket Set Ref. Num 169

$2.49

$

In Stock, only 2 left!

0

80

Tecumseh 650517

Screw (T-30, 1/4-20 X 27-32)

$1.99

$

In Stock, only 1 left!

0

81

Tecumseh 34677

Control Assy.-Speed (Incl. ref. #82, 83, 86 & 87)

$54.99

$

In Stock, only 1 left!

0

82

Tecumseh 650549

Screw
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

83

Tecumseh 31342

Spring-Compression

$5.99

$

In Stock, only 1 left!

0

84

Tecumseh 34661

Governor Link

$6.99

$

In Stock, only 4 left!

0

85

Tecumseh 34662

Link-Throttle

$4.49

$

In Stock, only 4 left!

0

87

Tecumseh 610973

Terminal

$3.99

$

In Stock, Qty 5

0

89

Tecumseh 650821

Screw (10-32 x 1/2)

$1.99

$

In Stock, only 3 left!

0

90

Tecumseh 35440

Knob-Control

$3.99

$

Usually ships in 3-12 days

0

91

Tecumseh 35439

Knob-Choke

$3.99

$

In Stock, only 2 left!

0

93

Tecumseh 650764

Nut-U Type

$1.99

$

Usually ships in 3-12 days

0

94

Tecumseh 32398

Bracket-Choke

$19.99

$

In Stock, only 3 left!

0

95

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

$4.49

$

In Stock, only 3 left!

0

96

Tecumseh 35060

Carburetor Cover
(Superseded to 35060A)

$

$

Not available

97

Tecumseh 650257

Screw (8-32 X 5/16)

$1.49

$

In Stock, Qty 17

0

98

Tecumseh 650765

Screw (10-32x1/2)

$1.49

$

In Stock, only 4 left!

0

99

Tecumseh 650760

Screw (8-32 x 3/8)

$1.99

$

In Stock, only 2 left!

0

100

Tecumseh 29538

Base Engine

$17.99

$

Usually ships in 3-12 days

0

101

Tecumseh 26073

Washer

$

$

Not available

102

35865 Gasket-Muffler

Note: Indicated Parts included in Gasket Set Ref. Num 169

$

$

Not available

103

Tecumseh 32401

Muffler

$35.99

$

In Stock, only 1 left!

0

104

Tecumseh 650694A

Screw (5/16-18 X 2)

$3.49

$

In Stock, Qty 20+

0

105

Tecumseh 30196

Screw

$1.99

$

In Stock, Qty 8

0

106

Tecumseh 31845

Shaft-Governor
(Superseded to 37587)

$

$

Not available

107

Tecumseh 30591

Gear Assy.-Governor (Incl. ref. #110)

$13.99

$

In Stock, only 1 left!

0

108

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, only 4 left!

0

109

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, only 4 left!

0

110

Tecumseh 30590A

Washer-Flat

$1.99

$

In Stock, Qty 7

0

111

Tecumseh 34159

Bracket-Fuel Tank

$18.99

$

In Stock, only 1 left!

0

112

Tecumseh 34158

Bracket-Fuel Tank

$11.99

$

Usually ships in 3-12 days

0

113

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

114

Tecumseh 34186A

Tank Assembly-Fuel (incl. ref. #115 & 117)

$53.99

$

In Stock, only 1 left!

0

115

Tecumseh 35355

Cap-Fuel
(Superseded to 37845)

$8.99

$

In Stock, Qty 9

0

117

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 20+

0

118

Tecumseh 30962

Line-Fuel

$30.99

$

In Stock, Qty 6

0

118A

Tecumseh 29774

Line-Fuel (8.62)

$34.99

$

In Stock, Qty 6

0

118B

Tecumseh 35857

Valve-Shut Off, Fuel

$13.99

$

Usually ships in 3-12 days

0

119

Tecumseh 650665

Screw (1/4-15x7/8)

$1.99

$

In Stock, only 3 left!

0

120

Tecumseh 650128

Screw

$5.49

$

Usually ships in 3-12 days

0

121

Tecumseh 30622A

Extension-Blower Hsng.

$

$

Not available

124

Tecumseh 650884

Screw, Hex Hd.
(Superseded to 650926)

$1.49

$

In Stock, only 3 left!

0

129

Tecumseh 32589

Key-Flywheel

$1.49

$

In Stock, only 4 left!

0

130

Tecumseh 31843A

Bracket, Governor

$5.49

$

In Stock, only 1 left!

0

131

Tecumseh 650836

Screw (10-24x1/2)
(Superseded to 650965)

$

$

Not available

135

Tecumseh 650760

Screw (8-32 x 3/8)

$1.99

$

In Stock, only 2 left!

0

136

Tecumseh 33013

Screw

$3.99

$

Usually ships in 3-12 days

0

137

Tecumseh 570682

Primer-Asm
(Superseded to 570682A)

$10.99

$

In Stock, only 4 left!

0

138

Tecumseh 32180C

Line-Primer

$6.99

$

In Stock, only 4 left!

0

139

Tecumseh 34443A

Solid State
(Superseded to 34443D)

$44.99

$

Usually ships in 3-12 days

0

139A

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 2 left!

0

140

Tecumseh 650814

Screw
(Superseded to 651007)

$1.99

$

In Stock, only 4 left!

0

141

Tecumseh 650872

Stud
(Superseded to 651024)

$3.99

$

In Stock, only 2 left!

0

142

Tecumseh 611085

Flywheel

$214.99

$

Usually ships in 3-12 days

0

143

Tecumseh 29443

Clip-Wire

$1.99

$

In Stock, Qty 5

0

144

Tecumseh 650542

Screw

$1.99

$

In Stock, only 3 left!

0

146

Tecumseh 35253

Ground Wire

$6.49

$

In Stock, only 2 left!

0

147

Tecumseh 31546

Bushing-Crankshaft

$14.99

$

Usually ships in 3-12 days

0

148

Tecumseh 34126

Bracket

$1.99

$

Usually ships in 3-12 days

0

149

Tecumseh 28545

Grommet

$1.99

$

In Stock, only 4 left!

0

150

Tecumseh 650760

Screw (8-32 x 3/8)

$1.99

$

In Stock, only 2 left!

0

155

Tecumseh 590574

Handle-Starter, Mitten Grip

$5.49

$

Usually ships in 3-12 days

0

163

Tecumseh 32125

Cup-Starter
(Superseded to 37966)

$10.99

$

Usually ships in 3-12 days

0

165

Tecumseh 35392

Plug Starter

$1.99

$

Usually ships in 3-12 days

0

167

Tecumseh 632371A

Carburetor (Incl.ref. #75)

$199.99

$

In Stock, only 2 left!

0

168

Tecumseh 590646

Rewind Starter
(Superseded to 590787)

$53.99

$

Usually ships in 3-12 days

0

169

Tecumseh 33239A

Gasket Set

$35.99

$

Usually ships in 3-12 days

0

421

Tecumseh 730226

Oil-Engine (SAE 5W30)
(Superseded to 730226B)

$13.99

$

In Stock, Qty 9

0
