38072 (724) - Toro 24" Snow Thrower (SN: 200000001 - 200999999) (2000) LINKAGE AND TRACTION ASSEMBLY Parts Diagram

24" Snow Thrower

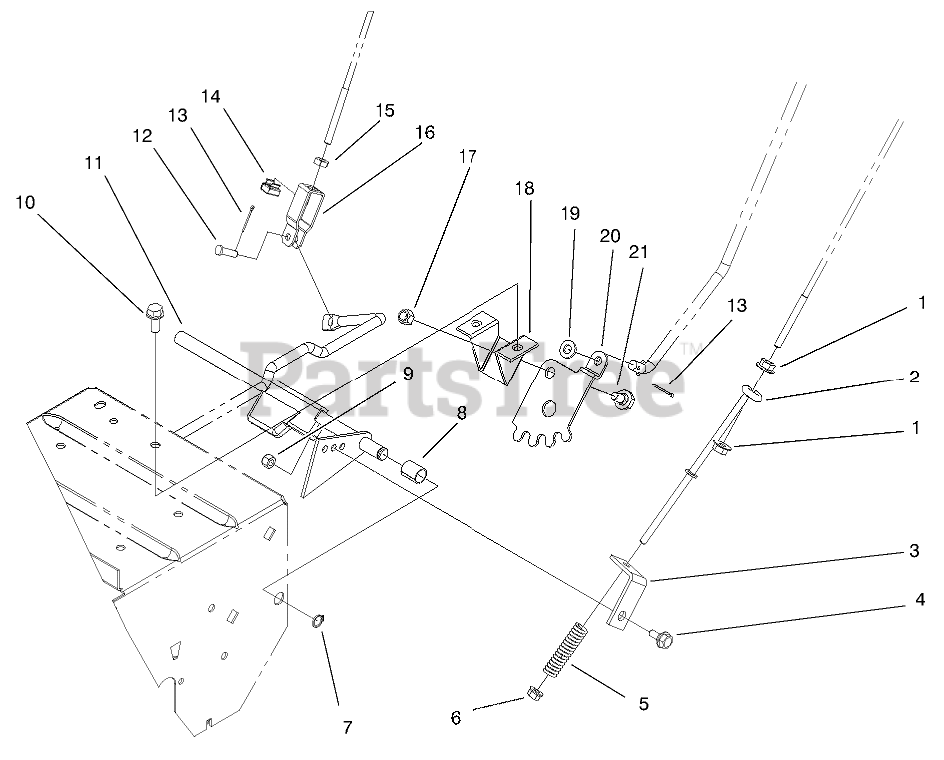

LINKAGE AND TRACTION ASSEMBLY Parts Diagram

  • Title

1

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

2

Toro 39-3060

ROD-TRACTION, LOWER

$45.99

$

Usually ships in 3-6 days

0

3

Toro 38-4490

BRACKET-TRACTION

$12.99

$

Usually ships in 3-6 days

0

4

Toro 40-8350

SCREW

$7.99

$

Usually ships in 3-6 days

0

5

Toro 38-4520

SPRING

$18.99

$

In Stock, only 2 left!

0

6

Toro 32128-32

NUT-HHF

$2.99

$

Usually ships in 3-6 days

0

7

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

8

Toro 40-9680

SPACER

$

$

Not available

9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

10

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

11

Toro 43-7310-03

TRACTION ARM ASM

$90.99

$

Usually ships in 3-6 days

0

12

Toro 283-3

PIN-CLEVIS

$0.99

$

In Stock, only 1 left!

0

13

Toro 3272-4

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

14

Toro 32115-5

NUT-RETAINED

$7.49

$

Usually ships in 3-6 days

0

15

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

16

Toro 39-3080

CLEVIS

$14.99

$

Usually ships in 3-6 days

0

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 37-8790

MOUNT-LEVER

$

$

Not available

19

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 37-8801

GEAR-QUADRANT

$

$

Not available

21

Toro 37-8770

BOLT-SHOULDER

$1.49

$

In Stock, only 2 left!

0
