38072 (724) - Toro 24" Snow Thrower (SN: 200000001 - 200999999) (2000) HANDLE ASSEMBLY Parts Diagram

24" Snow Thrower

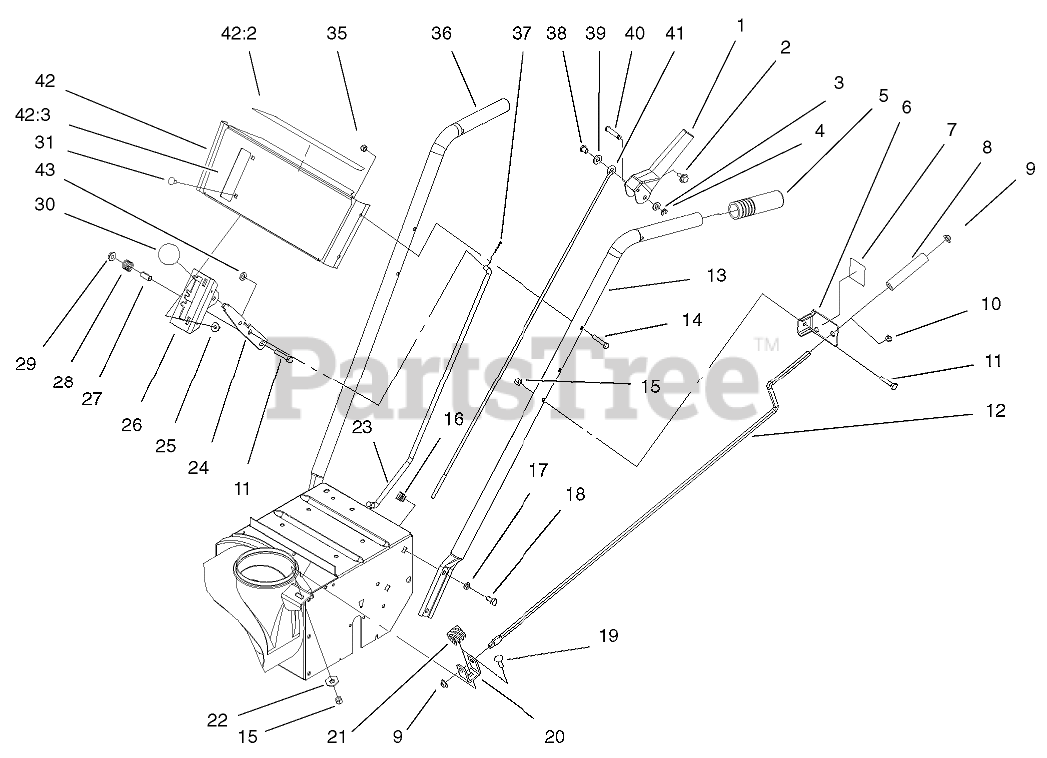

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 63-3640

HANDLE-CONTROL
(Superseded to 94-8887-03)

$

$

Not available

2

Toro 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 32151-73

RING-CLIP

$2.99

$

In Stock, Qty 6

0

5

Toro 74-1360

GRIP-HANDLE

$

$

Not available

6

Toro 25-6090

BRACKET-ROD, CHUTE
(Superseded to 12-7739)

$

$

Not available

7

Toro 63-3510

DECAL-CHUTE DIRECTION

$4.99

$

Usually ships in 3-6 days

0

8

Toro 40-8230

GRIP-CONTROL, CHUTE

$14.99

$

Usually ships in 3-6 days

0

9

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

10

Toro 256-249

Bushing
(Superseded to 5979)

$3.49

$

In Stock, Qty 10

0

11

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 40-8270

ROD-CONTROL, CHUTE

$138.99

$

Usually ships in 3-6 days

0

13

Toro 52-5571-03

HANDLE-LEFT

$

$

Not available

14

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

16

Toro 3290-196

NUT

$8.49

$

Usually ships in 3-6 days

0

17

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

18

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

19

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 2 left!

0

20

Toro 40-8280

BRACKET-WORM

$15.99

$

In Stock, only 1 left!

0

21

Toro 40-8250

GEAR-WORM, CHUTE

$13.99

$

In Stock, only 2 left!

0

22

Toro 3290-238

WASHER-LOCK

$3.49

$

Usually ships in 3-6 days

0

23

Toro 74-1490

ROD-SELECTOR, SPEED

$

$

Not available

24

Toro 37-8821-03

SELECTOR-SPEED

$

$

Not available

25

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

26

Toro 39-1280-03

MOUNT-SELECTOR, SPEED

$

$

Not available

27

Toro 40-8130

SPACER

$9.49

$

In Stock, only 1 left!

0

28

Toro 37-9150

SPRING

$9.49

$

In Stock, only 1 left!

0

29

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

30

Toro 233-21

KNOB

$13.99

$

In Stock, only 1 left!

0

31

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

35

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

36

Toro 52-5561-03

HANDLE-RIGHT

$75.99

$

Usually ships in 3-6 days

0

37

Toro 3272-4

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

38

Toro 47-4990

POST-MOUNTING, LINKAGE

$23.99

$

Usually ships in 3-6 days

0

39

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

40

Toro 52-5600

PIN-LEVER, CONTROL

$9.49

$

Usually ships in 3-6 days

0

41

Toro 52-5590

LINK-UPPER

$19.99

$

Usually ships in 3-6 days

0

42

Toro 100-3568

Panel ASM (only on: 38072)

$132.99

$

Usually ships in 3-6 days

0

42

Toro 100-3569

Panel ASM (only on: 38073)

$

$

Not available

42:2

Toro 99-3215

Decal-Escutcheon Back (only on: 38073)

$

$

Not available

42:2

Toro 99-3214

DecaI-Escutcheon Back (only on: 38072)

$

$

Not available

42:3

Toro 100-3437

DECAL-ESCUTCHEON

$43.99

$

Usually ships in 3-6 days

0

43

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
