38072 (724) - Toro 24" Snow Thrower (SN: 200000001 - 200999999) (2000) CHUTE AND AUGER ASSEMBLY Parts Diagram

24" Snow Thrower

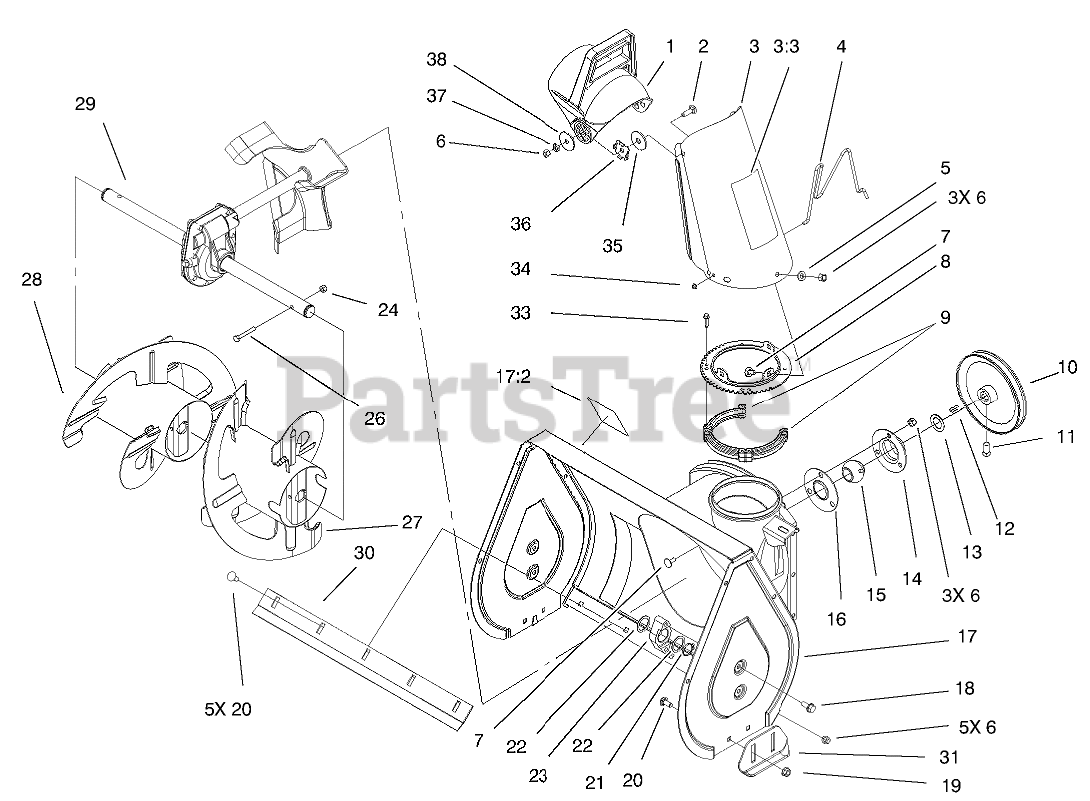

CHUTE AND AUGER ASSEMBLY Parts Diagram

  • Title

1

Toro 56-2680

CHUTE-DEFLECTOR

$23.99

$

In Stock, only 1 left!

0

2

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 2 left!

0

3

Toro 94-2792

Chute ASM (only on: 38073)

$

$

Not available

3

Toro 94-2793

Chute ASM (only on: 38072)

$

$

Not available

3:3

Toro 94-2558

Decal-Danger (only on: 38073)

$42.99

$

In Stock, only 1 left!

0

3:3

Toro 94-8079

Decal-Danger (only on: 38072)

$11.99

$

Usually ships in 3-6 days

0

4

Toro 56-2670

WIRE-CHUTE

$21.99

$

Usually ships in 3-6 days

0

5

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 5

0

8

Toro 37-8941-03

RING-CHUTE

$76.99

$

Usually ships in 3-6 days

0

9

Toro 37-6490

RING-CHUTE, RETAINER

$19.99

$

In Stock, Qty 5

0

10

Toro 37-6890

PULLEY

$216.99

$

Usually ships in 3-6 days

0

11

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, only 2 left!

0

12

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, Qty 7

0

13

Toro 3-0737

WASHER

$9.49

$

In Stock, only 3 left!

0

14

Toro 26-6110

FLANGE-CUP, BEARING

$6.49

$

In Stock, Qty 11

0

15

Toro 63-3450

BEARING-BALL

$23.99

$

In Stock, Qty 10

0

16

Toro 26-6120

FLANGE-CUP, BEARING

$4.49

$

In Stock, Qty 10

0

17

Toro 94-2786

Auger Housing ASM (only on: 38072)

$

$

Not available

17

Toro 94-2785

Auger Housing ASM (only on: 38073)

$712.99

$

In Stock, only 1 left!

0

17:2

Toro 94-2568

Decal-Warning, Auger (only on: 38073)

$10.99

$

In Stock, only 3 left!

0

17:2

Toro 53-7670

Decal-Warning, Auger (only on: 38072)
(Superseded to 94-2568)

$10.99

$

In Stock, only 3 left!

0

18

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

19

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

20

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

21

Toro 32151-36

RING-RETAINING

$4.99

$

In Stock, only 2 left!

0

22

Toro 5-1550

WASHER

$7.49

$

Usually ships in 3-6 days

0

23

Toro 37-6550

BEARING-AUGER
(Superseded to 136-8685)

$74.99

$

In Stock, only 2 left!

0

24

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

26

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Toro 74-1590-03

24 INCH LH AUGER ASM

$336.99

$

Usually ships in 3-6 days

0

28

Toro 74-1600-03

24 INCH RH AUGER ASM

$

$

Not available

29

Toro 37-6961

24" GEAR CASE ASM

$1308.99

$

Usually ships in 3-6 days

0

30

Toro 100-3555-01

BLADE-SCRAPER, 24 INCH

$107.99

$

In Stock, only 1 left!

0

31

Toro 40-8160-01

SKID

$28.99

$

In Stock, Qty 16

0

33

Toro 27-0220

SCREW-SPECIAL

$7.99

$

In Stock, only 4 left!

0

34

Toro 3290-326

NUT-PUSH

$5.49

$

Usually ships in 3-6 days

0

35

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 8

0

36

Toro 55-8950

PLATE-FRICTION

$8.99

$

Usually ships in 3-6 days

0

37

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

38

Toro 3256-68

WASHER-FLAT

$2.99

$

In Stock, only 4 left!

0
