38072 (724) - Toro 24" Snow Thrower (SN: 099000001 - 099999999) (1999) HANDLE ASSEMBLY LEFT SIDE Parts Diagram

24" Snow Thrower

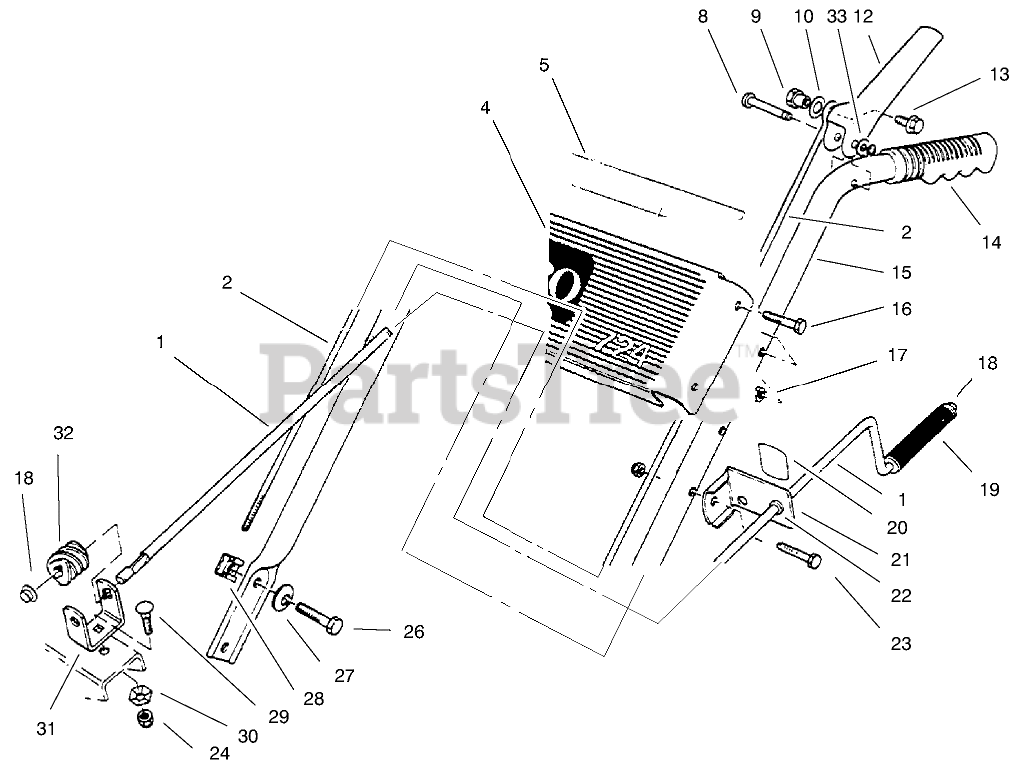

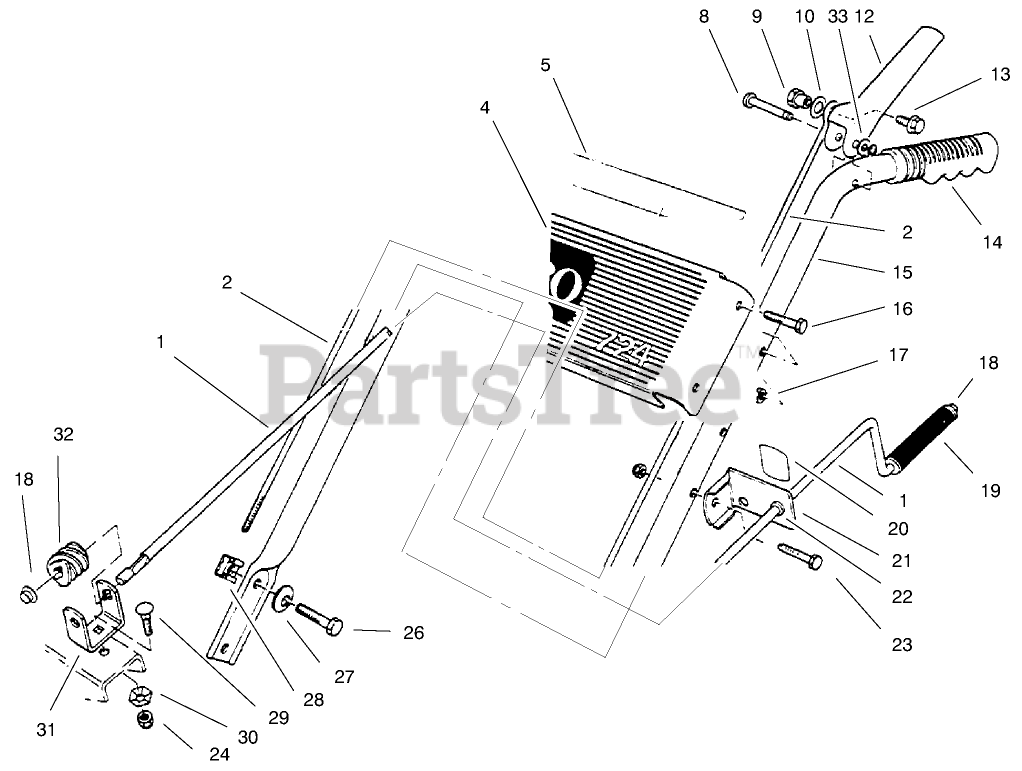

HANDLE ASSEMBLY LEFT SIDE Parts Diagram

  • Title
1

Toro 40-8270

ROD-CONTROL, CHUTE

$161.99

$

Usually ships in 3-6 days

0

2

Toro 52-5590

LINK-UPPER

$23.99

$

Usually ships in 3-6 days

0

4

Panel-Escutcheon Ref.

$

$

Not available

5

Toro 99-3214

DECAL-ESCUTHEON BACK

$

$

Not available

Toro 99-3215

DECAL-ESCUTCHEON BACK

Note: Not illustrated

$

$

Not available

8

Toro 52-5600

PIN-LEVER, CONTROL

$28.99

$

Usually ships in 3-6 days

0

9

Toro 47-4990

POST-MOUNTING, LINKAGE

$27.99

$

Usually ships in 3-6 days

0

10

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 63-3640

HANDLE-CONTROL
(Superseded to 94-8887-03)

$

$

Not available

13

Toro 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

14

Toro 74-1360

GRIP-HANDLE

$

$

Not available

15

Toro 52-5571-03

HANDLE-LEFT

$

$

Not available

16

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

17

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

18

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

19

Toro 40-8230

GRIP-CONTROL, CHUTE

$16.99

$

Usually ships in 3-6 days

0

20

Toro 63-3510

DECAL-CHUTE DIRECTION

$5.99

$

Usually ships in 3-6 days

0

21

Toro 12-7739

Bracket-Chute Control (Incl. Ref.# 20 & 22)

$

$

Not available

22

Toro 256-249

Bushing
(Superseded to 5979)

$3.49

$

In Stock, Qty 20+

0

23

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

26

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

27

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

28

$9.99

$

Usually ships in 3-6 days

0

29

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

30

Toro 3290-238

WASHER-LOCK

$3.99

$

Usually ships in 3-6 days

0

31

Toro 40-8280

BRACKET-WORM

$18.99

$

In Stock, only 1 left!

0

32

Toro 40-8250

GEAR-WORM, CHUTE

$15.99

$

In Stock, only 1 left!

0

33

Toro 32151-73

RING-CLIP

$3.49

$

In Stock, Qty 6

0
