38072 (724) - Toro 24" Snow Thrower (SN: 079000001 - 079999999) (1997) ELECTRIC STARTER KIT NO. 38-7590 (OPTIONAL) Parts Diagram

24" Snow Thrower

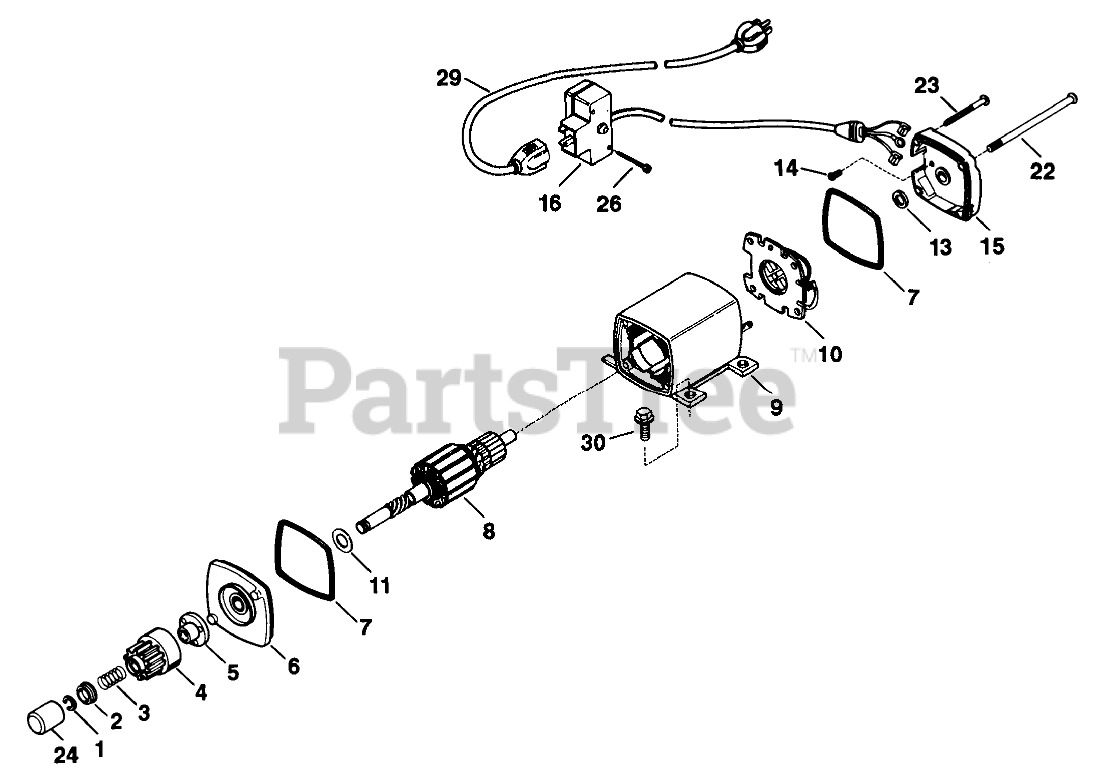

ELECTRIC STARTER KIT NO. 38-7590 (OPTIONAL) Parts Diagram

  • Title

1

Tecumseh 33842

Ring-Retainer

$3.99

$

In Stock, Qty 5

0

2

Tecumseh 33430

Retainer-Spring
(Superseded to 33843)

$7.99

$

In Stock, only 1 left!

0

3

Tecumseh 33431

Spring-Anti Drift

$3.99

$

Usually ships in 3-12 days

0

4

Tecumseh 33432

Gear

$40.99

$

Usually ships in 3-12 days

0

5

Tecumseh 35913

Nut & Retainer (Incl. Ref. #1)
(Superseded to 35893)

$15.99

$

In Stock, only 1 left!

0

6

Tecumseh 35449

Cap Assembly-Drive End (Incl. Ref. #7)

$36.99

$

Usually ships in 3-12 days

0

7

Tecumseh 35450

O-Ring

$3.99

$

Usually ships in 3-12 days

0

8

Tecumseh 35914

Armature

$

$

Not available

9

Tecumseh 35457A

Housing Assembly

$

$

Not available

10

Tecumseh 35452A

Brush Card ASM

$58.99

$

In Stock, only 1 left!

0

11

Tecumseh 35911

Washer-Thrust

$5.99

$

In Stock, only 1 left!

0

13

Tecumseh 590500

Washer-Thrust

$1.99

$

In Stock, only 1 left!

0

14

Tecumseh 33441

Screw-Ground

$

$

Not available

15

Tecumseh 35453

Cap Assy., Commutator End (Incl. Ref. #7)

$41.99

$

Usually ships in 3-12 days

0

16

Tecumseh 35454

Box Assembly-Switch (Incl. Ref. #26)

$

$

Not available

22

Tecumseh 35458

Bolt-Case

$

$

Not available

23

Tecumseh 35456

Screw-Ground

$1.99

$

In Stock, only 3 left!

0

24

Tecumseh 33451

Cover-Dust

$3.49

$

In Stock, only 4 left!

0

26

Tecumseh 650819

Screw

$1.99

$

Usually ships in 3-12 days

0

29

Tecumseh 32450B

Cord-Extension (10-6)

$

$

Not available

30

Tecumseh 30063

Screw

$1.99

$

In Stock, Qty 20+

0
