38072 (724) - Toro 24" Snow Thrower (SN: 069000001 - 069999999) (1996) ENGINE TECUMSEH MODEL HSK70-130282S Parts Diagram

24" Snow Thrower

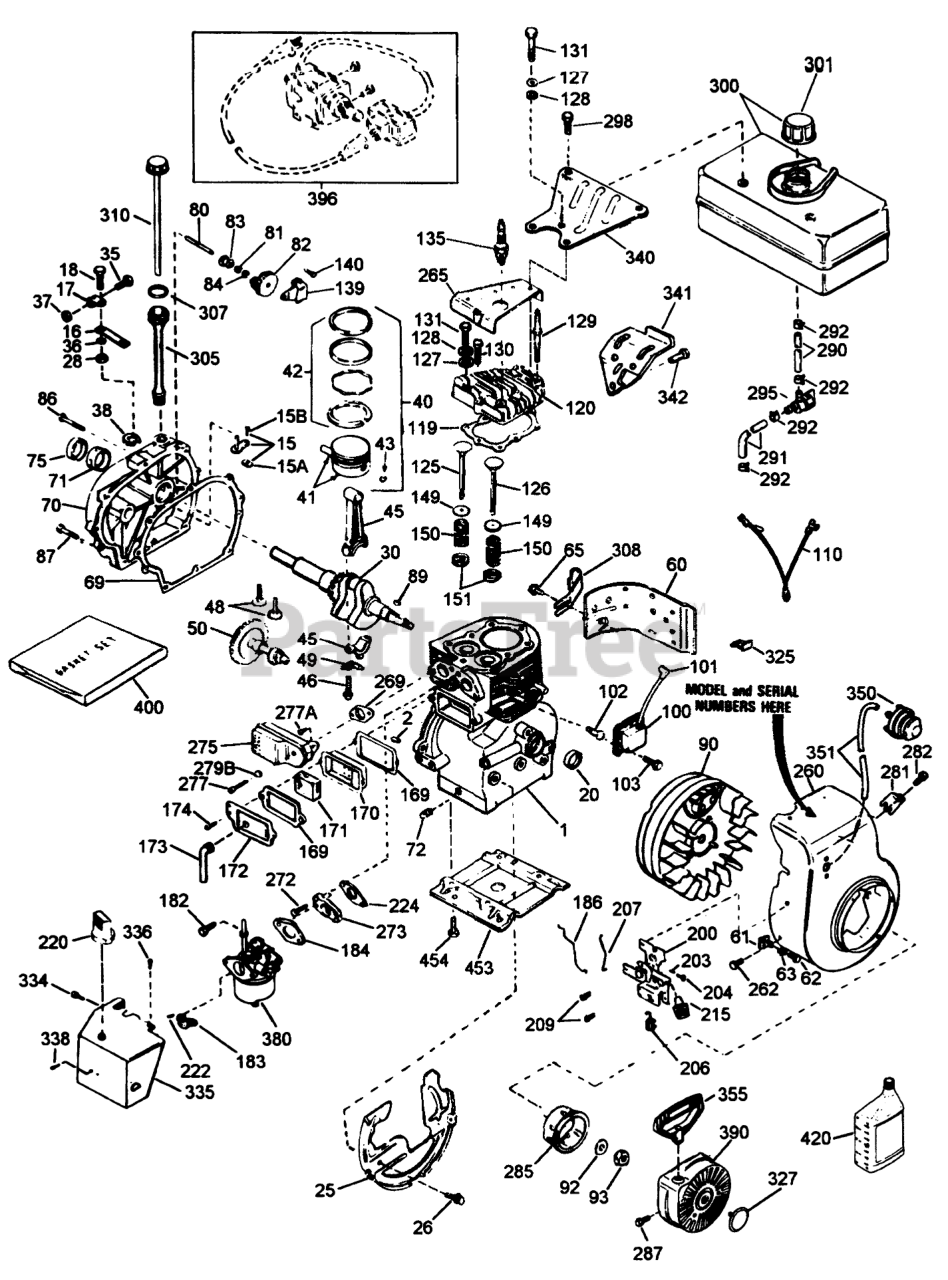

ENGINE TECUMSEH MODEL HSK70-130282S Parts Diagram

  • Title

1

Tecumseh 32586C

Cylinder (Incl. Ref. #2 & 20)

$

$

Not available

2

Tecumseh 27652

Pin-Dowel

$2.49

$

Usually ships in 3-12 days

0

15

Tecumseh 30699C

Governor Rod (Incl. Ref. #15A & 15B)

$17.99

$

In Stock, only 1 left!

0

15A

Tecumseh 30700

Yoke-Governor

$1.99

$

In Stock, only 1 left!

0

15B

Tecumseh 650494

Screw (6-40x5/16)

$1.99

$

Usually ships in 3-12 days

0

16

Tecumseh 33454

Lever-Governor
(Superseded to 33454A)

$10.99

$

In Stock, only 1 left!

0

17

Tecumseh 29916

Clamp-Lever, Governor

$1.99

$

In Stock, only 2 left!

0

18

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 9

0

20

Tecumseh 32630

Oil Seal

$8.49

$

Usually ships in 3-12 days

0

25

Tecumseh 35326

Baffle-Blower Housing
(Superseded to 37853)

$11.99

$

In Stock, only 1 left!

0

26

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

28

Tecumseh 30322

Nut-Lock

$1.99

$

Usually ships in 3-12 days

0

30

Tecumseh 35272

Crankshaft

$

$

Not available

35

Tecumseh 29826

Screw

$1.99

$

In Stock, only 4 left!

0

36

Tecumseh 29918

Washer-Lock

$1.99

$

In Stock, Qty 5

0

37

Tecumseh 29216

Nut-Lock

$1.99

$

In Stock, only 3 left!

0

38

Tecumseh 29642

Ring-Retaining

$100.99

$

In Stock, only 2 left!

0

40

Tecumseh 34518

Piston, Pin & Ring Set (.010" OS)

$

$

Not available

40

Tecumseh 34519

Piston, Pin & Ring Set (Std.)

$

$

Not available

40

Tecumseh 34517

Piston, Pin & Ring Set (Std.)

$

$

Not available

41

Tecumseh 32593B

Piston & Pin Ass-y (.020" OS)(Incl. Ref. #43)

$57.99

$

In Stock, only 1 left!

0

41

Tecumseh 32594B

Piston & Pin Ass-y (.020" OS) (Incl. Ref. #43)

$61.99

$

Usually ships in 3-12 days

0

41

Tecumseh 32592B

Piston & Pin Ass-y (Std.) (Incl. Ref. #43)

$52.99

$

In Stock, only 1 left!

0

42

Tecumseh 32595

"O"Ring

$

$

Not available

42

Tecumseh 32597

Ring Set (.020" OS)

$

$

Not available

42

Tecumseh 32596

Ring Set (.010" OS)

$

$

Not available

43

Tecumseh 27888

Ring-Retaining, Piston Pin

$1.99

$

Usually ships in 3-12 days

0

45

Tecumseh 32591C

Connecting Rod Ass-y (Incl. Ref. #46 & 49)

$

$

Not available

46

Tecumseh 650662C

Bolt-Connecting Rod

$3.99

$

Usually ships in 3-12 days

0

48

Tecumseh 34034

Lifter-Valve
(Superseded to 34034A)

$10.99

$

In Stock, only 3 left!

0

49

Tecumseh 34242

Dipper-Oil

$

$

Not available

50

Tecumseh 32115

55012A GIL SNWTHWR

$

$

Not available

60

Tecumseh 30622A

Extension-Blower Hsng.

$

$

Not available

61

Tecumseh 34126

Bracket

$1.99

$

Usually ships in 3-12 days

0

62

Tecumseh 650760

Screw (8-32 x 3/8)

$1.99

$

In Stock, only 3 left!

0

63

Tecumseh 28545

Grommet

$1.99

$

In Stock, Qty 5

0

65

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

69

Tecumseh 30684

Gasket-Cover, Cylinder

$4.49

$

In Stock, Qty 6

0

70

Tecumseh 31303C

Cylinder Cover (Incl. Ref. #71, 75, & 80)

Note: Included in Gasket Set Ref. Num 400.

$128.99

$

Usually ships in 3-12 days

0

71

Tecumseh 31546

Bushing-Crankshaft

$14.99

$

Usually ships in 3-12 days

0

72

Tecumseh 27642

Plug-Drain, Oil (SQH 1/4-18)

$1.99

$

In Stock, only 2 left!

0

75

Tecumseh 28427

Oil Seal

$6.99

$

In Stock, only 2 left!

0

80

Tecumseh 31845

Shaft-Governor
(Superseded to 37587)

$

$

Not available

81

Tecumseh 30590A

Washer-Flat

$1.99

$

In Stock, Qty 7

0

82

Tecumseh 30591

Governor Gear ASM

$13.99

$

In Stock, only 1 left!

0

83

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, only 4 left!

0

84

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, only 4 left!

0

86

Tecumseh 650488

Screw (1/4-20 x 1-1/4)

$1.99

$

Usually ships in 3-12 days

0

87

Tecumseh 650493

Screw

$3.99

$

In Stock, Qty 7

0

89

Tecumseh 32589

Key-Flywheel

$1.49

$

In Stock, Qty 6

0

90

Tecumseh 611085

Flywheel

$214.99

$

Usually ships in 3-12 days

0

92

Tecumseh 650815

Washer-Belleville

$1.99

$

In Stock, Qty 10

0

93

Tecumseh 650871

Flywheel Nut

$

$

Not available

100

Tecumseh 34443A

Solid State
(Superseded to 34443D)

$44.99

$

In Stock, only 1 left!

0

101

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 3 left!

0

102

Tecumseh 650872

Stud
(Superseded to 651024)

$3.99

$

In Stock, only 2 left!

0

103

Tecumseh 650814

Screw
(Superseded to 651007)

$1.99

$

In Stock, only 4 left!

0

110

Tecumseh 35253

Ground Wire

$6.49

$

In Stock, only 2 left!

0

119

Tecumseh 36453

Cylinder Head Gasket
(Superseded to 32631A)

Note: Included in Gasket Set Ref. Num 400.

$11.99

$

In Stock, Qty 10

0

120

Tecumseh 36446

Cylinder Head (Incl. 3 of 131)

$

$

Not available

125

Tecumseh 27878A

Exhaust Valve (Std.) (Incl. Ref. #151)

$23.99

$

Usually ships in 3-12 days

0

125

Tecumseh 27880A

Exhaust Valve (1/32" OS) (Incl. Ref. #151)

$

$

Not available

126

Tecumseh 32784

Intake Valve (1/32" OS) (Incl. Ref. #151)

$69.99

$

Usually ships in 3-12 days

0

126

Tecumseh 32783

Intake Valve (Std.) (Incl. Ref. #151)

$16.99

$

In Stock, only 2 left!

0

127

Tecumseh 650691

Washer-Flat

$1.99

$

Usually ships in 3-12 days

0

128

Tecumseh 650690

Washer-Belleville
(Superseded to 730324)

$9.99

$

In Stock, only 1 left!

0

129

Tecumseh 650697A

Screw (5/16-18 X 2-1/2)

$1.99

$

In Stock, Qty 11

0

130

Tecumseh 650697A

Screw (5/16-18 X 2-1/2)

$1.99

$

In Stock, Qty 11

0

131

Tecumseh 650697A

Screw (5/16-18 X 2-1/2)

$1.99

$

In Stock, Qty 11

0

135

Tecumseh 35395

Spark Plug-Resistor (R J19 L M)

$3.49

$

In Stock, Qty 15

0

139

Tecumseh 31843A

Bracket, Governor

$5.49

$

In Stock, only 1 left!

0

140

Tecumseh 650965

Screw, Torx T-25

$

$

Not available

149

Tecumseh 27882

Cap-Spring, Valve

$1.99

$

In Stock, only 4 left!

0

150

Tecumseh 27881

Spring-Valve

$3.99

$

In Stock, only 2 left!

0

151

Tecumseh 32581

Keeper-Spring, Valve

$6.49

$

In Stock, Qty 10

0

169

Tecumseh 27896A

Gasket-Cover, Valve

Note: Included in Gasket Set Ref. Num 400.

$1.49

$

In Stock, Qty 8

0

170

Tecumseh 28423

Body-Breather

$13.99

$

In Stock, only 1 left!

0

171

Tecumseh 28424

Element-Breather

$3.99

$

In Stock, only 3 left!

0

172

Tecumseh 28425

Cover-Valve

$7.49

$

In Stock, only 1 left!

0

173

Tecumseh 35350

Tube-Breather

$6.49

$

Usually ships in 3-12 days

0

174

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

182

Tecumseh 650517

Screw (T-30, 1/4-20 X 27-32)

$1.99

$

In Stock, only 1 left!

0

183

Tecumseh 32398

Bracket-Choke

$19.99

$

In Stock, only 3 left!

0

184

Tecumseh 31688A

Gasket-Carburetor

Note: Included in Gasket Set Ref. Num 400.

$2.49

$

In Stock, only 2 left!

0

186

Tecumseh 34661

Governor Link

$6.99

$

In Stock, only 4 left!

0

200

Tecumseh 34677

Control Bracket (Incl. Ref. #203, 204, & 206)

$54.99

$

In Stock, only 1 left!

0

203

Tecumseh 31342

Spring-Compression

$5.99

$

In Stock, only 1 left!

0

204

Tecumseh 650549

Screw
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

206

Tecumseh 610973

Terminal

$3.99

$

In Stock, Qty 5

0

207

Tecumseh 34662

Link-Throttle

$4.49

$

In Stock, only 4 left!

0

209

Tecumseh 650821

Screw (10-32 x 1/2)

$1.99

$

In Stock, only 3 left!

0

215

Tecumseh 35440

Knob-Control

$3.99

$

In Stock, only 1 left!

0

220

Tecumseh 35439

Knob-Choke

$3.99

$

In Stock, only 2 left!

0

222

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

$4.49

$

In Stock, only 3 left!

0

224

Tecumseh 27915A

Gasket-Pipe, Intake

Note: Included in Gasket Set Ref. Num 400.

$5.99

$

In Stock, Qty 19

0

260

Tecumseh 36154

Blower Housing

$7.49

$

In Stock, only 1 left!

0

262

Tecumseh 29747B

Screw

$1.99

$

In Stock, Qty 9

0

265

Tecumseh 30939A

Cover-Head, Cylinder
(Superseded to 30939B)

$

$

Not available

269

Tecumseh 35865

Gasket-Exhaust

Note: Included in Gasket Set Ref. Num 400.

$2.49

$

In Stock, only 2 left!

0

272

Tecumseh 30196

Screw

$1.99

$

In Stock, Qty 8

0

273

Tecumseh 34712

481-1279 SENATOR RO

$

$

Not available

275

Tecumseh 32401

Muffler

$35.99

$

In Stock, only 1 left!

0

277

Tecumseh 650694A

Screw (5/16-18 X 2)

$3.49

$

In Stock, Qty 20+

0

277A

Tecumseh 30196

Screw

$1.99

$

In Stock, Qty 8

0

279B

Tecumseh 26073

Washer

$

$

Not available

281

Tecumseh 33013

Screw

$3.99

$

Usually ships in 3-12 days

0

282

Tecumseh 650760

Screw (8-32 x 3/8)

$1.99

$

In Stock, only 3 left!

0

285

Tecumseh 32125

Cup-Starter
(Superseded to 37966)

$10.99

$

Usually ships in 3-12 days

0

287

Tecumseh 650926

Screw (8-32 x 21/64)

$1.49

$

In Stock, only 3 left!

0

290

Tecumseh 29774

Line-Fuel (8.62)

$34.99

$

In Stock, Qty 6

0

291

Tecumseh 30962

Line-Fuel

$30.99

$

In Stock, Qty 6

0

292

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 20+

0

295

Tecumseh 35857

Valve-Shut Off, Fuel

$13.99

$

Usually ships in 3-12 days

0

298

Tecumseh 650665

Screw (1/4-15x7/8)

$1.99

$

In Stock, only 3 left!

0

299

Tecumseh 650764

Nut-U Type

$1.99

$

Usually ships in 3-12 days

0

300

Tecumseh 34186A

Fuel Tank (Incl. Ref. #292 & 301)

$53.99

$

In Stock, only 1 left!

0

301

Tecumseh 35355

Cap-Fuel
(Superseded to 37845)

$8.99

$

In Stock, Qty 10

0

305

Tecumseh 35554

Tube-Fill, Oil

$19.99

$

In Stock, only 1 left!

0

307

Tecumseh 35499

O-Ring

$1.49

$

In Stock, only 3 left!

0

308

Tecumseh 35540

Clip-Tube, Fill

$1.99

$

In Stock, only 2 left!

0

310

Tecumseh 35555

Dipstick
(Superseded to 36205)

$10.99

$

In Stock, only 1 left!

0

325

Tecumseh 29443

Clip-Wire

$1.99

$

In Stock, Qty 5

0

327

Tecumseh 35392

Plug Starter

$1.99

$

Usually ships in 3-12 days

0

334

Tecumseh 650257

Screw (8-32 X 5/16)

$1.49

$

In Stock, Qty 17

0

335

Tecumseh 35060

Carburetor Cover
(Superseded to 35060A)

$

$

Not available

336

Tecumseh 650765

Screw (10-32x1/2)

$1.49

$

In Stock, only 4 left!

0

338

Tecumseh 650760

Screw (8-32 x 3/8)

$1.99

$

In Stock, only 3 left!

0

340

Tecumseh 34159

Bracket-Fuel Tank

$18.99

$

In Stock, only 1 left!

0

341

Tecumseh 34158

Bracket-Fuel Tank

$11.99

$

Usually ships in 3-12 days

0

342

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

350

Tecumseh 570682

Primer-Asm
(Superseded to 570682A)

$10.99

$

In Stock, only 4 left!

0

351

Tecumseh 32180C

Line-Primer

$6.99

$

In Stock, only 4 left!

0

355

Tecumseh 590574

Handle-Starter, Mitten Grip

$5.49

$

Usually ships in 3-12 days

0

380

Tecumseh 632371A

Carburetor (Incl. Ref. #184)

$199.99

$

In Stock, only 2 left!

0

390

Tecumseh 590646

Rewind Starter
(Superseded to 590787)

$53.99

$

Usually ships in 3-12 days

0

396

Tecumseh 33329D

Starter-Electric (110 Volt)
(Superseded to 33329E)

$

$

Not available

400

Tecumseh 33239A

Gasket Set

$35.99

$

Usually ships in 3-12 days

0

420

Tecumseh 730225

4 Cycle Oil, SAE 30 (Quart)
(Superseded to 730225A)

$8.99

$

In Stock, only 2 left!

0

453

Toro 29058

Engine Mounting Base

$

$

Currently unavailable

454

Tecumseh 650542

Screw

$1.99

$

In Stock, only 3 left!

0
