38072 (724) - Toro 24" Snow Thrower (SN: 069000001 - 069999999) (1996) CARBURETOR NO. 632371A Parts Diagram

24" Snow Thrower

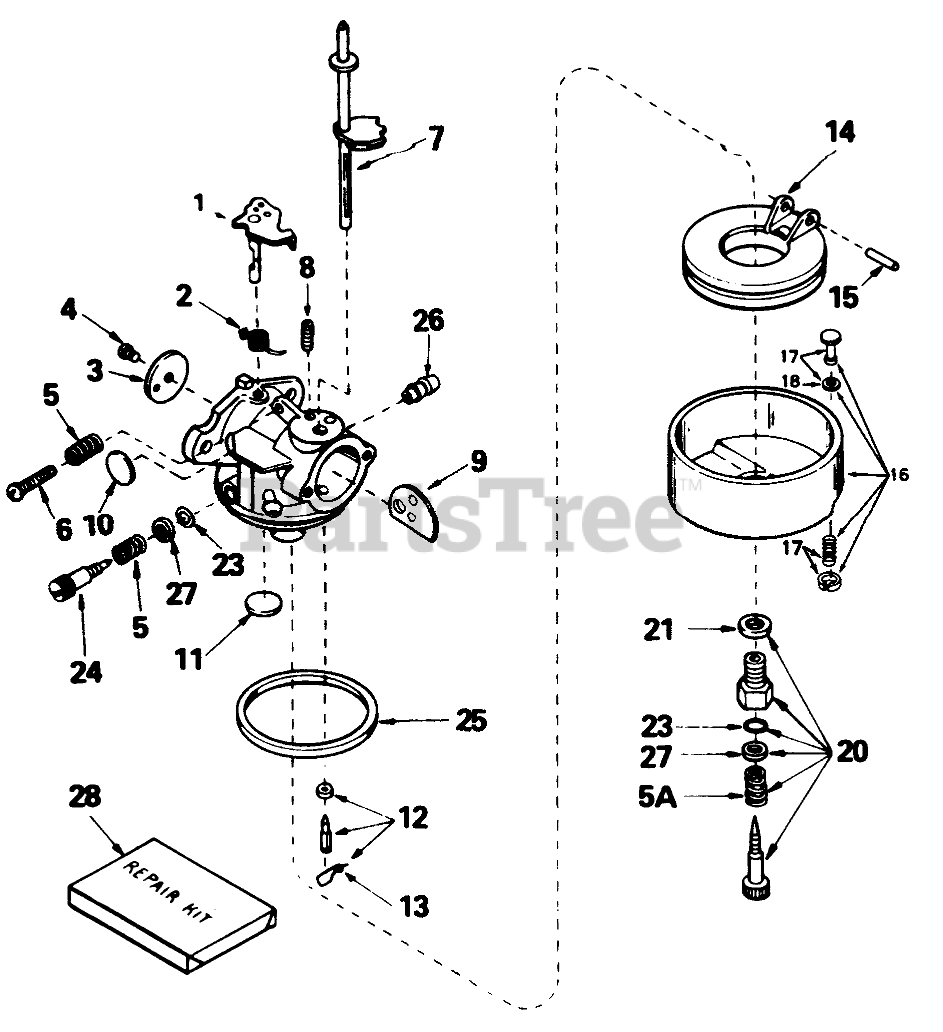

CARBURETOR NO. 632371A Parts Diagram

  • Title

1

Tecumseh 31834

Shaft/Lever-Throttle

$9.49

$

Usually ships in 3-12 days

0

2

Tecumseh 631767

Spring-Return, Throttle

$1.99

$

In Stock, only 4 left!

0

3

Tecumseh 631036

Shutter-Throttle

$1.99

$

Usually ships in 3-12 days

0

4

Tecumseh 650506

Screw-Shutter

$1.49

$

In Stock, Qty 14

0

5

Tecumseh 630766

Spring-Tension

$1.99

$

In Stock, Qty 5

0

5A

Tecumseh 630738

Spring

$1.99

$

In Stock, Qty 8

0

6

Tecumseh 650417

Screw-Throttle Crack Screw / Idle Speed
(Superseded to 651025)

$1.99

$

In Stock, only 4 left!

0

7

Tecumseh 632373

Shaft-Choke

$3.99

$

In Stock, Qty 5

0

8

Tecumseh 630735

Spring-Positioning, Choke

$1.99

$

In Stock, only 4 left!

0

9

Tecumseh 632372

Shutter-Choke
(Superseded to 640111)

$1.99

$

Usually ships in 3-12 days

0

10

Tecumseh 630748

Plug-Welch, Idle Mixture Well

Note: Included in Repair Kit Part No. 31840.

$1.99

$

In Stock, only 1 left!

0

11

Tecumseh 631027

Plug-Welch, Atmospheric Vent

Note: Included in Repair Kit Part No. 31840.

$1.99

$

In Stock, only 4 left!

0

12

Tecumseh 631021

Inlet Needle-Seat & Clip (Incl. Ref. #13)
(Superseded to 631021B)

Note: Included in Repair Kit Part No. 31840.

$6.99

$

In Stock, Qty 20+

0

13

Tecumseh 631022

Clip-Spring

$1.99

$

In Stock, only 4 left!

0

14

Tecumseh 632019

Float
(Superseded to 632019A)

$7.49

$

In Stock, Qty 7

0

15

Tecumseh 631024

Shaft-Float

Note: Included in Repair Kit Part No. 31840.

$1.99

$

In Stock, Qty 10

0

16

Tecumseh 631951

Bowl-Assembly (Incl. Ref. #17 & 18)

$17.99

$

In Stock, only 2 left!

0

17

Tecumseh 27136A

Drain Assembly-Bowl (Incl. Ref. #18)

$7.49

$

In Stock, only 1 left!

0

18

Tecumseh 27554

Gasket-Plunger, Drain

$1.49

$

In Stock, Qty 15

0

20

Tecumseh 31839

Screw Adjustment Assembly (Incl. Ref. #5A, 21, 23, & 27)

Note: Included in Repair Kit Part No. 31840.

$15.99

$

In Stock, only 1 left!

0

21

Tecumseh 27110

Washer-Bowl Nut
(Superseded to 27110A)

$2.49

$

In Stock, only 3 left!

0

23

Tecumseh 630740

"O"Ring

Note: Included in Repair Kit Part No. 31840.

$2.49

$

Usually ships in 3-12 days

0

24

Tecumseh 631838

Screw-Idle

Note: Included in Repair Kit Part No. 31840.

$3.99

$

In Stock, only 2 left!

0

25

Tecumseh 631028

O Ring-Bowl, Float
(Superseded to 631028A)

Note: Included in Repair Kit Part No. 31840.

$2.49

$

In Stock, Qty 18

0

26

Tecumseh 632164

Fitting-Fuel

$3.99

$

In Stock, only 1 left!

0

27

Tecumseh 630739

Washer

$1.99

$

In Stock, Qty 6

0

28

Tecumseh 31840

Kit-Repair

$20.99

$

In Stock, Qty 6

0

Tecumseh 632371A

Carburetor (Incl. Ref. #1-28)

Note: Not illustrated

$199.99

$

In Stock, only 2 left!

0
