38066 (824 XL) - Toro 24" Power Throw Snow Thrower (SN: 220000001 - 220999999) (2002) CARBURETOR TECUMSEH NO. 640052 (MODEL NO. 38086 ONLY) Parts Diagram

24" Power Throw Snow Thrower

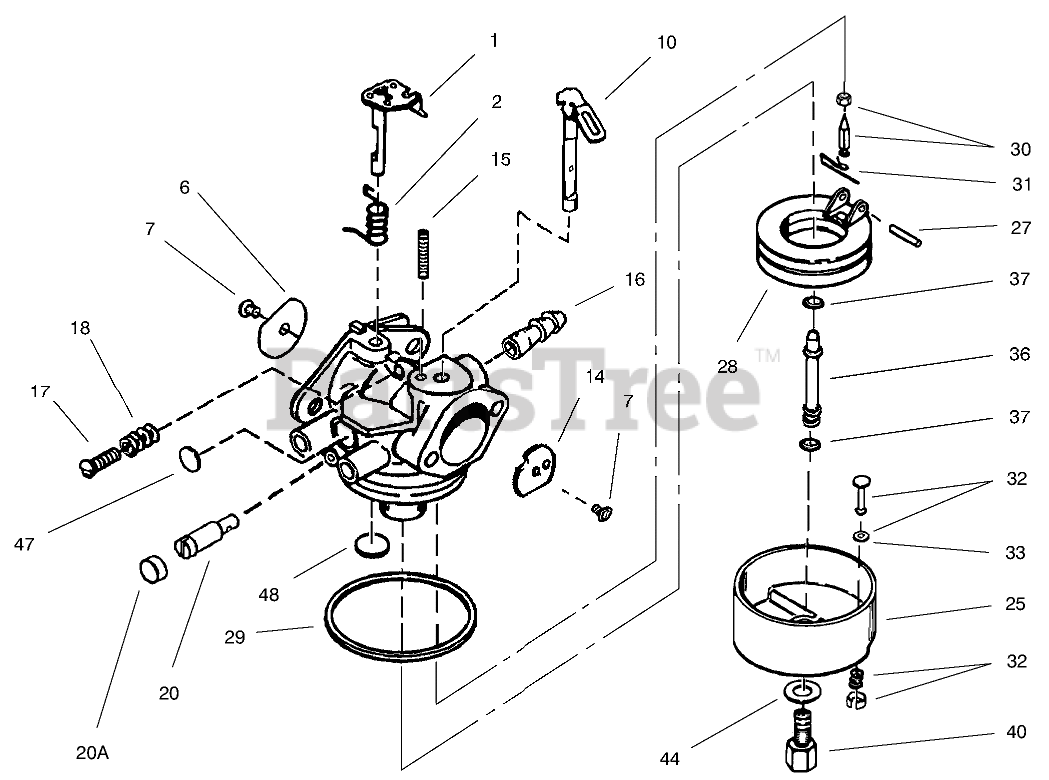

CARBURETOR TECUMSEH NO. 640052 (MODEL NO. 38086 ONLY) Parts Diagram

  • Title

1

Tecumseh 631776A

Throttle Shaft and Lever ASM

Note: Original Tecumseh Part

$16.99

$

Usually ships in 3-12 days

0

2

Tecumseh 631970

Spring-Return, Throttle

Note: Original Tecumseh Part

$4.49

$

Usually ships in 3-12 days

0

6

Tecumseh 631778

Shutter-Throttle

Note: Original Tecumseh Part

$1.99

$

In Stock, only 3 left!

0

7

Tecumseh 650506

Screw-Shutter

Note: Original Tecumseh Part

$1.49

$

In Stock, Qty 16

0

10

Tecumseh 632112

Choke Shaft and Lever ASM

Note: Original Tecumseh Part

$7.49

$

Usually ships in 3-12 days

0

14

Tecumseh 632174

Shutter-Choke

Note: Original Tecumseh Part

$4.49

$

Usually ships in 3-12 days

0

15

Tecumseh 630735

Spring-Positioning, Choke

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

16

Tecumseh 632164

Fitting-Fuel

Note: Original Tecumseh Part

$3.99

$

In Stock, only 1 left!

0

17

Tecumseh 650417

Screw-Throttle Crack Screw / Idle Speed
(Superseded to 651025)

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 5

0

18

Tecumseh 630766

Spring-Tension

Note: Original Tecumseh Part

$1.99

$

In Stock, only 2 left!

0

20

Tecumseh 640016

Screw-Restrictor, Idle

Note: Original Tecumseh Part

$9.49

$

In Stock, Qty 9

0

20A

Tecumseh 640053

Cap-Screw, Idle Restrictor

Note: Original Tecumseh Part

$1.49

$

In Stock, Qty 5

0

25

Tecumseh 631951

Float Bowl Assembly (Incl. Ref. #32 & 33)

Note: Original Tecumseh Part

$17.99

$

Usually ships in 3-12 days

0

27

Tecumseh 631024

Shaft-Float

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 11

0

28

Tecumseh 632019

Float
(Superseded to 632019A)

Note: Original Tecumseh Part

$7.49

$

In Stock, Qty 10

0

29

Tecumseh 631028

O Ring-Bowl, Float
(Superseded to 631028A)

Note: Original Tecumseh Part

$2.49

$

In Stock, Qty 14

0

30

Tecumseh 631021

Inlet Needle, Seat & Clip Asm (Incl. Ref. #31)
(Superseded to 631021B)

Note: Original Tecumseh Part

$6.99

$

In Stock, Qty 5

0

31

Tecumseh 631022

Clip-Spring

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

32

Tecumseh 27136A

Drain Assembly (Incl. Ref. #33)

Note: Original Tecumseh Part

$7.49

$

In Stock, only 1 left!

0

33

Tecumseh 27554

Gasket-Plunger, Drain

Note: Original Tecumseh Part

$1.49

$

In Stock, Qty 16

0

36

Tecumseh 640005

Tube-Nozzle, Main

Note: Original Tecumseh Part

$6.99

$

In Stock, Qty 5

0

37

Tecumseh 632547

O-Ring

Note: Original Tecumseh Part

$4.49

$

In Stock, Qty 20+

0

40

Tecumseh 640055

Nut-High Speed, Bowl

Note: Original Tecumseh Part

$7.49

$

Usually ships in 3-12 days

0

44

Tecumseh 27110

Washer-Bowl Nut
(Superseded to 27110A)

Note: Original Tecumseh Part

$2.49

$

Usually ships in 3-12 days

0

47

Tecumseh 630748

Plug-Welch, Idle Mixture Well

Note: Original Tecumseh Part

$1.99

$

In Stock, only 3 left!

0

48

Tecumseh 631027

Plug-Welch, Atmospheric Vent

Note: Original Tecumseh Part

$1.99

$

In Stock, only 1 left!

0

60

Tecumseh 632760

Repair Kit
(Superseded to 632760B)

Note: Original Tecumseh Part

$27.99

$

In Stock, Qty 17

0
