38066 (824 XL) - Toro 24" Power Throw Snow Thrower (SN: 210000001 - 210999999) (2001) ENGINE & FRAME ASSEMBLY Parts Diagram

24" Power Throw Snow Thrower

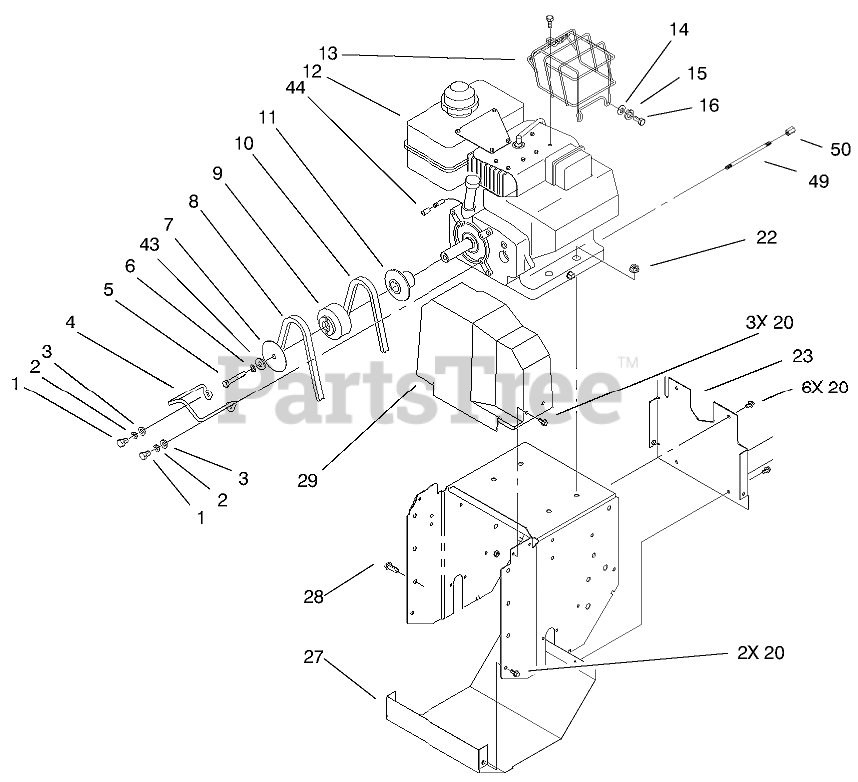

ENGINE & FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 3210-3

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

2

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 95-7917

GUIDE-BELT

$

$

Not available

5

Toro 3212-8

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

6

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

7

Toro 62-0940

SHEAVE-HALF, IMPELLER

$18.99

$

In Stock, Qty 6

0

8

Toro 94-8803

V-BELT, IMPELLER

$25.99

$

In Stock, Qty 5

0

9

Toro 94-8849

PULLEY-ENGINE CENTER

$

$

Not available

10

Toro 94-8812

V BELT-TRACTION
(Superseded to 94-8812-SL)

$33.99

$

Usually ships in 3-6 days

0

11

Toro 62-0920

SHEAVE-HALF, TRACTION

$

$

Not available

12

Toro 99-3223

Engine-Tecumseh, 8hp (only on: 38066)

$

$

Currently unavailable

13

Toro 94-2763

Guard-Muffler (only on: 38066)

$

$

Not available

14

Toro 3256-49

Washer-Flat (only on: 38066)

$0.99

$

In Stock, Qty 8

0

15

Toro 3253-17

Washer-Lock/Sp (only on: 38066)

$0.99

$

In Stock, Qty 6

0

16

Toro 93-8048

Screw (only on: 38066)

$

$

Not available

20

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

22

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

23

Toro 94-8842-01

COVER-REAR

$

$

Not available

27

Toro 94-8844-01

COVER-BOTTOM

$

$

Not available

28

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

29

Toro 94-8802

COVER-UPPER BELT

$64.99

$

Usually ships in 3-6 days

0

43

Toro 3256-41

WASHER

$1.99

$

In Stock, Qty 6

0

44

Toro 94-2782

Cap-Wire, Lite (only on: 38086)

$3.49

$

Usually ships in 3-6 days

0

49

Toro 289-34

NIPPLE-PIPE

$40.99

$

Usually ships in 3-6 days

0

50

Toro 288-2

CAP-PIPE

$19.99

$

In Stock, only 1 left!

0

Toro 99-9300

Cord-Electric Starter (only on: 38086)
(Superseded to 117-0020)

Note: Not illustrated

$23.99

$

Usually ships in 3-6 days

0
