38065 (624) - Toro 24" Snow Thrower (SN: 008000001 - 008999999) (1988) STARTER MOTOR KIT - MODEL 38-7590 (OPTIONAL) Parts Diagram

24" Snow Thrower

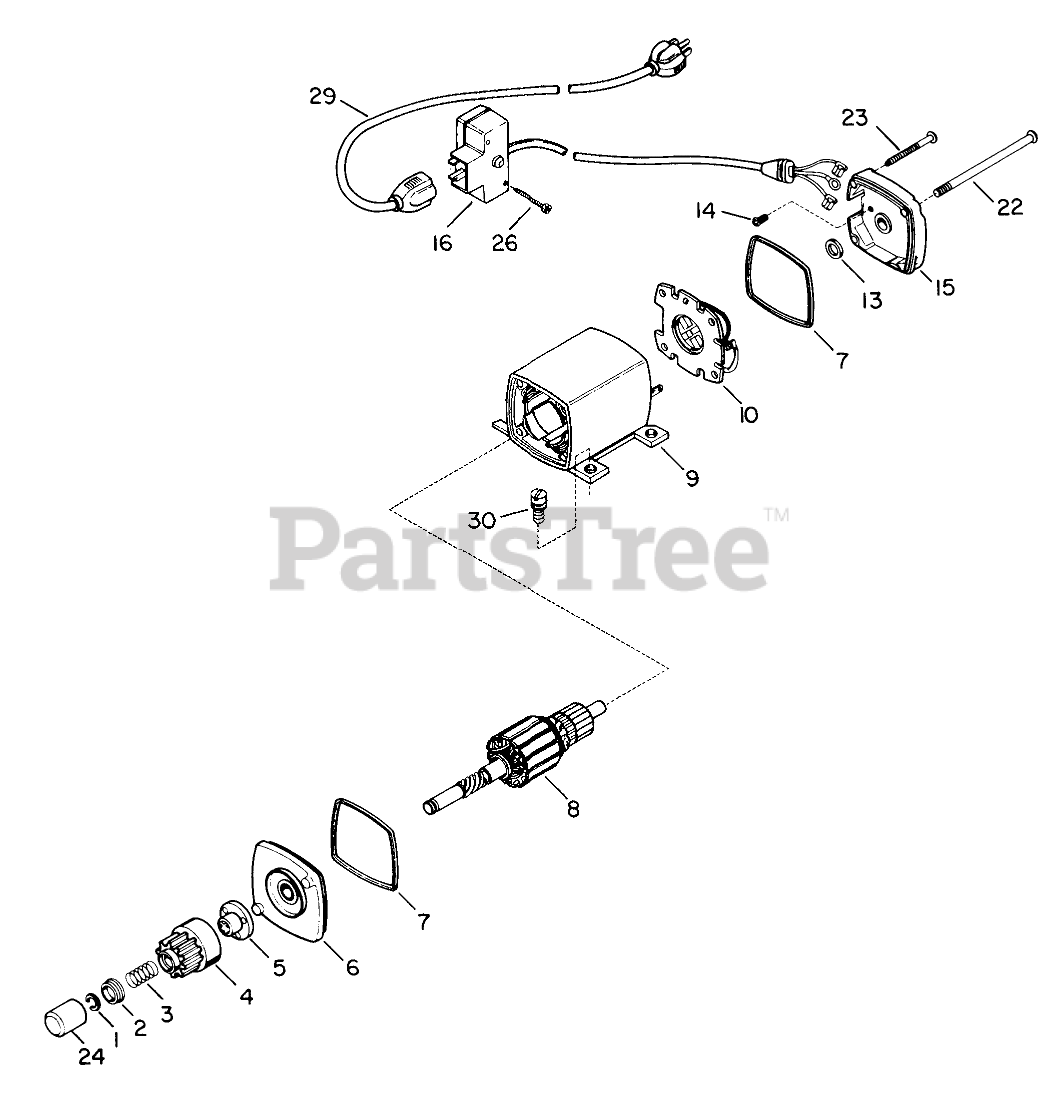

STARTER MOTOR KIT - MODEL 38-7590 (OPTIONAL) Parts Diagram

  • Title

1

Tecumseh 33842

Ring-Retainer

$3.99

$

In Stock, Qty 5

0

2

Tecumseh 33430

Retainer-Spring
(Superseded to 33843)

$7.99

$

In Stock, only 1 left!

0

3

Tecumseh 33431

Spring-Anti Drift

$3.99

$

Usually ships in 3-12 days

0

4

Tecumseh 33432

Gear

$40.99

$

Usually ships in 3-12 days

0

5

Tecumseh 33433

Nut-Engaging
(Superseded to 33433A)

$19.99

$

Usually ships in 3-12 days

0

6

Tecumseh 35449

Cap Assy., Drive End (Incl. Ref. #7)

$36.99

$

Usually ships in 3-12 days

0

7

Tecumseh 35450

O-Ring

$3.99

$

Usually ships in 3-12 days

0

8

Tecumseh 33436A

Armature
(Superseded to 33328D)

$249.48

$

Usually ships in 3-12 days

0

9

Tecumseh 35457

Housing ASM
(Superseded to 35457A)

$

$

Not available

10

Tecumseh 35452

Card ASM
(Superseded to 35452A)

$58.99

$

In Stock, only 1 left!

0

13

Tecumseh 590500

Washer-Thrust

$1.99

$

In Stock, only 1 left!

0

14

Tecumseh 33441

Screw-Ground

$

$

Not available

15

Tecumseh 35453

Cap Assembly, Commutator End (Incl. Ref. #7)

$41.99

$

Usually ships in 3-12 days

0

16

Tecumseh 35454

Switch Box ASM

$

$

Not available

22

Tecumseh 35458

Bolt-Case

$

$

Not available

23

Tecumseh 35456

Screw-Ground

$1.99

$

In Stock, only 3 left!

0

24

Tecumseh 33451

Cover-Dust

$3.49

$

In Stock, only 4 left!

0

26

Tecumseh 650819

Screw

$1.99

$

Usually ships in 3-12 days

0

29

Tecumseh 32450A

Cord-Extension
(Superseded to 32450B)

$

$

Not available

30

Tecumseh 30063

Screw

$1.99

$

In Stock, Qty 20+

0
