38064 (622) - Toro 22" Power Throw Snow Thrower (SN: 220000001 - 220999999) (2002) ENGINE ASSEMBLY Parts Diagram

22" Power Throw Snow Thrower

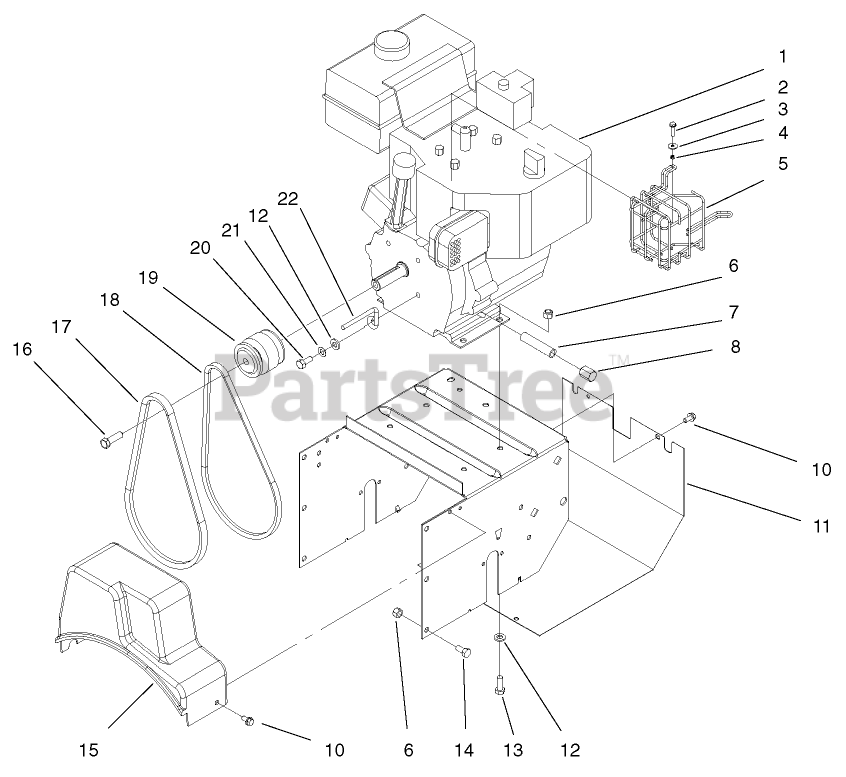

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Engine-6hp, Tecumseh Hsk60-76011c (only on: 38063)

$

$

Not available

1

Engine-6hp, Tecumseh Hsk60-76012c (only on: 38064)

Note: Obtain locally.

$

$

Not available

2

Toro 93-8048

Screw (only on: 38063)

$

$

Not available

3

Toro 3256-49

Washer-Flat (only on: 38063)

$0.99

$

In Stock, Qty 8

0

4

Toro 3253-17

Washer-Lock/Sp (only on: 38063)

$0.99

$

In Stock, Qty 6

0

5

Toro 94-2762

Guard-Muffler (only on: 38063)

$

$

Not available

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 289-9

PIPE-NIPPLE

$10.99

$

Usually ships in 3-6 days

0

8

Toro 288-2

CAP-PIPE

$19.99

$

In Stock, only 1 left!

0

10

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

11

Toro 37-6830-01

COVER-TRACTION, LOWER

$103.99

$

Usually ships in 3-6 days

0

12

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

15

Toro 37-6900

COVER-BELT

$71.99

$

Usually ships in 3-6 days

0

16

Toro 43-7290

SCREW-SPECIAL

$8.49

$

Usually ships in 3-6 days

0

17

Toro 26-9672

V-BELT

$31.99

$

In Stock, Qty 7

0

18

Toro 37-9090

V BELT-3L, TRACTION

$16.99

$

In Stock, Qty 5

0

19

Toro 74-1370

PULLEY-ENGINE

$

$

Not available

20

Toro 3210-3

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

21

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

22

Toro 37-8990

RETAINER-BELT

$10.99

$

Usually ships in 3-6 days

0

24

Toro 99-9300

Cord-Extention (only on: 38064)
(Superseded to 117-0020)

Note: Not illustrated

$23.99

$

Usually ships in 3-6 days

0
