38063 (622) - Toro 22" Power Throw Snow Thrower (SN: 099000001 - 099999999) (1999) RECOIL STARTER NO. 590742 Parts Diagram

22" Power Throw Snow Thrower

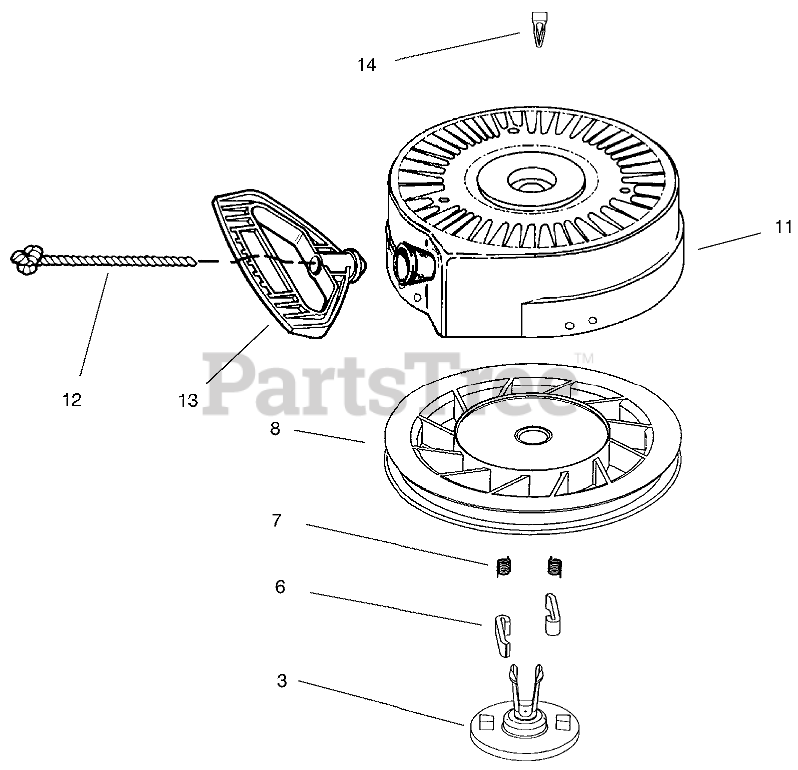

RECOIL STARTER NO. 590742 Parts Diagram

  • Title
3

Tecumseh 590740

Retainer

Note: Note: Order individual parts from your local Tecumseh dealer.

$9.49

$

In Stock, Qty 12

0

6

Tecumseh 590616

Dog-Starter

Note: Note: Order individual parts from your local Tecumseh dealer.

$7.49

$

Usually ships in 3-12 days

0

7

Tecumseh 590617

Spring-Dog

Note: Note: Order individual parts from your local Tecumseh dealer.

$3.99

$

Usually ships in 3-12 days

0

8

Tecumseh 590645A

Pulley and Rewind Spring ASM

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Not available

11

Tecumseh 590647

Housing Assembly
(Superseded to 590647A)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Not available

12

Tecumseh 590535

Rope-Starter (98 cut to length)

Note: Note: Order individual parts from your local Tecumseh dealer.

$9.49

$

In Stock, Qty 13

0

13

Tecumseh 590574

Handle-Starter, Mitten Grip

Note: Note: Order individual parts from your local Tecumseh dealer.

$5.49

$

In Stock, only 1 left!

0

14

Tecumseh 590741

Locking Tab
(Superseded to 590760)

Note: Note: Order individual parts from your local Tecumseh dealer.

$4.99

$

In Stock, only 2 left!

0
