38063 (622) - Toro 22" Power Throw Snow Thrower (SN: 079000001 - 079999999) (1997) RECOIL STARTER NO. 590707 Parts Diagram

22" Power Throw Snow Thrower

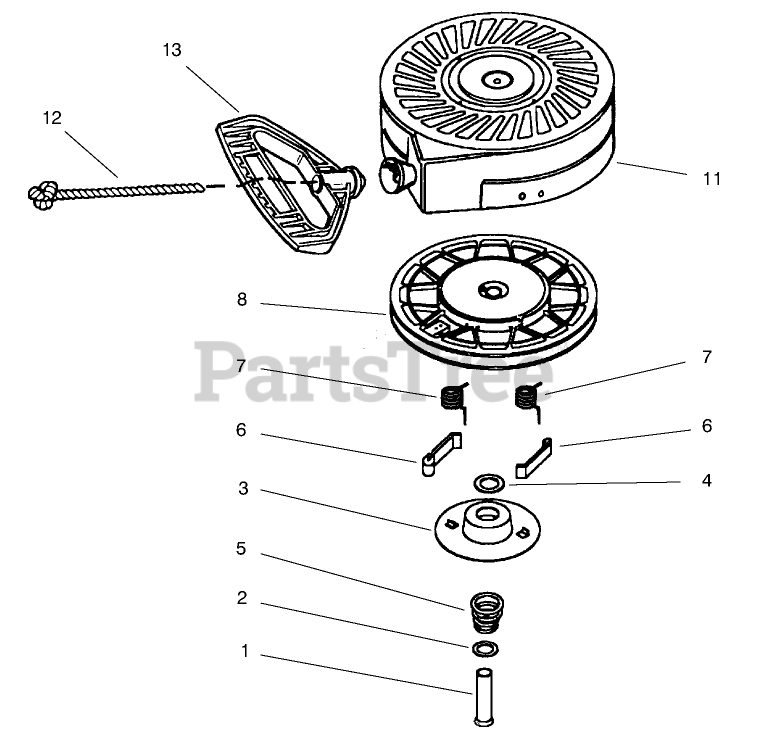

RECOIL STARTER NO. 590707 Parts Diagram

  • Title
1

Tecumseh 590599A

Spring Pin (Incl. Ref.#4)

$5.49

$

In Stock, only 3 left!

0

2

$1.99

$

In Stock, Qty 5

0

3

Tecumseh 590696

Retainer

$7.49

$

In Stock, only 1 left!

0

4

$1.99

$

In Stock, only 4 left!

0

5

Tecumseh 590697

Spring-Brake

$3.99

$

In Stock, only 1 left!

0

6

Tecumseh 590698

Dog-Starter

$6.99

$

In Stock, only 4 left!

0

7

Tecumseh 590699

Spring-Dog

$7.49

$

In Stock, only 2 left!

0

8

Tecumseh 590709

Pulley and Rewind Spring ASM

$18.99

$

In Stock, only 1 left!

0

11

Tecumseh 590708

Housing Assembly

$

$

Currently unavailable

12

Tecumseh 590535

Rope-Starter (98 cut to length)

$9.49

$

In Stock, Qty 12

0

13

Tecumseh 590574

Handle-Starter, Mitten Grip

$5.49

$

In Stock, only 1 left!

0
