38062 (622) - Toro 22" Snow Thrower (SN: 099000001 - 099999999) (1999) TRACTION ASSEMBLY Parts Diagram

22" Snow Thrower

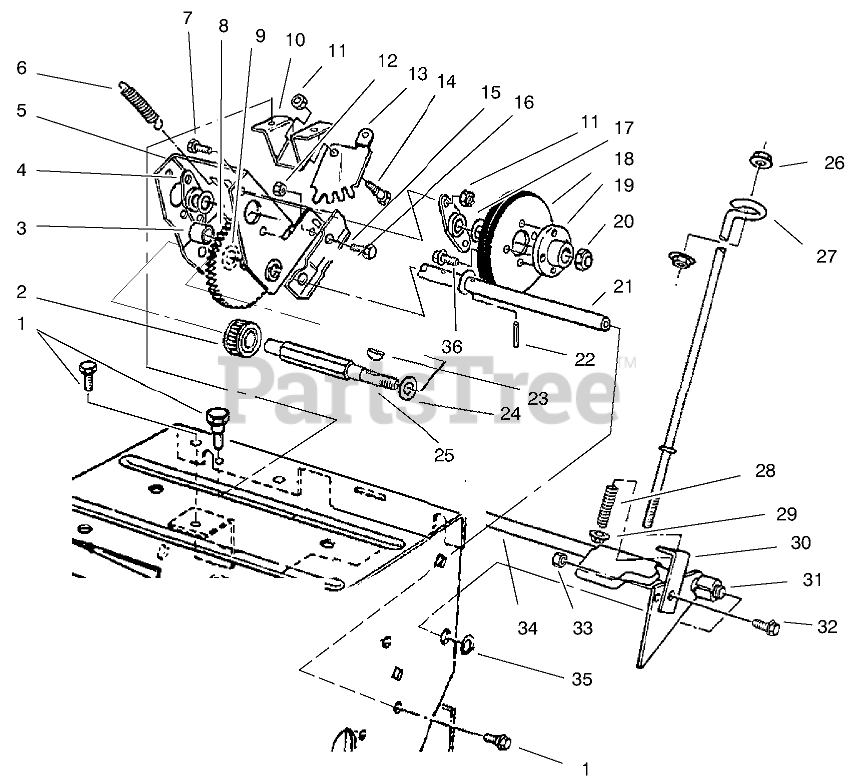

TRACTION ASSEMBLY Parts Diagram

  • Title
1

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

2

Toro 37-6500

PINION

$

$

Not available

3

Toro 256-86

5/8ID X 1LG BUSHING

$23.99

$

Usually ships in 3-6 days

0

4

Toro 20-1620

BEARING-WHEEL, FRICTION
(Superseded to 138-3142)

$39.99

$

In Stock, only 2 left!

0

5

Toro 39-1230

BRACKET-SLIDING

$

$

Not available

6

Toro 37-8880

SPRING-TRACTION

$18.99

$

Usually ships in 3-6 days

0

7

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

8

Toro 37-9160

Intermediate Gear & Bushing (Incl. Ref. #4)

$259.99

$

Usually ships in 3-6 days

0

9

Toro 10-9280

WASHER-SPECIAL

$4.49

$

Usually ships in 3-6 days

0

10

Toro 37-8790

MOUNT-LEVER

$

$

Not available

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

13

Toro 37-8801

GEAR-QUADRANT

$

$

Not available

14

Toro 37-8770

BOLT-SHOULDER

$1.49

$

In Stock, only 2 left!

0

15

Toro 39-1250

CAM-RECEIVER

$24.99

$

Usually ships in 3-6 days

0

16

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 36-4790

WASHER-THRUST

$3.49

$

In Stock, only 2 left!

0

18

Toro 37-6570

WHEEL-FRICTION

$43.99

$

In Stock, only 4 left!

0

19

Toro 39-1520

HUB-WHEEL, FRICTION

$77.99

$

Usually ships in 3-6 days

0

20

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

21

Toro 37-6760

SHAFT-PIVOT

$108.99

$

Usually ships in 3-6 days

0

22

Toro 32121-45

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

23

Toro 3257-24

KEY-WOODRUFF

$5.49

$

Usually ships in 3-6 days

0

24

Toro 5-7570

WASHER-FLAT

$8.49

$

Usually ships in 3-6 days

0

25

Toro 37-6780

SHAFT-WHEEL, FRICTION

$133.99

$

Usually ships in 3-6 days

0

26

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

27

Toro 39-3060

ROD-TRACTION, LOWER

$45.99

$

Usually ships in 3-6 days

0

28

Toro 38-4520

SPRING

$18.99

$

In Stock, only 2 left!

0

29

Toro 32128-32

NUT-HHF

$2.99

$

In Stock, only 2 left!

0

30

Toro 38-4490

BRACKET-TRACTION

$12.99

$

Usually ships in 3-6 days

0

31

Toro 40-9680

SPACER

$

$

Not available

32

Toro 40-8350

SCREW

$7.99

$

Usually ships in 3-6 days

0

33

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

34

Toro 43-7310-03

TRACTION ARM ASM

$90.99

$

Usually ships in 3-6 days

0

35

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

36

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0
