38062 (622) - Toro 22" Snow Thrower (SN: 079000001 - 079999999) (1997) ENGINE ASSEMBLY Parts Diagram

22" Snow Thrower

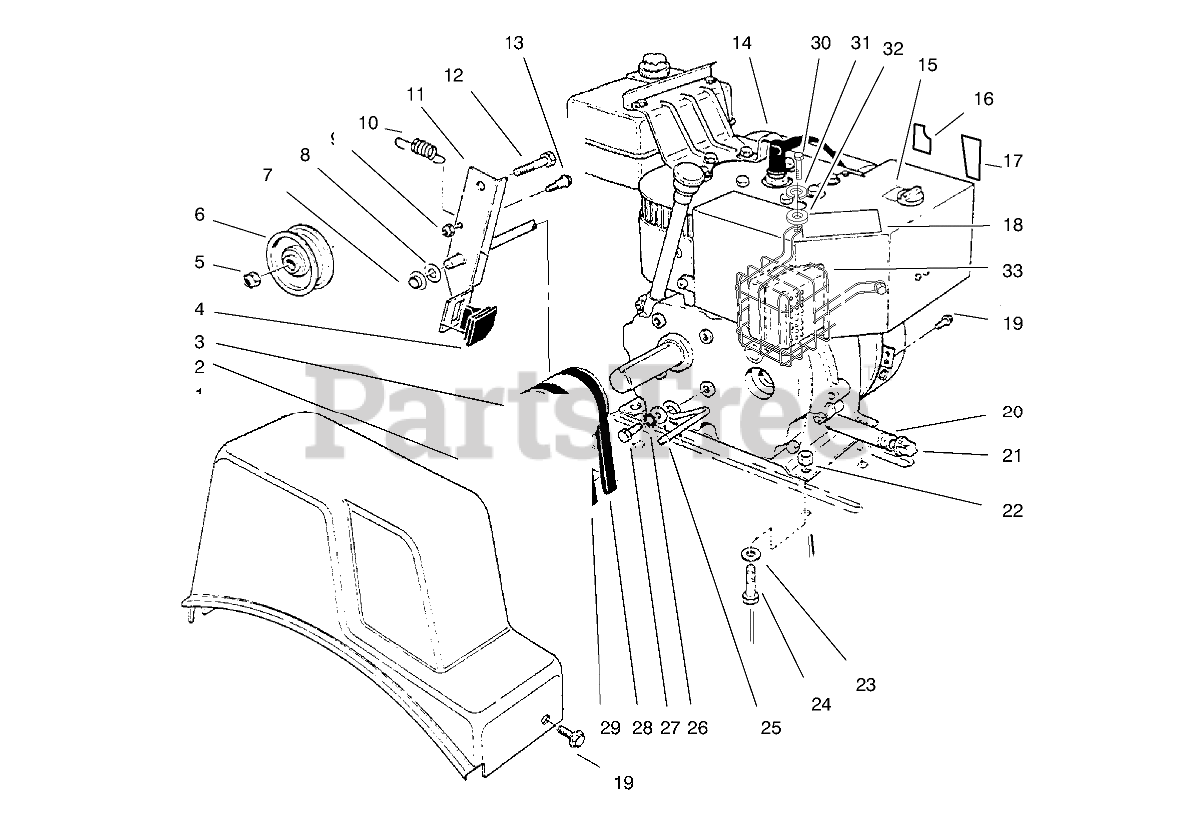

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 37-6900

COVER-BELT

$71.99

$

Usually ships in 3-6 days

0

2

Toro 43-7290

SCREW-SPECIAL

$8.49

$

Usually ships in 3-6 days

0

3

Toro 74-1370

PULLEY-ENGINE

$

$

Not available

4

Toro 66-8060

PAD-BRAKE

$18.99

$

In Stock, Qty 20+

0

5

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

6

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 2 left!

0

7

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

8

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 53-7570

SPRING

$16.99

$

In Stock, only 1 left!

0

11

Toro 14-7959

Auger Clutch (Incl. Ref. #4)

$

$

Not available

12

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 15

0

13

Toro 42-3560

BOLT-SHOULDER

$5.99

$

In Stock, Qty 17

0

14

Engine-Briggs and Stratton 084232-0121-e1

$

$

Not available

15

Toro 63-2420

DECAL-CHOKE

$

$

Not available

Toro 63-2430

DECAL-CHOKE, INT'L

Note: Not illustrated

$

$

Not available

16

Toro 94-2572

DECAL - PRIMER

$

$

Not available

17

Toro 63-2450

THROTTLE DECAL, INT'L

$6.49

$

Usually ships in 3-6 days

0

18

Toro 66-6840

DECAL-WARNING, HOT SURFACE

$80.99

$

Usually ships in 3-6 days

0

Toro 94-2576

DECAL - HOT SURFACE

Note: Not illustrated

$

$

Not available

19

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

20

Toro 289-9

PIPE-NIPPLE

$10.99

$

Usually ships in 3-6 days

0

21

Toro 288-2

CAP-PIPE

$19.99

$

In Stock, only 1 left!

0

22

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

24

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

Toro 37-8990

RETAINER-BELT

$10.99

$

Usually ships in 3-6 days

0

26

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

27

Toro 3210-3

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

28

Toro 37-9090

V BELT-3L, TRACTION

$16.99

$

In Stock, Qty 5

0

29

Toro 26-9672

V-BELT

$31.99

$

In Stock, Qty 7

0

30

Toro 42-675

Screw

Note: Order From Tecumseh

$

$

Currently unavailable

31

Toro 36-180

Washer-Lock

Note: Order From Tecumseh

$

$

Currently unavailable

32

Toro 36-195-1

Washer-Flat

Note: Order From Tecumseh

$

$

Currently unavailable

33

Toro 127-19

Guard-Muffler

Note: Order From Tecumseh

$

$

Currently unavailable
