38056 (521) - Toro 21" Snow Thrower (SN: 006000001 - 006999999) (1986) ENGINE TECUMSEH MODEL HS50-67259F Parts Diagram

21" Snow Thrower

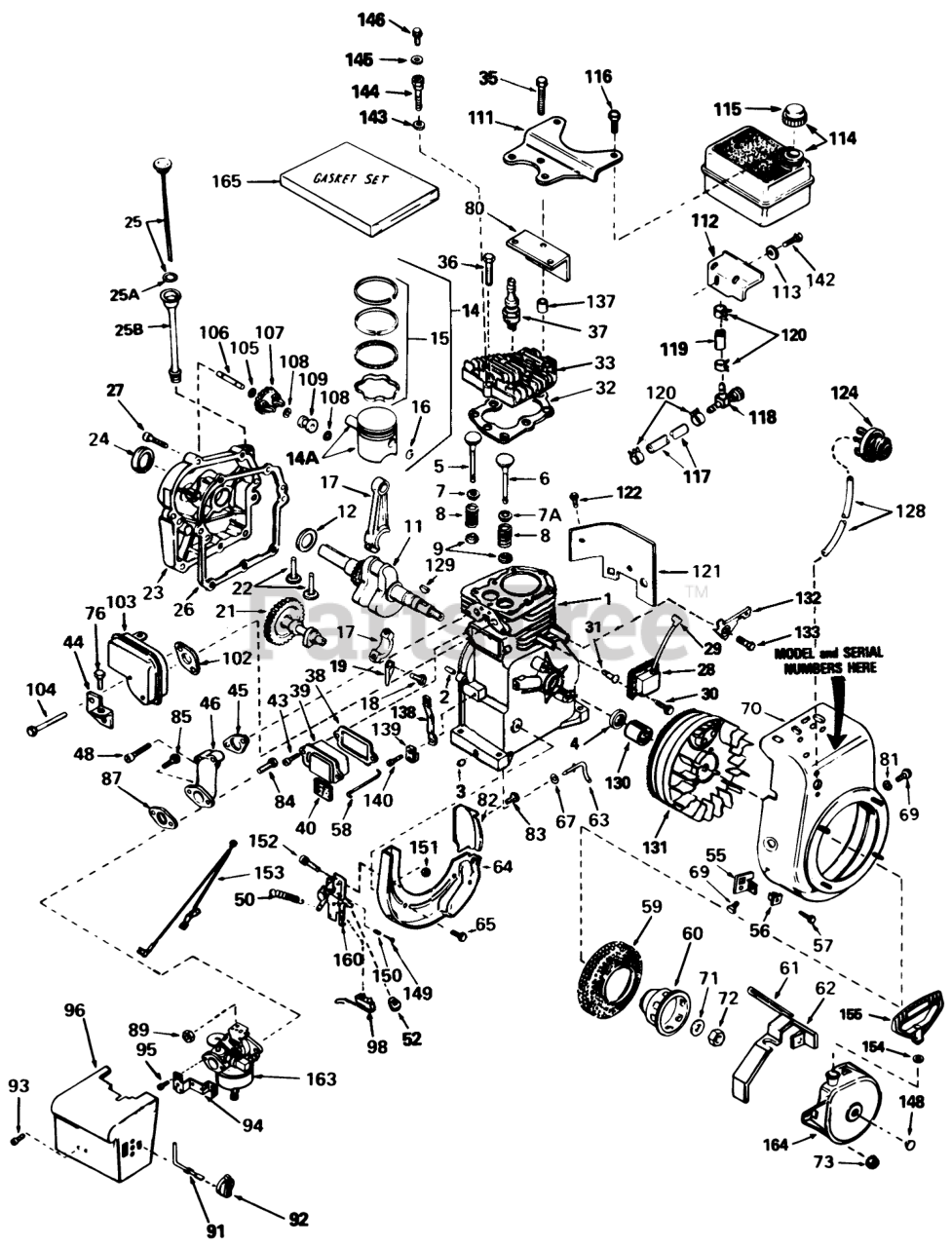

ENGINE TECUMSEH MODEL HS50-67259F Parts Diagram

  • Title

1

Tecumseh 33674A

Cylinder Assy. (Incl. Ref. #2, 3 & 4)
(Superseded to 33674B)

$

$

Not available

2

Tecumseh 26727

Pin-Dowel

$1.99

$

In Stock, Qty 5

0

3

Tecumseh 27642

Plug-Drain, Oil (SQH 1/4-18)

$1.99

$

In Stock, only 2 left!

0

4

Tecumseh 32600

Seal-Oil

$

$

Not available

5

Tecumseh 32644A

Valve-Intake (Std.) (Incl. Ref. #9)

$9.99

$

Usually ships in 3-12 days

0

5

Tecumseh 32645A

Valve-Intake (1/32" oversize) (Incl. Ref. #9)

$61.99

$

In Stock, only 2 left!

0

6

Tecumseh 29313C

Valve-Exhaust (Std.) (Incl. Ref. #9)

$

$

Not available

6

Tecumseh 29315C

Valve-Exhaust (1/32" oversize) (Incl. Ref. #9)

$

$

Not available

7

Tecumseh 31671

Cap-Upper Valve Spring

$1.49

$

In Stock, only 2 left!

0

7A

Tecumseh 33678

Cap, Upper Valve Spg (Exhaust)

$

$

Currently unavailable

8

Tecumseh 31672

Spring-Valve

$1.99

$

In Stock, Qty 14

0

9

Tecumseh 31673

Cap-Valve, Spring

$1.99

$

In Stock, only 3 left!

0

11

Tecumseh 34740

Crankshaft ASM

$137.99

$

Usually ships in 3-12 days

0

12

Tecumseh 32323

Washer-Thrust

$8.49

$

Usually ships in 3-12 days

0

14

Tecumseh 34535

Piston-Pin & Ring Assy. (Std.) (Incl. Ref. #14A, 15 & 16)

$74.99

$

In Stock, only 1 left!

0

14

Tecumseh 34536

Piston-Pin & Ring Assy. (.010 oversize) (Incl. Ref. #14A, 15 & 16)

$

$

Not available

14

Tecumseh 34537

Piston-Pin & Ring Assy. (.020 oversize) (Incl. Ref. #14A, 15 & 16)

$

$

Not available

14A

Tecumseh 33562B

Piston & Pin Assy. (Std.) (Incl. Ref. #16)

$44.99

$

Usually ships in 3-12 days

0

14A

Tecumseh 33563B

Piston & Pin Assy. (.010 oversize) (Incl. #16)

$

$

Not available

14A

Tecumseh 33564B

Piston & Pin Assy. (.020 oversize) (Incl. Ref. #16)

$

$

Not available

15

Tecumseh 33567

Ring Set-Piston Std.
(Superseded to 40004)

$74.99

$

In Stock, only 1 left!

0

15

Tecumseh 33568

Ring Set-Piston .010 oversize

$

$

Not available

15

Tecumseh 33569

Ring Set-Piston .020 oversize

$

$

Not available

16

Tecumseh 20381

Ring-Retaining, Piston Pin

$1.99

$

In Stock, Qty 7

0

17

Tecumseh 32875

Rod Assy.-Connecting (Incl. Ref. #18 & 19)
(Superseded to 32875A)

$47.99

$

In Stock, only 1 left!

0

18

Tecumseh 32610A

Bolt-Rod, Connecting

$1.99

$

In Stock, Qty 6

0

19

Tecumseh 32654

Dipper-Oil

$8.99

$

In Stock, only 4 left!

0

21

Tecumseh 33158

Camshaft
(Superseded to 37040)

$30.99

$

In Stock, only 1 left!

0

22

Tecumseh 27241

Lifter-Valve

$5.49

$

In Stock, only 2 left!

0

23

Tecumseh 34674A

Cover-Cylinder (Incl. Ref. #24 & 106)
(Superseded to 34674C)

$

$

Not available

24

Tecumseh 27897

Seal-Oil

$8.49

$

In Stock, Qty 17

0

25

Tecumseh 34676

Dipstick-Oil (Incl. Ref. #25A)
(Superseded to 34676A)

$15.99

$

Usually ships in 3-12 days

0

25A

Tecumseh 33590

O-Ring

$1.99

$

In Stock, only 1 left!

0

25B

Tecumseh 33893A

Tube Fill

$

$

Not available

26

Tecumseh 27677

Gasket-Cylinder Cover
(Superseded to 27677A)

Note: Indicates parts included in Gasket Set, Ref. Num 165.

$7.49

$

In Stock, Qty 7

0

27

Tecumseh 650488

Screw (1/4-20 x 1-1/4)

$1.99

$

Usually ships in 3-12 days

0

28

Tecumseh 34443A

Solid State
(Superseded to 34443D)

$44.99

$

In Stock, only 1 left!

0

29

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 3 left!

0

30

Tecumseh 650814

Screw
(Superseded to 651007)

$1.99

$

In Stock, only 4 left!

0

31

Tecumseh 650872

Stud
(Superseded to 651024)

$3.99

$

In Stock, only 2 left!

0

32

Tecumseh 33554

Oil Fill Tube
(Superseded to 36443)

Note: Indicates parts included in Gasket Set, Ref. Num 165.

$5.99

$

In Stock, Qty 7

0

33

Tecumseh 33016

Head Cylinder
(Superseded to 37675)

$41.99

$

In Stock, only 1 left!

0

35

Tecumseh 650694A

Screw (5/16-18 X 2)

$3.49

$

In Stock, Qty 20+

0

36

Tecumseh 6021A

Screw (5/16-18x1-1/2)

$1.99

$

In Stock, only 3 left!

0

37

Tecumseh 33636

Plug, Spark (J17LM or equiv.)

$5.49

$

In Stock, Qty 12

0

37

Tecumseh 34251

Plug, Spark (Champion RCJ-8)
(Superseded to 33636)

$5.49

$

In Stock, Qty 12

0

38

Tecumseh 31619

Gasket Breather
(Superseded to 31619A)

Note: Indicates parts included in Gasket Set, Ref. Num 165.

$7.49

$

In Stock, only 2 left!

0

39

Tecumseh 31337

Breather Assy. (Incl. Ref. #38 & 40)
(Superseded to 31337B)

$18.99

$

In Stock, only 1 left!

0

40

Tecumseh 31410

Element-Breather

$1.99

$

In Stock, Qty 20+

0

43

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

44

Tecumseh 33333

Bracket-Cover, Carburetor

$3.99

$

Usually ships in 3-12 days

0

45

Tecumseh 33673

Gasket-Intake
(Superseded to 33673A)

Note: Indicates parts included in Gasket Set, Ref. Num 165.

$5.99

$

In Stock, only 2 left!

0

46

Tecumseh 33691

Pipe-Intake

$25.99

$

Usually ships in 3-12 days

0

48

Tecumseh 650664

Screw (1/4-20 x 1-19/32)

$1.99

$

In Stock, Qty 9

0

50

Tecumseh 31426

Spring-Extension

$3.99

$

In Stock, Qty 20+

0

52

Tecumseh 32410

Knob-Control

$5.49

$

In Stock, only 4 left!

0

55

Tecumseh 34126

Bracket

$1.99

$

Usually ships in 3-12 days

0

56

Tecumseh 28545

Grommet

$1.99

$

In Stock, Qty 5

0

57

Tecumseh 650643

Screw
(Superseded to 650760)

$1.99

$

In Stock, only 3 left!

0

58

Tecumseh 32698

Link-Governor to Throttle

$1.99

$

In Stock, only 4 left!

0

59

Tecumseh 35185

Screen-Starter

$5.99

$

Usually ships in 3-12 days

0

60

Tecumseh 34694

Cup-Starter

$11.99

$

Usually ships in 3-12 days

0

61

Tecumseh 32576

Seal, Snowguard

$3.99

$

Usually ships in 3-12 days

0

62

Tecumseh 34127

Guard-Starter

$

$

Not available

63

Tecumseh 31334

Rod-Governor

$5.49

$

In Stock, only 1 left!

0

64

Tecumseh 3342

Baffle-Blower Housing

Note: In original production, the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$

$

Currently unavailable

65

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

67

Tecumseh 28277

Washer-Flat

$1.99

$

In Stock, only 4 left!

0

69

Tecumseh 29212

Screw
(Superseded to 29716)

$1.49

$

In Stock, Qty 6

0

70

Tecumseh 34813A

Housing-Blower
(Superseded to 33663E)

$

$

Not available

71

Tecumseh 650815

Washer-Belleville

$1.99

$

In Stock, Qty 10

0

72

Tecumseh 650863

Nut-Flywheel

$

$

Not available

73

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, only 1 left!

0

76

Tecumseh 650735

Screw (10-24 x 3/8)

$1.99

$

In Stock, only 2 left!

0

80

Tecumseh 33344

Baffle-Heat

$5.49

$

In Stock, only 1 left!

0

81

Tecumseh 650168

Washer

$1.99

$

Usually ships in 3-12 days

0

82

Tecumseh 33341

Baffle-Extension
(Superseded to 35883)

$1.99

$

In Stock, Qty 5

0

83

Tecumseh 650701

Screw-Hex Washer Hd.

$1.99

$

Usually ships in 3-12 days

0

84

Tecumseh 6201

Screw (1/4-28 x 7/8)

$

$

Not available

85

Tecumseh 650870

Screw (1/4-28 x 1-11/16)

$1.99

$

In Stock, Qty 5

0

87

Tecumseh 26756

Gasket

Note: Indicates parts included in Gasket Set, Ref. Num 165.

$2.99

$

In Stock, Qty 9

0

89

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, only 1 left!

0

91

Tecumseh 34582

Rod-Choke

$5.49

$

Usually ships in 3-12 days

0

92

Tecumseh 34585

Knob-Control
(Superseded to 35438)

$3.99

$

In Stock, only 2 left!

0

93

Tecumseh 650257

Screw (8-32 X 5/16)

$1.49

$

In Stock, Qty 17

0

94

Tecumseh 34583

Bracket-Choke
(Superseded to 34583A)

$12.99

$

In Stock, Qty 6

0

95

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

$4.49

$

In Stock, only 3 left!

0

96

Tecumseh 35072

Cover-Carburetor
(Superseded to 35072B)

$

$

Not available

98

Tecumseh 610973

Terminal

$3.99

$

In Stock, Qty 5

0

102

Tecumseh 33670

Gasket-Exhaust
(Superseded to 35865)

Note: Indicates parts included in Gasket Set, Ref. Num 165.

$2.49

$

In Stock, only 2 left!

0

103

Tecumseh 33697A

Muffler

$40.99

$

Usually ships in 3-12 days

0

104

Tecumseh 650327

Screw-Fil. Hd.
(Superseded to 650327A)

$6.99

$

In Stock, Qty 13

0

105

Tecumseh 30590A

Washer-Flat

$1.99

$

In Stock, Qty 7

0

106

Tecumseh 30574

Shaft-Governor
(Superseded to 30574A)

$7.49

$

In Stock, only 4 left!

0

107

Tecumseh 30591

Gear Assy.-Governor (Incl. Ref. #105)

$13.99

$

In Stock, only 1 left!

0

108

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, only 4 left!

0

109

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, only 4 left!

0

111

Tecumseh 28371

Bracket, Fuel Tank-Upper
(Superseded to 36247)

$11.99

$

Usually ships in 3-12 days

0

112

Tecumseh 34182

Bracket-Fuel Tank

$13.99

$

Usually ships in 3-12 days

0

113

Tecumseh 650675

Washer

$1.99

$

Usually ships in 3-12 days

0

114

Tecumseh 34711

Tank-Fuel (Incl. Ref. #115)
(Superseded to 35584)

$45.99

$

In Stock, only 4 left!

0

115

Tecumseh 34210

Cap, Fuel

$8.49

$

In Stock, Qty 12

0

116

Tecumseh 650665

Screw (1/4-15x7/8)

$1.99

$

In Stock, only 3 left!

0

117

Tecumseh 30705

Line-Fuel

$16.99

$

In Stock, only 2 left!

0

118

Tecumseh 32961

Valve-Shut Off
(Superseded to 35857)

$13.99

$

Usually ships in 3-12 days

0

119

Tecumseh 29774

Line-Fuel (8.62)

$34.99

$

In Stock, Qty 6

0

120

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 20+

0

121

Tecumseh 29745

Extension-Blower

$3.99

$

Usually ships in 3-12 days

0

122

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

124

Tecumseh 34814

Primer Assy.
(Superseded to 35769)

$14.99

$

Usually ships in 3-12 days

0

128

Tecumseh 32180C

Line-Primer

$6.99

$

In Stock, only 4 left!

0

129

Tecumseh 610961

Key-Flywheel

$1.49

$

In Stock, Qty 20+

0

130

Tecumseh 34080

Spacer

$1.99

$

In Stock, only 2 left!

0

131

Tecumseh 611081

CLAMP
(Superseded to 611081A)

$

$

Not available

132

Tecumseh 34212

Bracket-Hold Down

$1.99

$

In Stock, Qty 5

0

133

Tecumseh 30200

Screw (10-24 x 9/16)

$1.49

$

In Stock, Qty 10

0

137

Tecumseh 28212

pacer

$1.99

$

In Stock, Qty 5

0

138

Tecumseh 31510

Lever-Governor
(Superseded to 37735)

$13.99

$

In Stock, only 1 left!

0

139

Tecumseh 31335

Clamp-Lever, Governor

$1.99

$

In Stock, only 3 left!

0

140

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 9

0

142

Tecumseh 650805

Screw Assembly
(Superseded to 650561)

$1.99

$

In Stock, only 2 left!

0

143

Tecumseh 650691

Washer-Flat

$1.99

$

Usually ships in 3-12 days

0

144

Tecumseh 650818

Screw ( 5/16-18 x 1-1/2)

$3.99

$

In Stock, only 2 left!

0

145

Tecumseh 8345

Washer

$1.99

$

In Stock, only 2 left!

0

146

Tecumseh 30688

Screw
(Superseded to 30063)

$1.99

$

In Stock, Qty 20+

0

148

Tecumseh 35161

Plug-Starter

$

$

Not available

149

Tecumseh 650549

Screw
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

150

Tecumseh 31342

Spring-Compression

$5.99

$

In Stock, only 1 left!

0

151

Tecumseh 30322

Nut-Lock

Note: In original production, the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$1.99

$

Usually ships in 3-12 days

0

152

Tecumseh 650139

Screw

Note: In original production, the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$1.99

$

In Stock, only 4 left!

0

153

Tecumseh 35253

Ground Wire

$6.49

$

In Stock, only 2 left!

0

154

Tecumseh 27261

Washer

$1.99

$

Usually ships in 3-12 days

0

155

Tecumseh 590574

Handle-Starter, Mitten Grip

$5.49

$

Usually ships in 3-12 days

0

160

Tecumseh 33858A

Bracket Control (Incl. Ref. #98 & 149-152)
(Superseded to 36677)

Note: In original production, the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$47.99

$

In Stock, only 1 left!

0

163

Tecumseh 632107

Carburetor (Incl. Ref. #87)
(Superseded to 640084B)

$109.99

$

Usually ships in 3-12 days

0

164

Tecumseh 590604

Starter-Rewind

$

$

Not available

165

Tecumseh 33683

Gasket Set
(Superseded to 33683C)

$20.99

$

In Stock, only 4 left!

0
