38054 (521) - Toro 21" Snow Thrower (SN: 069000001 - 069999999) (1996) ENGINE ASSEMBLY Parts Diagram

21" Snow Thrower

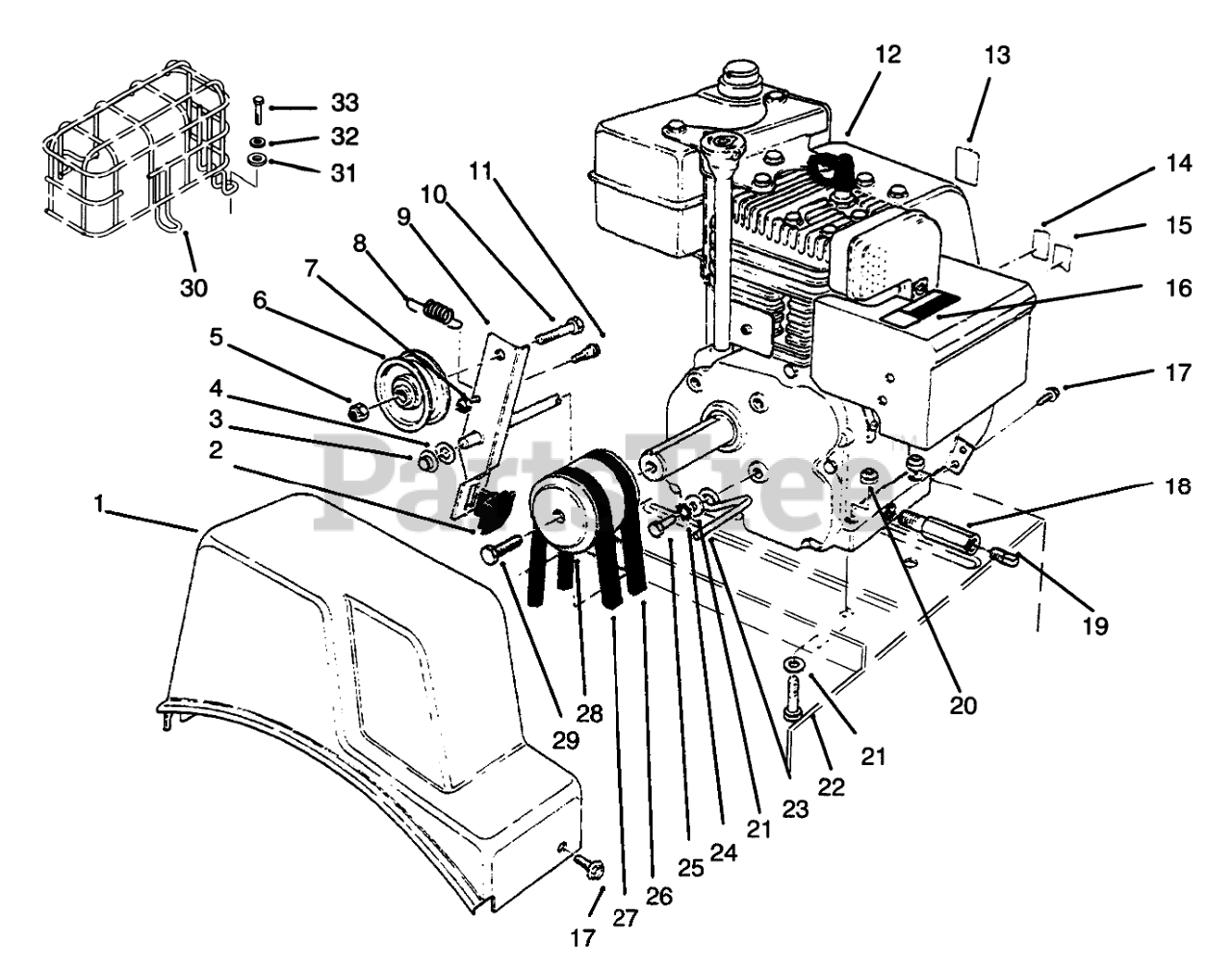

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 37-6900

COVER-BELT

$61.99

$

Usually ships in 3-6 days

0

2

Toro 66-8060

PAD-BRAKE

$18.99

$

In Stock, Qty 20+

0

3

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 18

0

4

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

6

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 2 left!

0

7

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 53-7570

SPRING

$9.49

$

In Stock, only 1 left!

0

9

Toro 14-7959

Auger Clutch (Incl. Ref. #2)

$

$

Not available

10

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 7

0

11

Toro 42-3560

BOLT-SHOULDER

$5.99

$

In Stock, only 3 left!

0

12

ENGINE

$

$

Not available

13

Toro 94-2572

DECAL - PRIMER

$

$

Not available

14

Toro 63-2450

THROTTLE DECAL, INT'L

$4.99

$

Usually ships in 3-6 days

0

15

Toro 39-3850

CHOKE DECAL

$

$

Not available

Toro 63-2410

DECAL-CHOKE

Note: Not illustrated

$6.49

$

Usually ships in 3-6 days

0

16

Toro 66-6840

DECAL-WARNING, HOT SURFACE

$80.99

$

Usually ships in 3-6 days

0

Toro 94-2576

DECAL - HOT SURFACE

Note: Not illustrated

$13.99

$

Usually ships in 3-6 days

0

17

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

18

Toro 49-3040

PIPE-NIPPLE

$20.99

$

Usually ships in 3-6 days

0

19

Toro 281-7

CAP-PIPE

$3.99

$

Usually ships in 3-6 days

0

20

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

22

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Toro 37-8990

RETAINER-BELT

$9.49

$

Usually ships in 3-6 days

0

24

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

25

Toro 3210-3

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

26

Toro 37-9090

V BELT-3L, TRACTION

$14.99

$

In Stock, Qty 6

0

27

Toro 37-9080

V-BELT (29.50 INCH)

$20.99

$

In Stock, Qty 10

0

28

Toro 43-7370

PULLEY-ENGINE

$269.99

$

Usually ships in 3-6 days

0

29

Toro 43-7290

SCREW-SPECIAL

$7.49

$

Usually ships in 3-6 days

0

30

Toro 127-18

Guard-Muffler Model 38054

$

$

Currently unavailable

31

Toro 32-251-1

Washer-Flat

$

$

Currently unavailable

32

Toro 36-180

Washer-Lock

$

$

Currently unavailable

33

Toro 42-671

Screw

$

$

Currently unavailable
