38054 (521) - Toro 21" Snow Thrower (SN: 059000001 - 059999999) (1995) REWIND STARTER NO. 590646 Parts Diagram

21" Snow Thrower

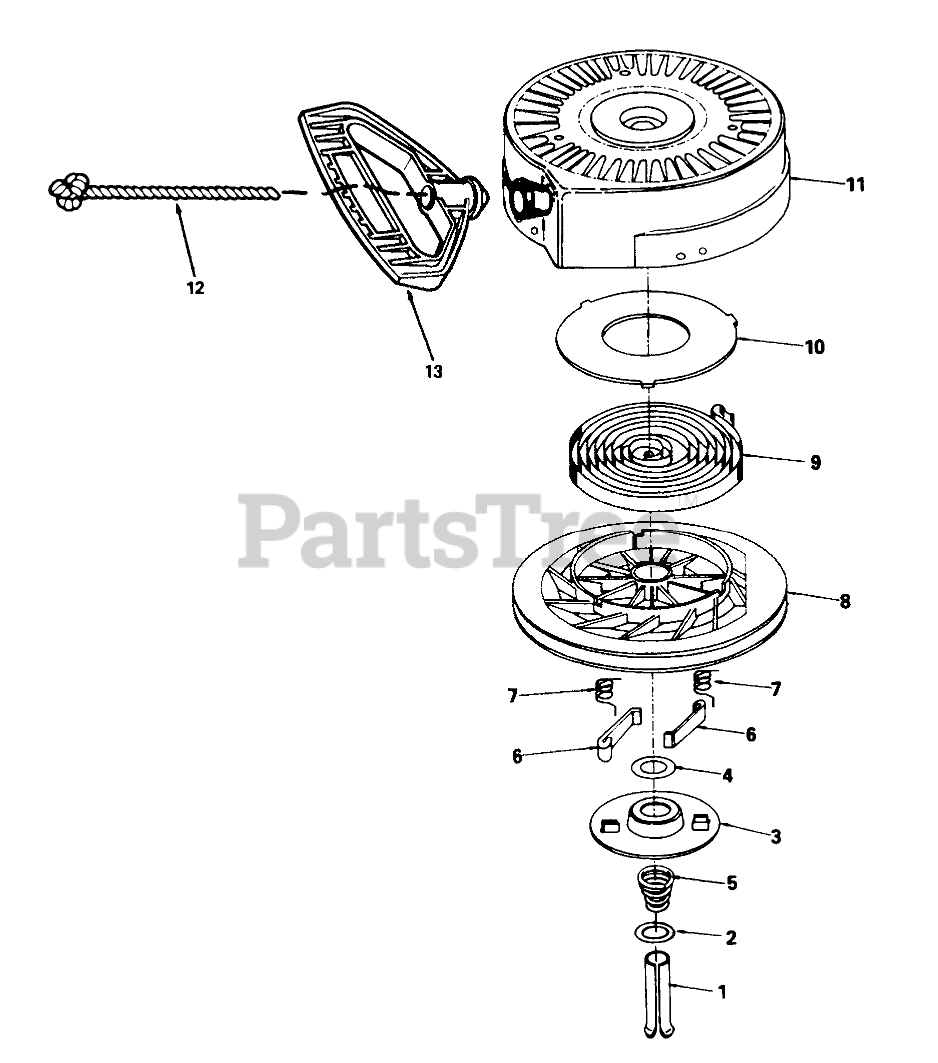

REWIND STARTER NO. 590646 Parts Diagram

  • Title

1

Tecumseh 590599A

Pin-Spring (Incl Ref. #4)

$5.49

$

In Stock, only 2 left!

0

2

Tecumseh 590600

Washer

$1.99

$

In Stock, only 4 left!

0

3

Tecumseh 590615

Retainer

$3.99

$

In Stock, only 2 left!

0

4

Tecumseh 590601

Washer

$1.99

$

In Stock, only 4 left!

0

5

Tecumseh 590598

Brake Spring

$3.99

$

Usually ships in 3-12 days

0

6

Tecumseh 590616

Dog-Starter

$7.49

$

Usually ships in 3-12 days

0

7

Tecumseh 590617

Spring-Dog

$3.99

$

Usually ships in 3-12 days

0

8

Tecumseh 590645A

Pulley and Rewind Spring ASM

$

$

Not available

9

Tecumseh 590619

Rewind Spring

$14.99

$

Usually ships in 3-12 days

0

10

Tecumseh 590620

Cover-Spring

$3.99

$

Usually ships in 3-12 days

0

11

Tecumseh 590647

Housing Assembly
(Superseded to 590647A)

$

$

Not available

12

Tecumseh 590535

Rope-Starter (98 cut to length)

$9.49

$

In Stock, Qty 13

0

13

Tecumseh 590574

Handle-Starter, Mitten Grip

$5.49

$

Usually ships in 3-12 days

0

Tecumseh 590646

Rewind Starter
(Superseded to 590787)

Note: Not illustrated

$53.99

$

Usually ships in 3-12 days

0
