38054 (521) - Toro 21" Snow Thrower (SN: 049000001 - 049999999) (1994) TRACTION ASSEMBLY Parts Diagram

21" Snow Thrower

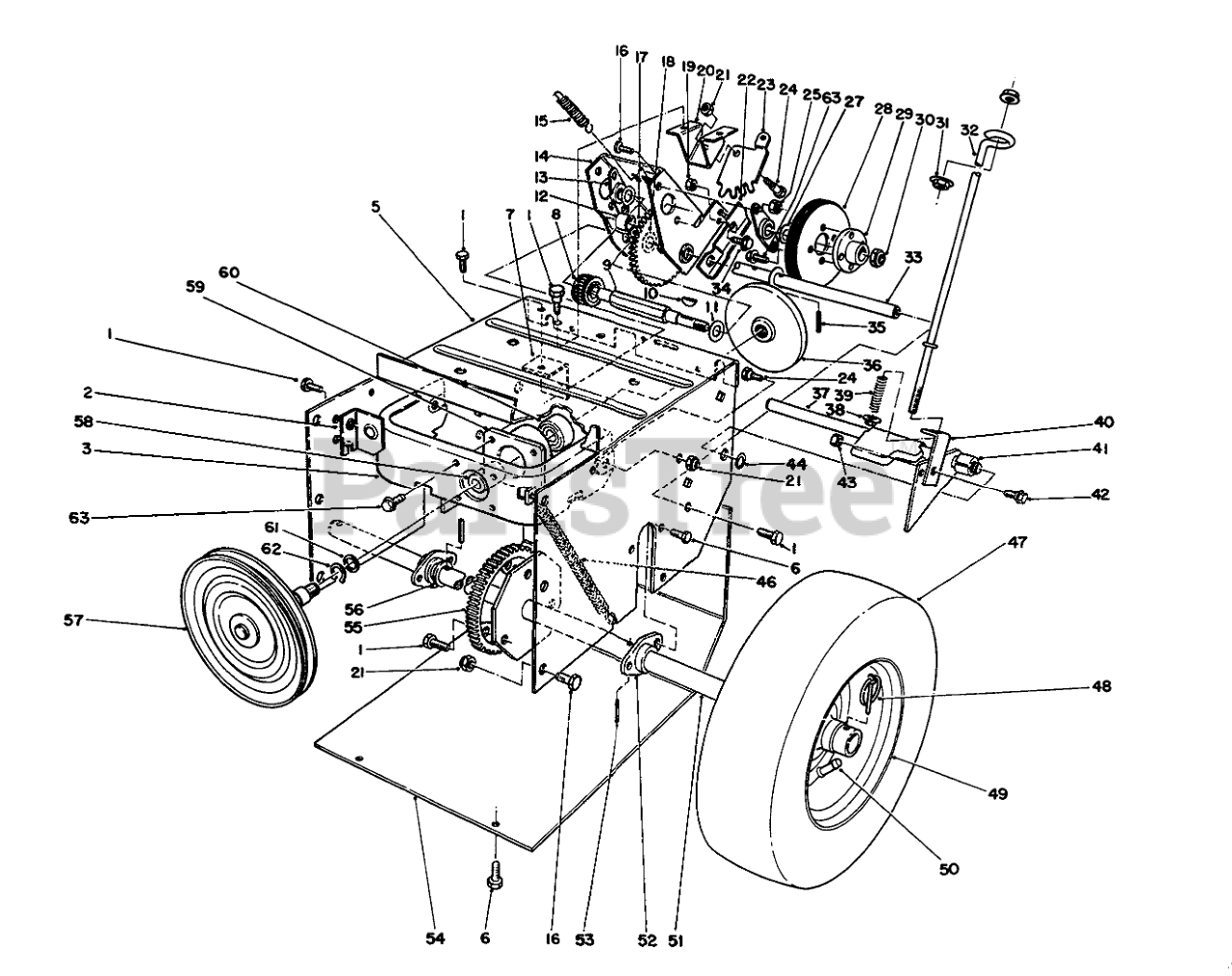

TRACTION ASSEMBLY Parts Diagram

  • Title
1

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

2

Toro 66-6790

BRACKET-MOUNT, FRONT

$7.49

$

Usually ships in 3-6 days

0

3

Toro 88-0550

Frame-Friction Plate
(Superseded to 88-0550-03)

$107.99

$

Usually ships in 3-6 days

0

5

Toro 37-8900

Frame-Traction
(Superseded to 37-8900-01)

$197.99

$

Usually ships in 3-6 days

0

6

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

7

Toro 37-9070

BRACKET-MOUNT, REAR

$13.99

$

Usually ships in 3-6 days

0

8

Toro 37-6500

PINION

$

$

Not available

9

Toro 37-6780

SHAFT-WHEEL, FRICTION

$116.99

$

Usually ships in 3-6 days

0

10

Toro 3257-24

KEY-WOODRUFF

$5.49

$

Usually ships in 3-6 days

0

11

Toro 5-7570

WASHER-FLAT

$8.49

$

In Stock, only 3 left!

0

12

Toro 256-86

5/8ID X 1LG BUSHING

$19.99

$

Usually ships in 3-6 days

0

13

Toro 20-1620

BEARING-WHEEL, FRICTION
(Superseded to 138-3142)

$37.99

$

In Stock, only 2 left!

0

14

Toro 39-1230

BRACKET-SLIDING

$

$

Not available

15

Toro 37-8880

SPRING-TRACTION

$17.99

$

Usually ships in 3-6 days

0

16

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

17

Toro 37-9160

Intermediate Gear & Bushing (Incl. Ref. #12)

$223.99

$

Usually ships in 3-6 days

0

18

Toro 10-9280

WASHER-SPECIAL

$3.49

$

Usually ships in 3-6 days

0

19

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 4 left!

0

20

Toro 37-8790

MOUNT-LEVER

$

$

Not available

21

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

22

Toro 39-1250

CAM-RECEIVER

$21.99

$

Usually ships in 3-6 days

0

23

Toro 37-8800

GEAR-QUADRANT

$23.99

$

Usually ships in 3-6 days

0

24

Toro 37-8770

BOLT-SHOULDER

$1.49

$

In Stock, only 2 left!

0

25

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

27

Toro 36-4790

WASHER-THRUST

$2.99

$

In Stock, only 2 left!

0

28

Toro 37-6570

WHEEL-FRICTION

$38.99

$

In Stock, only 4 left!

0

29

Toro 39-1520

HUB-WHEEL, FRICTION

$76.99

$

Usually ships in 3-6 days

0

30

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

31

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

32

Toro 39-3060

ROD-TRACTION, LOWER

$39.99

$

Usually ships in 3-6 days

0

33

Toro 37-6760

SHAFT-PIVOT

$95.99

$

Usually ships in 3-6 days

0

34

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

35

Toro 32121-45

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

36

Toro 38-0800

PLATE-FRICTION

$90.99

$

In Stock, only 1 left!

0

37

Toro 43-7310

Traction Engagement Asm.
(Superseded to 43-7310-03)

$77.99

$

Usually ships in 3-6 days

0

38

Toro 32128-32

NUT-HHF

$2.99

$

In Stock, only 1 left!

0

39

Toro 38-4520

SPRING

$15.99

$

In Stock, only 2 left!

0

40

Toro 38-4490

BRACKET-TRACTION

$10.99

$

Usually ships in 3-6 days

0

41

Toro 40-9680

SPACER

$

$

Not available

42

Toro 40-8350

SCREW

$7.99

$

Usually ships in 3-6 days

0

43

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

44

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

46

Toro 37-8870

SPRING-PLATE, FRICTION

$39.99

$

Usually ships in 3-6 days

0

47

$264.99

$

Usually ships in 3-6 days

0

48

Toro 3290-243

PIN-LYNCH

$28.99

$

In Stock, only 3 left!

0

49

Toro 241-131

RIM-WHEEL

$223.99

$

In Stock, only 2 left!

0

50

Toro 232-46

TUBE-INNER

$37.99

$

Usually ships in 3-6 days

0

51

Toro 74-1350

SHAFT-AXLE

$182.99

$

Usually ships in 3-6 days

0

52

Toro 37-6850

BEARING-AXLE

$28.99

$

In Stock, only 2 left!

0

53

Toro 32121-31

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

54

Toro 37-6830

Bottom Cover
(Superseded to 37-6830-01)

$88.99

$

Usually ships in 3-6 days

0

55

Toro 37-6520

GEAR-AXLE

$152.99

$

Usually ships in 3-6 days

0

56

Toro 3-8664

WASHER-THRUST

$6.49

$

In Stock, only 2 left!

0

57

Toro 88-0850

PULLEY AND DRIVE ASM

$120.99

$

In Stock, only 1 left!

0

58

Toro 256-322

BUSHING

$15.99

$

In Stock, only 3 left!

0

59

Toro 88-0560

HUB-FRAME, TRACTION

$90.99

$

Usually ships in 3-6 days

0

60

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

61

Toro 252-80

WASHER-THRUST

$8.99

$

In Stock, Qty 9

0

62

Toro 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 9

0

63

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0
