38054 (521) - Toro 21" Snow Thrower (SN: 020000001 - 029999999) (1992) AUGER ASSEMBLY Parts Diagram

21" Snow Thrower

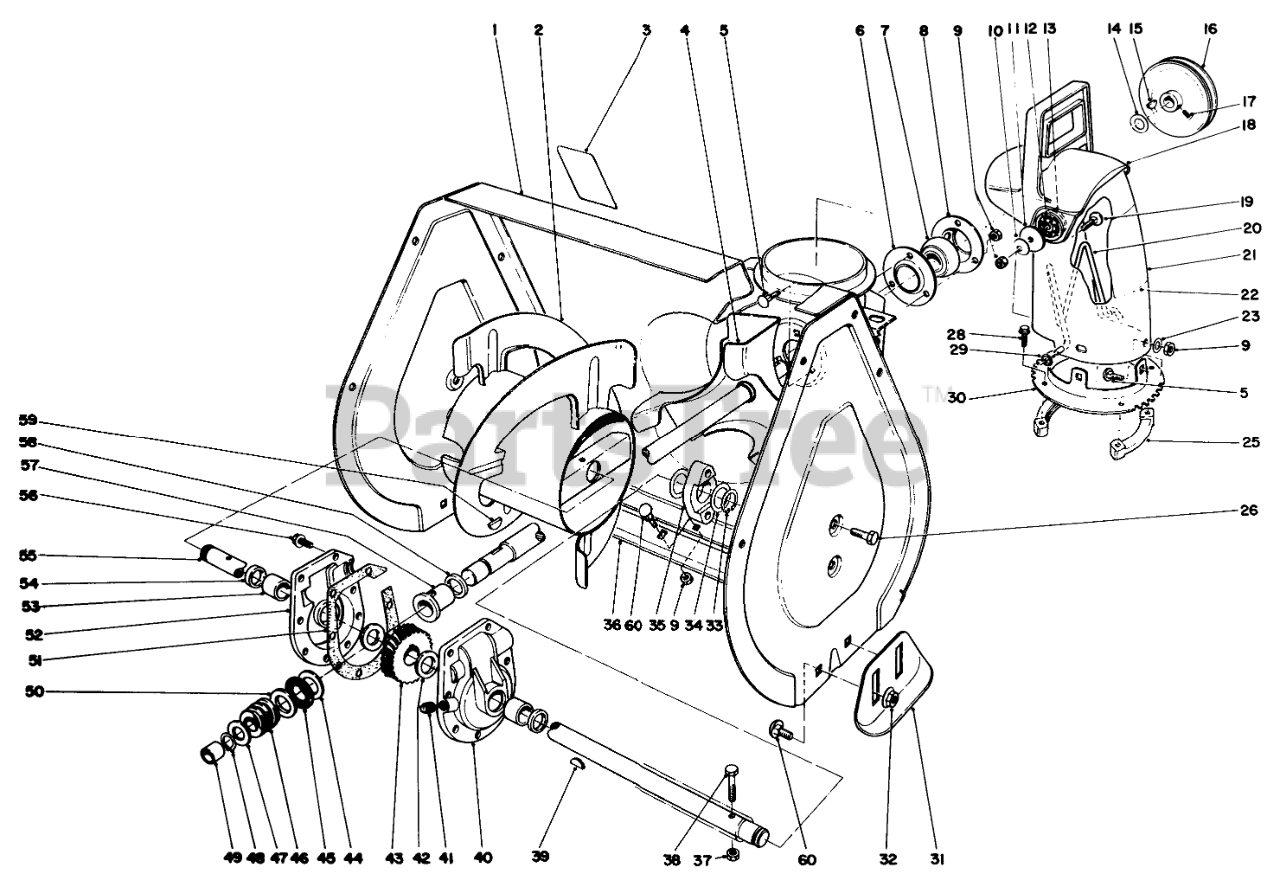

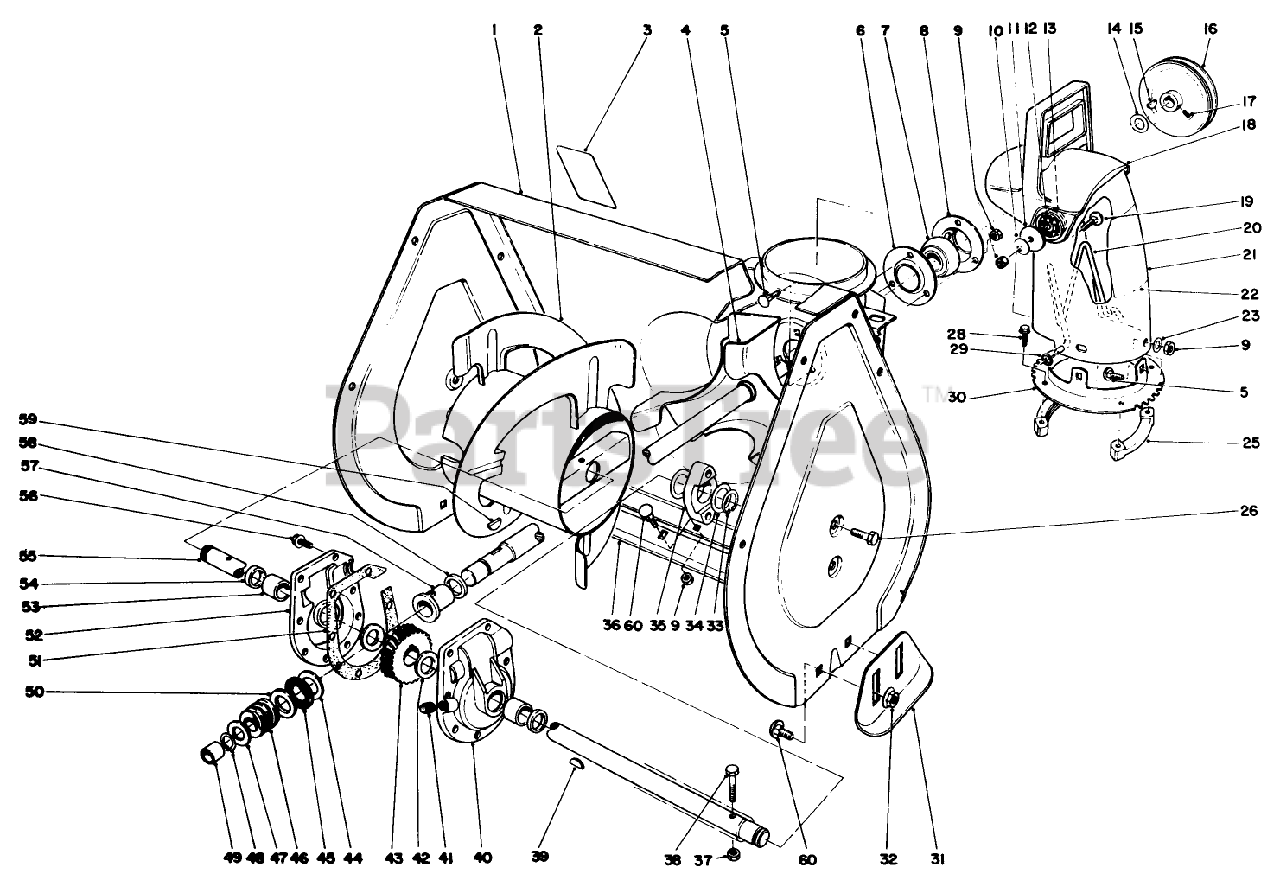

AUGER ASSEMBLY Parts Diagram

  • Title
1

Toro 11-5269

Housing-Auger (Incl. Ref. #3)
(Superseded to 94-2784)

$

$

Not available

2

Toro 39-1180

Auger R.H.
(Superseded to 39-1180-03)

$550.99

$

Usually ships in 3-6 days

0

Toro 39-1190

Auger L.H.
(Superseded to 39-1190-03)

$548.99

$

Usually ships in 3-6 days

0

3

Toro 53-7670

DECAL-WARNING, AUGER
(Superseded to 94-2568)

$10.99

$

In Stock, only 3 left!

0

4

Toro 37-6990

Shaft & Impeiler
(Superseded to 37-6990-03)

$

$

Not available

5

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 5

0

6

Flange-Bearing Front

$

$

Not available

7

Toro 63-3450

BEARING-BALL

$23.99

$

In Stock, Qty 10

0

8

Flange-Bearing Rear

$

$

Not available

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 3290-340

WASHER-BELLEVILLE

$7.99

$

In Stock, Qty 10

0

11

Toro 3256-68

WASHER-FLAT

$2.99

$

In Stock, only 4 left!

0

12

Toro 55-8950

PLATE-FRICTION

$8.99

$

Usually ships in 3-6 days

0

13

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 8

0

14

Toro 3-0737

WASHER

$9.49

$

In Stock, only 3 left!

0

15

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, only 1 left!

0

16

Toro 37-6890

PULLEY

$216.99

$

Usually ships in 3-6 days

0

17

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, only 2 left!

0

18

Toro 56-2680

CHUTE-DEFLECTOR

$23.99

$

In Stock, only 1 left!

0

19

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 2 left!

0

20

Toro 56-2670

WIRE-CHUTE

$21.99

$

Usually ships in 3-6 days

0

21

Toro 12-8749

Chute-Discharge
(Superseded to 94-2791)

$

$

Not available

22

Toro 63-3760

DECAL-DANGER DISCH.
(Superseded to 94-2558)

$42.99

$

In Stock, only 1 left!

0

23

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

25

Toro 37-6490

RING-CHUTE, RETAINER

$19.99

$

In Stock, Qty 5

0

26

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

28

Toro 27-0220

SCREW-SPECIAL

$7.99

$

In Stock, only 4 left!

0

29

Toro 3290-326

NUT-PUSH

$5.49

$

Usually ships in 3-6 days

0

30

Toro 37-8941

Chute Ring
(Superseded to 37-8941-03)

$76.99

$

Usually ships in 3-6 days

0

31

Toro 40-8160

Skid
(Superseded to 40-8160-01)

$28.99

$

In Stock, Qty 16

0

32

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

33

Toro 32151-36

RING-RETAINING

$4.99

$

In Stock, only 4 left!

0

34

Toro 5-1550

WASHER

$7.49

$

Usually ships in 3-6 days

0

35

Toro 37-6550

BEARING-AUGER
(Superseded to 136-8685)

$74.99

$

In Stock, only 2 left!

0

36

Toro 39-1550

Blade-Scraper
(Superseded to 39-1551-01)

$76.99

$

In Stock, only 2 left!

0

37

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

38

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

39

Toro 3257-33

KEY-WOODRUFF

$2.49

$

In Stock, only 2 left!

0

40

Toro 14-2459

Gear Case L.H. (Incl. Ref. #53 & 54)

$155.99

$

In Stock, only 2 left!

0

41

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

Usually ships in 3-6 days

0

42

Toro 252-71

WASHER-THRUST

$19.99

$

In Stock, only 2 left!

0

43

Toro 5-7180

GEAR-WORM, 27T

$183.99

$

In Stock, only 1 left!

0

44

Toro 257-3

WASHER-THRUST

$15.99

$

In Stock, only 2 left!

0

45

Toro 252-76

BEARING-THRUST

$21.99

$

Usually ships in 3-6 days

0

46

$131.99

$

In Stock, only 3 left!

0

47

Toro 3-8664

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

48

Toro 32120-72

Ring-Snap

$2.49

$

In Stock, only 2 left!

0

49

Toro 256-32

BUSHING

$10.99

$

In Stock, Qty 9

0

50

Toro 252-80

WASHER-THRUST

$9.99

$

In Stock, only 4 left!

0

51

Toro 51-0460

GASKET-CASE, GEAR

$9.49

$

In Stock, Qty 5

0

52

Toro 14-2449

Gear Case R.H. (Incl. Ref. #53 & 54)

$155.99

$

In Stock, only 2 left!

0

53

Toro 256-237

BUSHING

$15.99

$

In Stock, Qty 5

0

54

Toro 7-0045

SEAL-OIL

$17.99

$

In Stock, Qty 6

0

55

Toro 37-6800

AUGER SHAFT

$262.99

$

Usually ships in 3-6 days

0

56

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

57

Toro 37-6560

BUSHING-INPUT

$43.99

$

In Stock, only 1 left!

0

58

Toro 237-87

RING-QUAD

$7.49

$

In Stock, only 1 left!

0

59

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, Qty 7

0

60

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

Toro 37-6960

21 GEAR CASE ASM

$

$

Not available

Toro 12-8789

Bearing Assembly (Incl. Ref. #6-8)

$34.99

$

In Stock, Qty 7

0
