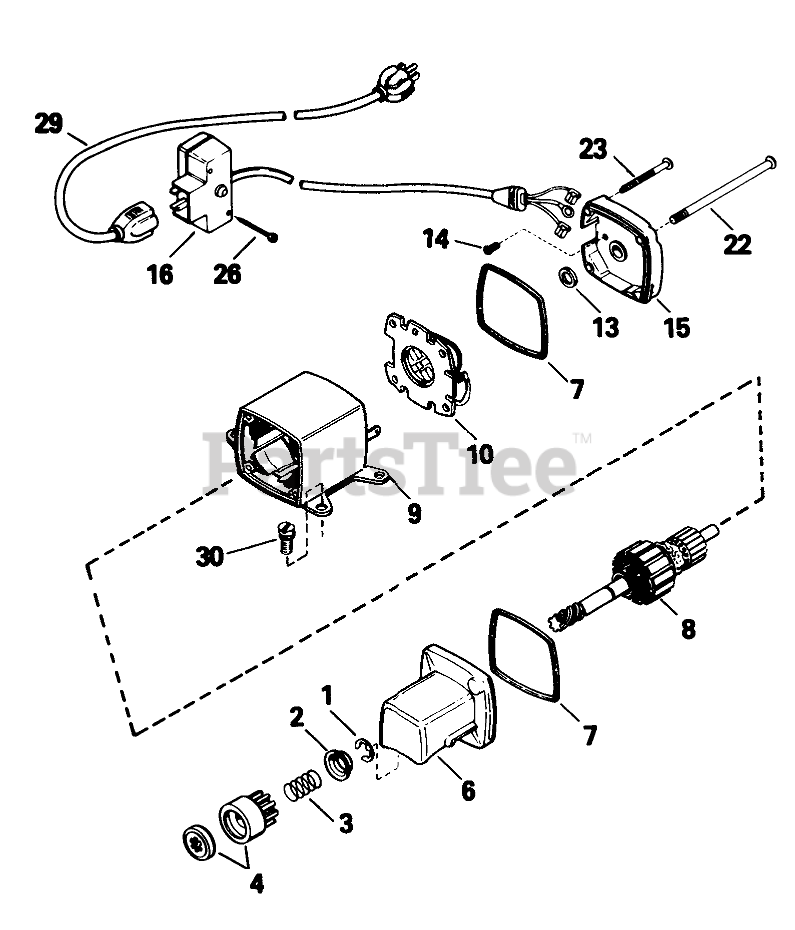

38054 (521) - Toro 21" Snow Thrower (SN: 010000001 - 019999999) (1991) ELECTRIC STARTER MOTOR KIT NO. 23-3790 Parts Diagram

21" Snow Thrower

ELECTRIC STARTER MOTOR KIT NO. 23-3790 Parts Diagram

  • Title

Tecumseh 33290C

Motor-Electric Starter
(Superseded to 33290E)

$278.99

$

In Stock, only 1 left!

0

1

Tecumseh 31749

Retainer-Ring

$1.99

$

Usually ships in 3-12 days

0

2

Tecumseh 33522

Retainer-Spring

$5.99

$

Usually ships in 3-12 days

0

3

Tecumseh 33769

Spring-Anti Drift

$3.99

$

In Stock, only 2 left!

0

4

Tecumseh 33524

Nut & Gear
(Superseded to 37332)

$56.99

$

Usually ships in 3-12 days

0

6

Tecumseh 35461

Cap Assy.-Drive End (Incl. Ref. #7)

$59.99

$

Usually ships in 3-12 days

0

7

Tecumseh 35450

O-Ring

$3.99

$

Usually ships in 3-12 days

0

8

Tecumseh 35460

Armature
(Superseded to 33290E)

$278.99

$

In Stock, only 1 left!

0

9

Tecumseh 35459

Housing Assembly
(Superseded to 33290E)

$278.99

$

In Stock, only 1 left!

0

10

Tecumseh 35452

Card ASM
(Superseded to 35452A)

$58.99

$

In Stock, only 1 left!

0

13

Tecumseh 590500

Washer-Thrust

$1.99

$

In Stock, only 1 left!

0

14

Tecumseh 33441

Screw-Ground

$

$

Not available

15

Tecumseh 35453

Cap Assy.-Commutator End (Incl. Ref. #7)

$41.99

$

Usually ships in 3-12 days

0

16

Tecumseh 35454

Box Assembly-Switch (Incl. Ref. #26)

$

$

Not available

22

Tecumseh 35462

Bolt-Case

$3.99

$

In Stock, only 2 left!

0

23

Tecumseh 35456

Screw-Ground

$1.99

$

In Stock, only 3 left!

0

26

Tecumseh 650819

Screw

$1.99

$

Usually ships in 3-12 days

0

29

Tecumseh 32450A

Cord-Extension
(Superseded to 32450B)

$

$

Not available

30

Tecumseh 650759

Screw (T-30, 1/4-20 x 23/32)

$1.99

$

Usually ships in 3-12 days

0
