38053 (824) - Toro 24" Power Throw Snow Thrower (SN: 230000001 - 230999999) (2003) ENGINE AND FRAME ASSEMBLY Parts Diagram

24" Power Throw Snow Thrower

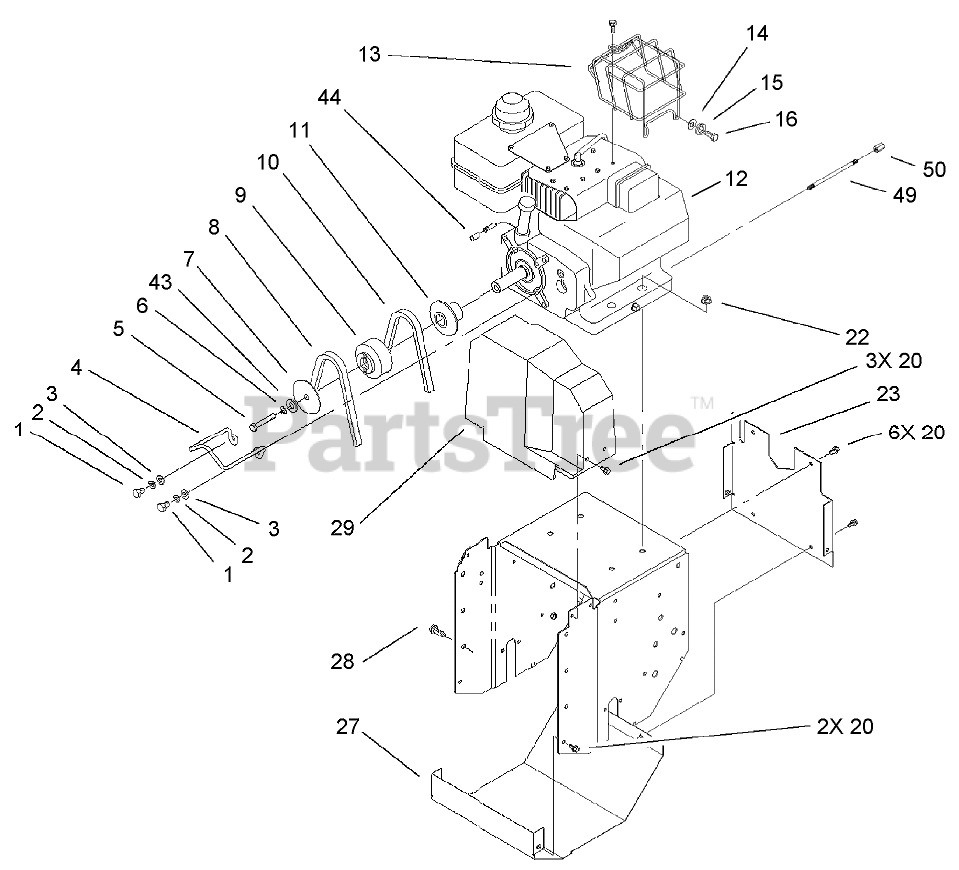

ENGINE AND FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 3210-3

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

2

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 95-7917

GUIDE-BELT

$

$

Not available

5

Toro 3212-8

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

6

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

7

Toro 62-0940

SHEAVE-HALF, IMPELLER

$18.99

$

In Stock, Qty 6

0

8

Toro 26-9671

BELT V

$40.99

$

In Stock, only 3 left!

0

9

Toro 94-8849

PULLEY-ENGINE CENTER

$

$

Not available

10

Toro 94-8812

V BELT-TRACTION
(Superseded to 94-8812-SL)

$33.99

$

Usually ships in 3-6 days

0

11

Toro 62-0920

SHEAVE-HALF, TRACTION

$

$

Not available

12

ENGINE-TECUMSEH, HMSK80-155672V (only on: 38078)

Note: Not serviced separately

$

$

Not available

12

ENGINE-TECUMSEH, HMSK80-155672V (only on: 38078)

Note:

$

$

Not available

12

ENGINE-TECUMSEH, HMSK80-155645V (only on: 38053)

Note: Not serviced separately

$

$

Not available

12

ENGINE-TECUMSEH, HMSK80-155645V (only on: 38053)

Note:

$

$

Not available

12:3

Toro 99-9300

CORD-EXTENSION (only on: 38078)
(Superseded to 117-0020)

Note: Not illustrated

$23.99

$

Usually ships in 3-6 days

0

13

Toro 94-2763

GUARD-MUFFLER (only on: 38053)

$

$

Not available

14

Toro 3256-49

WASHER-FLAT (only on: 38053)

$0.99

$

In Stock, Qty 8

0

15

Toro 3253-17

WASHER-LOCK (only on: 38053)

$0.99

$

In Stock, Qty 6

0

16

Toro 93-8048

SCREW (only on: 38053)

$

$

Not available

20

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

22

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

23

Toro 95-6156-01

PLATE-BACK

$

$

Not available

27

Toro 94-8844-01

COVER-BOTTOM

$

$

Not available

28

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

29

Toro 94-8802

COVER-UPPER BELT

$64.99

$

Usually ships in 3-6 days

0

43

Toro 3256-41

WASHER

$1.99

$

In Stock, Qty 6

0

44

Toro 94-2782

CAP-WIRE, LITE

$3.49

$

Usually ships in 3-6 days

0

49

Toro 289-34

NIPPLE-PIPE

$40.99

$

Usually ships in 3-6 days

0

50

Toro 288-2

CAP-PIPE

$19.99

$

In Stock, only 1 left!

0
