38053 (824) - Toro 24" Power Throw Snow Thrower (SN: 200000001 - 200999999) (2000) LOWER TRACTION ASSEMBLY Parts Diagram

24" Power Throw Snow Thrower

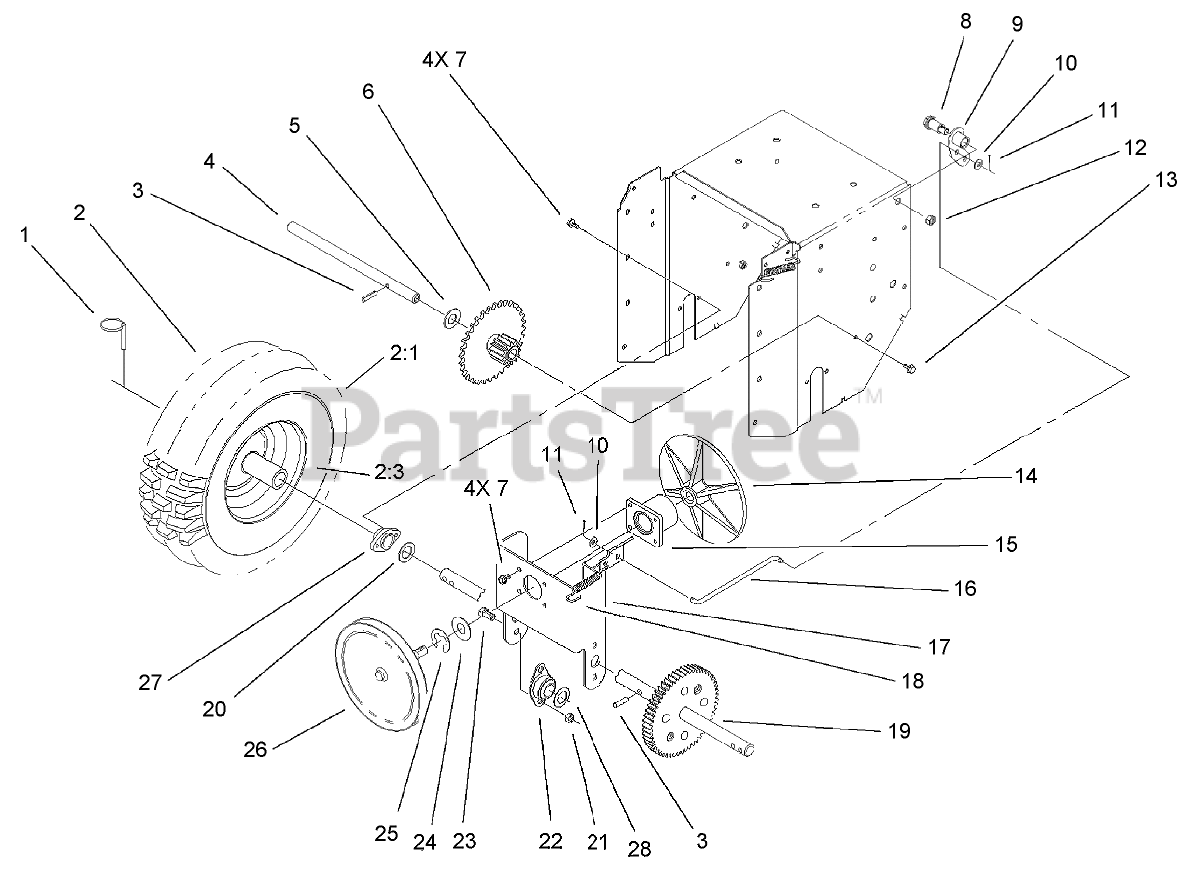

LOWER TRACTION ASSEMBLY Parts Diagram

  • Title
1

Toro 3290-243

PIN-LYNCH
(Superseded to 107-3039)

$10.99

$

In Stock, only 1 left!

0

2

Toro 67-9221

WHEEL AND TIRE ASM

$

$

Not available

2:1

$299.99

$

Usually ships in 3-6 days

0

2:3

Toro 241-131

RIM-WHEEL

$253.99

$

In Stock, only 2 left!

0

2:2

Toro 232-46

TUBE-INNER

Note: Not illustrated

$37.99

$

Usually ships in 3-6 days

0

3

Toro 32121-9

PIN-ROLL, SLOTTED

$3.49

$

In Stock, Qty 8

0

4

Toro 94-8814

SHAFT-INTERMEDIATE

$111.99

$

In Stock, only 2 left!

0

5

Toro 7-3590

WASHER

$2.99

$

In Stock, only 1 left!

0

6

Toro 94-8856

GEAR/BUSHING ASM

$181.99

$

Usually ships in 3-6 days

0

7

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

8

Toro 94-8859

BOLT-SHOULDER

$

$

Not available

9

Toro 94-8822

HUB-PIVOT

$

$

Not available

10

Toro 3256-67

WASHER-FLAT

$0.99

$

In Stock, Qty 9

0

11

Toro 3272-4

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

12

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

13

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

14

Toro 94-8857

DISC-FRICTION

$

$

Not available

15

Toro 94-8845

BEARING HUB ASM

$

$

Not available

16

Toro 94-8818

ROD-ENGAGE

$

$

Not available

17

Toro 94-8833-03

FRAME-FRICTION PLATE

$

$

Not available

18

Toro 94-8813

SPRING-ENGAGE

$

$

Not available

19

$

$

Not available

20

Toro 3-8664

WASHER-THRUST

$6.49

$

In Stock, only 1 left!

0

21

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

22

Toro 68-2970

BUSHING

$28.99

$

Usually ships in 3-6 days

0

23

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

24

Toro 252-80

WASHER-THRUST

$9.99

$

In Stock, Qty 20+

0

25

Toro 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

0

26

Toro 94-8823

PULLEY/SHAFT ASM

$

$

Not available

27

Toro 37-6850

BEARING-AXLE

$32.99

$

Usually ships in 3-6 days

0

28

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 20+

0
