38052 (521) - Toro 21" Snow Thrower (SN: 069000001 - 069999999) (1996) TRACTION ASSEMBLY Parts Diagram

21" Snow Thrower

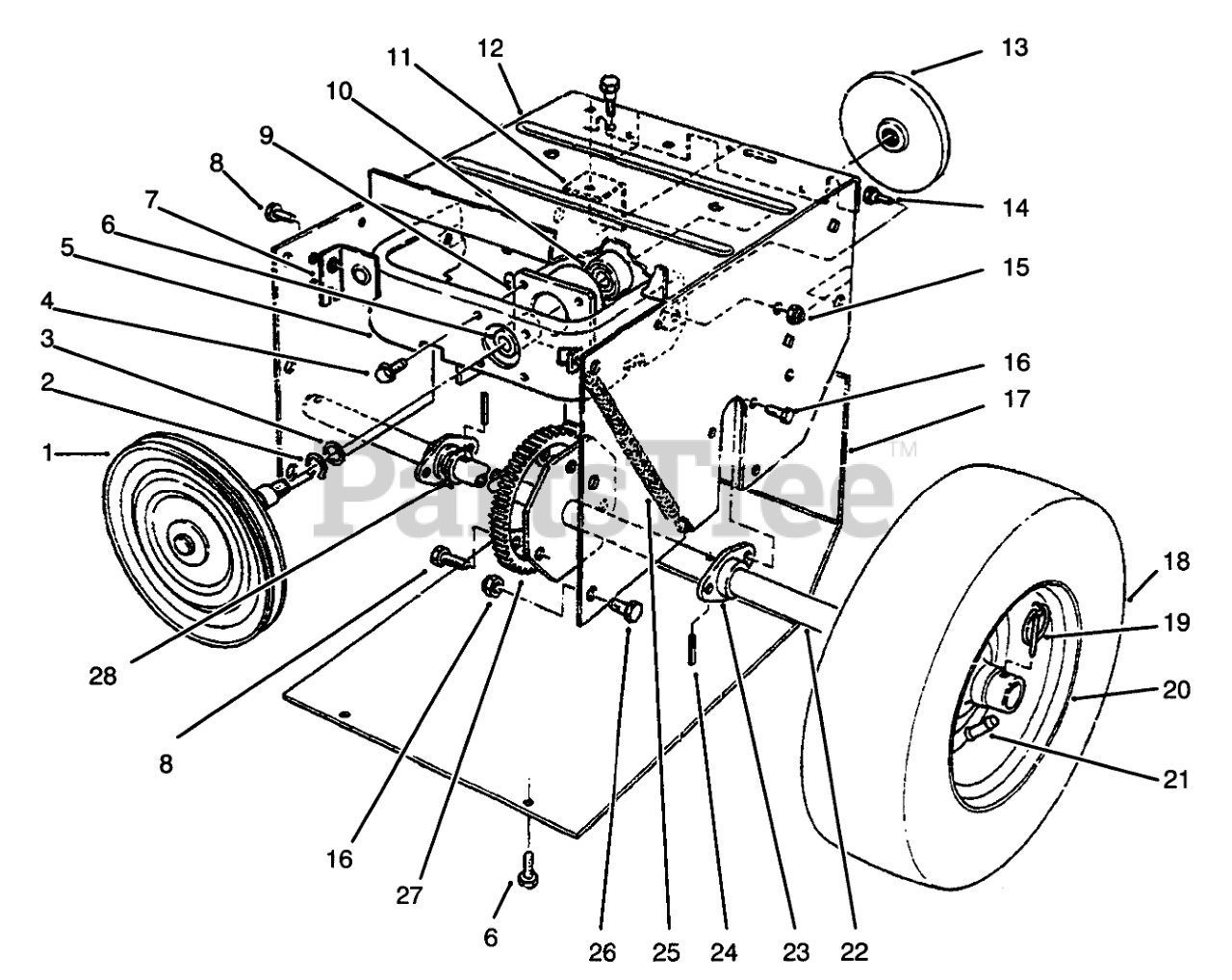

TRACTION ASSEMBLY Parts Diagram

  • Title

1

Toro 88-0850

PULLEY AND DRIVE ASM

$143.99

$

In Stock, Qty 5

0

2

Toro 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

0

3

Toro 252-80

WASHER-THRUST

$10.99

$

In Stock, Qty 8

0

4

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 13

0

5

Toro 88-0550

Frame-Friction Plate
(Superseded to 88-0550-03)

$

$

Not available

6

Toro 256-322

BUSHING

$17.99

$

In Stock, only 3 left!

0

7

Toro 66-6790

BRACKET-MOUNT, FRONT

$8.99

$

Usually ships in 3-6 days

0

8

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

9

Toro 88-0560

HUB-FRAME, TRACTION

$109.99

$

Usually ships in 3-6 days

0

10

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

11

Toro 37-9070

BRACKET-MOUNT, REAR

$16.99

$

Usually ships in 3-6 days

0

12

Toro 37-8900

Frame-Traction
(Superseded to 37-8900-01)

$240.99

$

Usually ships in 3-6 days

0

13

Toro 38-0800

PLATE-FRICTION

$111.99

$

In Stock, Qty 6

0

14

Toro 37-8770

BOLT-SHOULDER

$1.49

$

In Stock, only 2 left!

0

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

17

Toro 37-6830

Bottom Cover
(Superseded to 37-6830-01)

$108.99

$

Usually ships in 3-6 days

0

18

Toro 231-120

TIRE

$314.99

$

Usually ships in 3-6 days

0

19

Toro 3290-243

PIN-LYNCH
(Superseded to 107-3039)

$10.99

$

In Stock, only 2 left!

0

20

Toro 241-131

RIM-WHEEL

$266.99

$

In Stock, only 2 left!

0

21

Toro 232-46

TUBE-INNER

$37.99

$

Usually ships in 3-6 days

0

22

Toro 74-1350

SHAFT-AXLE

$

$

Not available

23

Toro 37-6850

BEARING-AXLE

$33.99

$

In Stock, only 1 left!

0

24

Toro 32121-31

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

25

Toro 37-8870

SPRING-PLATE, FRICTION

$48.99

$

Usually ships in 3-6 days

0

26

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

27

Toro 37-6520

GEAR-AXLE

$186.99

$

Usually ships in 3-6 days

0

28

Toro 3-8664

WASHER-THRUST

$6.49

$

In Stock, only 2 left!

0
