38052 (521) - Toro 21" Snow Thrower (SN: 069000001 - 069999999) (1996) STARTER MOTOR NO. 33290 Parts Diagram

21" Snow Thrower

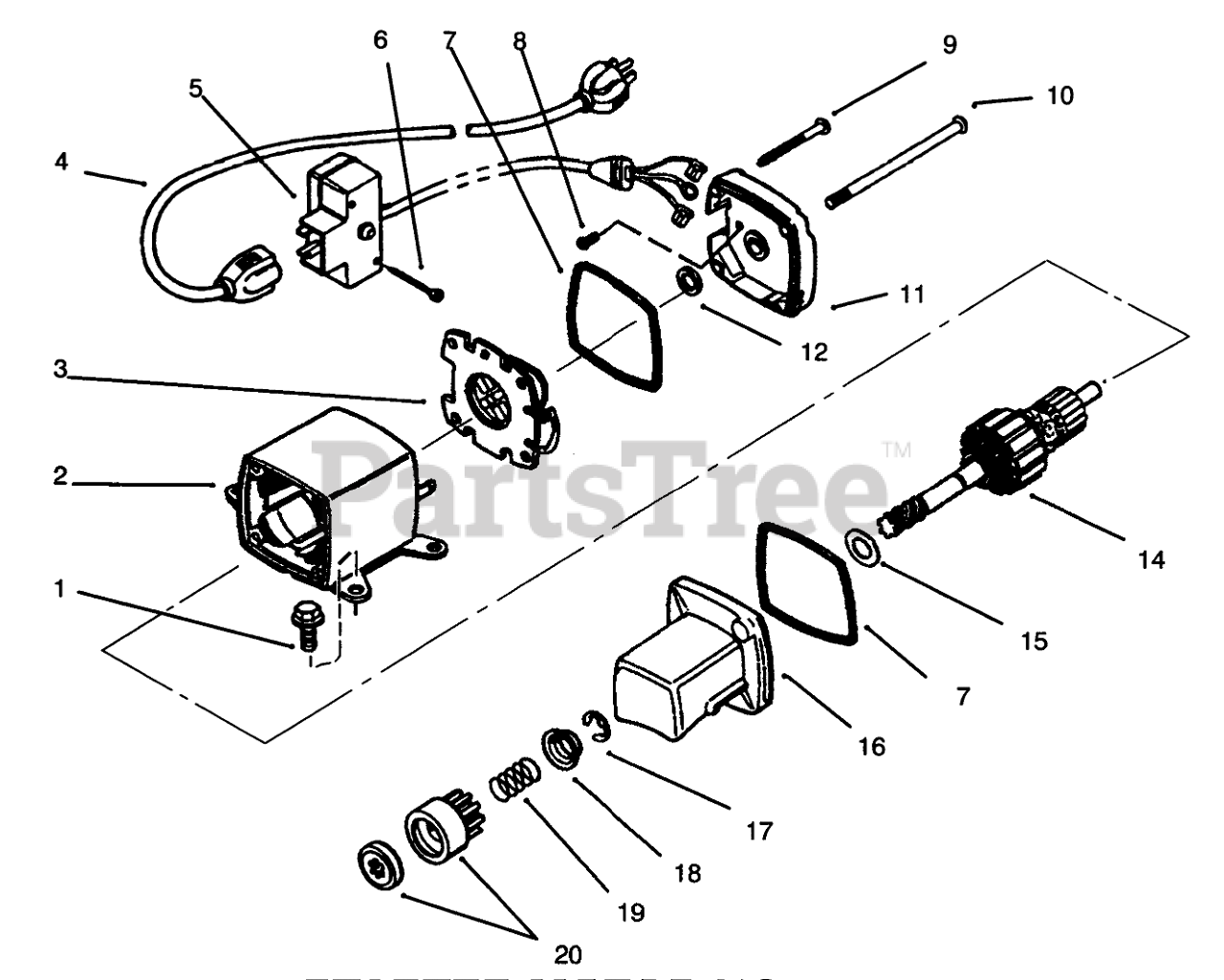

STARTER MOTOR NO. 33290 Parts Diagram

  • Title

1

Tecumseh 650759

Screw (T-30, 1/4-20 x 23/32)

$1.99

$

Usually ships in 3-12 days

0

2

Toro 34559A

Housing Asm

$

$

Currently unavailable

3

Tecumseh 35452A

Brush Card ASM

$58.99

$

In Stock, only 1 left!

0

4

Tecumseh 32450B

Cord-Extension (10-6)

$

$

Not available

5

Tecumseh 35454

Switch Box ASM

$

$

Not available

6

Tecumseh 650819

Screw

$1.99

$

Usually ships in 3-12 days

0

7

Tecumseh 35450

O-Ring

$3.99

$

Usually ships in 3-12 days

0

8

Tecumseh 33441

Screw-Ground

$

$

Not available

9

Tecumseh 35456

Screw-Ground

$1.99

$

In Stock, only 3 left!

0

10

Tecumseh 35462

Bolt-Case

$3.99

$

In Stock, only 2 left!

0

11

Tecumseh 35453

Cap-Commutator End Asm (Incl. Ref. #7)

$41.99

$

Usually ships in 3-12 days

0

12

Tecumseh 590500

Washer-Thrust

$1.99

$

In Stock, only 1 left!

0

14

Tecumseh 35912

Armature

$

$

Not available

15

Tecumseh 35911

Washer-Thrust

$5.99

$

In Stock, only 1 left!

0

16

Tecumseh 35461

Cap-Drive End (Incl. Ref. #7)

$59.99

$

Usually ships in 3-12 days

0

17

Tecumseh 31749

Retainer-Ring

$1.99

$

Usually ships in 3-12 days

0

18

Tecumseh 33522

Retainer-Spring

$5.99

$

Usually ships in 3-12 days

0

19

Tecumseh 33769

Spring-Anti Drift

$3.99

$

In Stock, only 2 left!

0

20

Tecumseh 33534

Nut & Gear
(Superseded to 33534A)

$

$

Currently unavailable

Tecumseh 33290D

Motor-Electric Starter
(Superseded to 33290E)

Note: Not illustrated

$278.99

$

In Stock, only 1 left!

0
