38052 (521) - Toro 21" Snow Thrower (SN: 059000001 - 059999999) (1995) ENGINE TECUMSEH MODEL HSSK50-67259N Parts Diagram

21" Snow Thrower

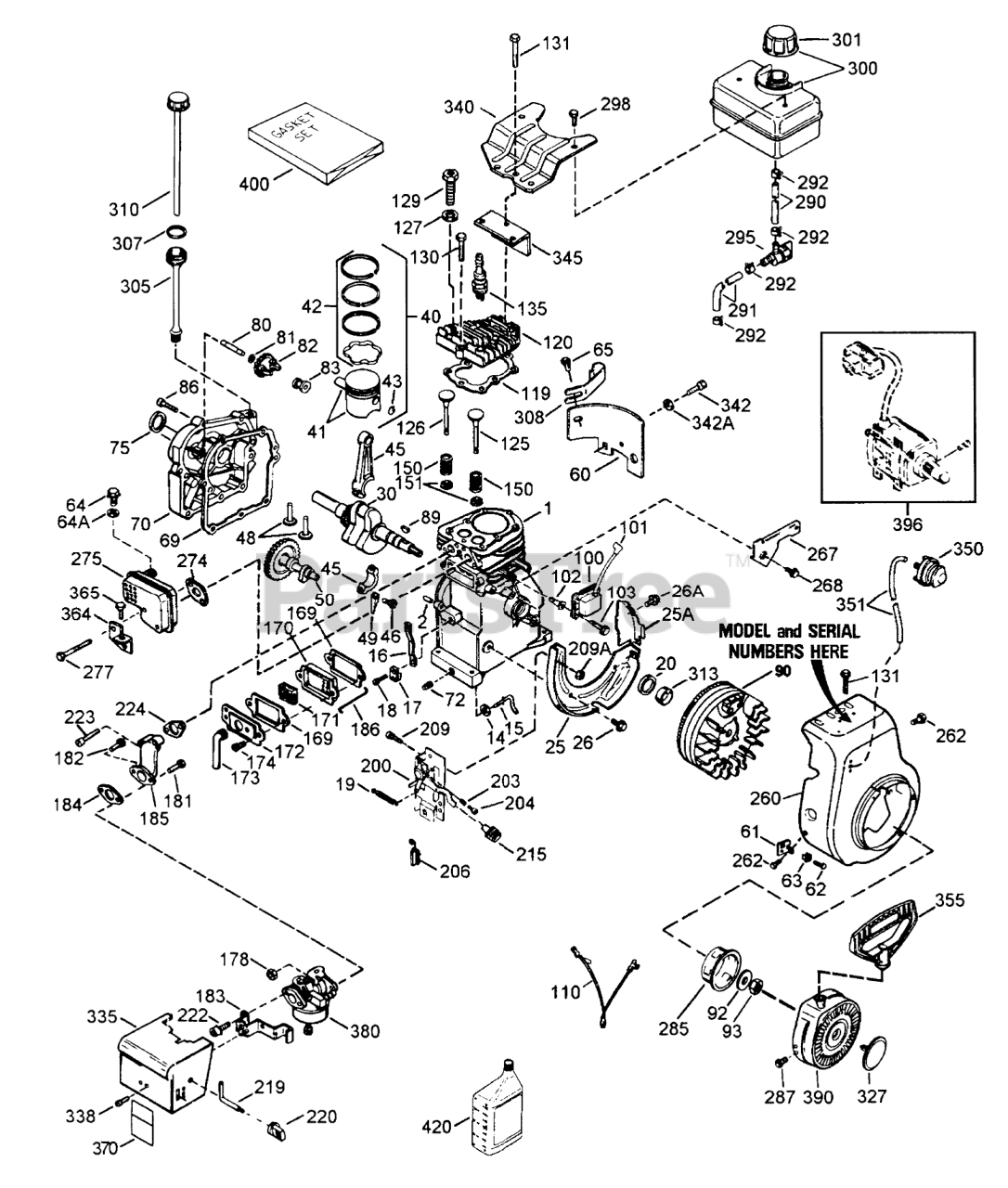

ENGINE TECUMSEH MODEL HSSK50-67259N Parts Diagram

  • Title

1

Tecumseh 36469

Cylinder Assembly (Incl. Ref. #2, 20 & 72)
(Superseded to 36469A)

$

$

Not available

2

Tecumseh 26727

Pin-Dowel

$1.99

$

In Stock, Qty 5

0

14

Tecumseh 28277

Washer-Flat

$1.99

$

In Stock, only 4 left!

0

15

Tecumseh 31334

Rod-Governor

$5.49

$

In Stock, only 1 left!

0

16

Tecumseh 31510

Lever-Governor
(Superseded to 37735)

$13.99

$

In Stock, only 1 left!

0

17

Tecumseh 31335

Clamp-Lever, Governor

$1.99

$

In Stock, only 3 left!

0

18

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 9

0

19

Tecumseh 31426

Spring-Extension

$3.99

$

In Stock, Qty 20+

0

20

Tecumseh 32600

Seal-Oil

$

$

Not available

25

Tecumseh 33342

Baffle-Blower Housing
(Superseded to 36552)

$9.49

$

Usually ships in 3-12 days

0

25A

Tecumseh 35883

Extension-Baffle

$1.99

$

In Stock, Qty 5

0

26

Tecumseh 650802

Screw (1/2-20x5/8)

$1.99

$

In Stock, Qty 5

0

26A

Tecumseh 650926

Screw (8-32 x 21/64)

$1.49

$

In Stock, only 3 left!

0

30

Tecumseh 34740

Crankshaft ASM

$137.99

$

Usually ships in 3-12 days

0

40

Tecumseh 36073

Set-Piston, Pin & Ring (Std)
(Superseded to 40004)

$74.99

$

In Stock, only 1 left!

0

Tecumseh 36074

Piston, Pin & Ring Set (.010" OS)
(Superseded to 40045)

$

$

Not available

Tecumseh 36075

Piston, Pin and Ring Set (.020 O S)

$

$

Not available

41

Tecumseh 36070

Piston & Pin Assy.Standard (Incl. Ref. #43)
(Superseded to 40004)

$74.99

$

In Stock, only 1 left!

0

Tecumseh 36071

Piston & Pin Assembly.010" oversize (Incl. Ref. #43)
(Superseded to 40045)

$

$

Not available

Tecumseh 36072

Piston & Pin Assembly.020" oversize (Incl. Ref. #43)
(Superseded to 36075)

$

$

Not available

42

Tecumseh 36076

Ring Set (STD)
(Superseded to 40006)

$42.99

$

In Stock, only 1 left!

0

Tecumseh 36077

51105/51105Z GIL RO
(Superseded to 40045)

$

$

Not available

Tecumseh 36078

Ring Set (.020 O S)

$

$

Not available

43

Tecumseh 20381

Ring-Retaining, Piston Pin

$1.99

$

In Stock, Qty 7

0

45

Tecumseh 32875

Connecting Rod Assembly (Incl. Ref. #46 & 49)
(Superseded to 32875A)

$47.99

$

In Stock, only 1 left!

0

46

Tecumseh 32610A

Bolt-Rod, Connecting

$1.99

$

In Stock, Qty 6

0

48

Tecumseh 27241

Lifter-Valve

$5.49

$

In Stock, only 2 left!

0

49

Tecumseh 32654

Dipper-Oil

$8.99

$

In Stock, only 4 left!

0

50

Tecumseh 33158

Camshaft
(Superseded to 37040)

$30.99

$

In Stock, only 1 left!

0

60

Tecumseh 29745

Extension-Blower

$3.99

$

Usually ships in 3-12 days

0

61

Tecumseh 34126

Bracket

$1.99

$

Usually ships in 3-12 days

0

62

Tecumseh 650760

Screw (8-32 x 3/8)

$1.99

$

In Stock, only 3 left!

0

63

Tecumseh 28545

Grommet

$1.99

$

In Stock, Qty 5

0

64

Tecumseh 30063

Screw

$1.99

$

In Stock, Qty 20+

0

64A

Tecumseh 8345

Washer

$1.99

$

In Stock, only 2 left!

0

65

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

69

Tecumseh 27677A

Gasket-Cover, Cylinder

Note: Indicated Parts included in Gasket Set Ref. Num 400

$7.49

$

In Stock, Qty 7

0

70

Tecumseh 34674C

Cover-Cylinder (Incl. Ref. #75 & 80)

$

$

Not available

72

Tecumseh 27642

Plug-Drain, Oil (SQH 1/4-18)

$1.99

$

In Stock, only 2 left!

0

75

Tecumseh 27897

Seal-Oil

$8.49

$

In Stock, Qty 17

0

80

Tecumseh 30574A

Shaft-Governor

$7.49

$

In Stock, only 4 left!

0

81

Tecumseh 30590A

Washer-Flat

$1.99

$

In Stock, Qty 7

0

82

Tecumseh 30591

Gear-Governor (Incl. Ref. #81)

$13.99

$

In Stock, only 1 left!

0

83

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, only 4 left!

0

86

Tecumseh 650488

Screw (1/4-20 x 1-1/4)

$1.99

$

Usually ships in 3-12 days

0

89

Tecumseh 610961

Key-Flywheel

$1.49

$

In Stock, Qty 20+

0

90

Tecumseh 611199

Flywheel

$

$

Not available

92

Tecumseh 650815

Washer-Belleville

$1.99

$

In Stock, Qty 10

0

93

Tecumseh 650863

Nut-Flywheel

$

$

Not available

100

Tecumseh 34443A

Solid State
(Superseded to 34443D)

$44.99

$

Usually ships in 3-12 days

0

101

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 3 left!

0

102

Tecumseh 650872

Stud
(Superseded to 651024)

$3.99

$

In Stock, only 2 left!

0

103

Tecumseh 650814

Screw
(Superseded to 651007)

$1.99

$

In Stock, only 4 left!

0

110

Tecumseh 35557

Wire-Ground

$3.99

$

Usually ships in 3-12 days

0

119

Tecumseh 36443

Gasket-Head, Cylinder

Note: Indicated Parts included in Gasket Set Ref. Num 400

$5.99

$

In Stock, Qty 9

0

120

Tecumseh 36441

Head-Cylinder(Incl. Ref. #131)
(Superseded to 37675)

$41.99

$

In Stock, only 1 left!

0

125

Tecumseh 29313C

Valve-Exhaust Standard (Incl. ref. #151)

$

$

Not available

Tecumseh 29315C

Valve-Exhaust 1/32"oversize (Incl. Ref. #151)

$

$

Not available

126

Tecumseh 32644A

Valve-Intake Standard(Incl. Ref. #151)

$9.99

$

In Stock, only 1 left!

0

Tecumseh 32645A

Valve-Intake 1/32"oversize (Incl. Ref. #151)

$61.99

$

In Stock, only 2 left!

0

127

Tecumseh 650691

Washer-Flat

$1.99

$

Usually ships in 3-12 days

0

129

Tecumseh 650818

Screw ( 5/16-18 x 1-1/2)

$3.99

$

In Stock, only 2 left!

0

130

Tecumseh 6021A

Screw (5/16-18x1-1/2)

$1.99

$

In Stock, only 3 left!

0

131

Tecumseh 650694A

Screw (5/16-18 X 2)

$3.49

$

In Stock, Qty 20+

0

135

Tecumseh 35395

Spark Plug-Resistor (R J19 L M)

$3.49

$

In Stock, Qty 16

0

150

Tecumseh 31672

Spring-Valve

$1.99

$

In Stock, Qty 14

0

151

Tecumseh 31673

Cap-Valve, Spring

$1.99

$

In Stock, Qty 5

0

169

Tecumseh 27234A

Gasket-Cover, Valve

Note: Indicated Parts included in Gasket Set Ref. Num 400

$5.99

$

In Stock, only 2 left!

0

170

Tecumseh 27666

Body-Breather

$14.99

$

In Stock, only 4 left!

0

171

Tecumseh 31410

Element-Breather

$1.99

$

In Stock, Qty 20+

0

172

Tecumseh 34146

Cover-Breather

$3.99

$

In Stock, only 1 left!

0

173

Tecumseh 35350

Tube-Breather

$6.49

$

Usually ships in 3-12 days

0

174

Tecumseh 30200

Screw (10-24 x 9/16)

$1.49

$

In Stock, Qty 10

0

178

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, only 1 left!

0

181

Tecumseh 650870

Screw (1/4-28 x 1-11/16)

$1.99

$

In Stock, Qty 5

0

182

Tecumseh 6201

Screw (1/4-28 x 7/8)

$

$

Not available

183

Tecumseh 34583

Bracket-Choke
(Superseded to 34583A)

$12.99

$

In Stock, Qty 6

0

184

Tecumseh 26756

Gasket

Note: Indicated Parts included in Gasket Set Ref. Num 400

$2.99

$

In Stock, Qty 9

0

185

Tecumseh 33691

Pipe-Intake

$25.99

$

Usually ships in 3-12 days

0

186

Tecumseh 32698

Link-Governor to Throttle

$1.99

$

In Stock, only 4 left!

0

200

Tecumseh 33858A

Control Assembly(Incl Ref.# 203,204,206,209,209A)
(Superseded to 36677)

$47.99

$

In Stock, only 1 left!

0

203

Tecumseh 31342

Spring-Compression

$5.99

$

In Stock, only 1 left!

0

204

Tecumseh 650549

Screw
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

206

Tecumseh 610973

Terminal

$3.99

$

In Stock, Qty 5

0

209

Tecumseh 650139

Screw

$1.99

$

In Stock, only 4 left!

0

209A

Tecumseh 30322

Nut-Lock

$1.99

$

Usually ships in 3-12 days

0

215

Tecumseh 35440

Knob-Control

$3.99

$

In Stock, only 1 left!

0

219

Tecumseh 34582

Rod-Choke

$5.49

$

Usually ships in 3-12 days

0

220

Tecumseh 35438

Knob-Control

$3.99

$

In Stock, only 2 left!

0

222

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

$4.49

$

In Stock, only 3 left!

0

223

Tecumseh 650664

Screw (1/4-20 x 1-19/32)

$1.99

$

In Stock, Qty 9

0

224

Tecumseh 33673A

Gasket-Intake

Note: Indicated Parts included in Gasket Set Ref. Num 400

$5.99

$

In Stock, only 2 left!

0

260

Tecumseh 35656A

Housing-Blower

$34.99

$

Usually ships in 3-12 days

0

262

Tecumseh 29212

Screw
(Superseded to 29716)

$1.49

$

In Stock, Qty 6

0

267

Tecumseh 34212

Bracket-Hold Down

$1.99

$

In Stock, Qty 5

0

268

Tecumseh 30200

Screw (10-24 x 9/16)

$1.49

$

In Stock, Qty 10

0

272

Tecumseh 650735

Screw (10-24 x 3/8)

$1.99

$

In Stock, only 2 left!

0

274

Tecumseh 33670A

Gasket-Exhaust
(Superseded to 35865)

Note: Indicated Parts included in Gasket Set Ref. Num 400

$2.49

$

In Stock, only 2 left!

0

275

Tecumseh 35771

Muffler (Incl. Ref.# 274)
(Superseded to 35771A)

$32.99

$

In Stock, only 1 left!

0

277

Tecumseh 650327

Screw-Fil. Hd.
(Superseded to 650327A)

$6.99

$

In Stock, Qty 13

0

285

Tecumseh 36476

Cup-Starter

$32.99

$

Usually ships in 3-12 days

0

287

Tecumseh 650926

Screw (8-32 x 21/64)

$1.49

$

In Stock, only 3 left!

0

290

Tecumseh 29774

Line-Fuel (8.62)

$34.99

$

In Stock, Qty 6

0

291

Tecumseh 30705

Line-Fuel

$16.99

$

In Stock, only 2 left!

0

292

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 20+

0

295

Tecumseh 35857

Valve-Shut Off, Fuel

$13.99

$

Usually ships in 3-12 days

0

298

Tecumseh 650665

Screw (1/4-15x7/8)

$1.99

$

In Stock, only 3 left!

0

300

Tecumseh 35584

Tank Assembly-Fuel(Incl. Ref. #292 & 301)

$45.99

$

In Stock, only 4 left!

0

301

Tecumseh 35355

Cap-Fuel
(Superseded to 37845)

$8.99

$

In Stock, Qty 10

0

305

Tecumseh 35554

Tube-Fill, Oil

$19.99

$

In Stock, only 1 left!

0

307

Tecumseh 35499

O-Ring

$1.49

$

In Stock, only 3 left!

0

308

Tecumseh 35539

Clip-Tube, Fill

$1.99

$

Usually ships in 3-12 days

0

310

Tecumseh 35556

Dipstick

$7.49

$

Usually ships in 3-12 days

0

313

Tecumseh 34080

Spacer

$1.99

$

In Stock, only 2 left!

0

327

Tecumseh 35392

Plug Starter

$1.99

$

Usually ships in 3-12 days

0

335

Tecumseh 35072

Cover-Carburetor
(Superseded to 35072B)

$

$

Not available

338

Tecumseh 650257

Screw (8-32 X 5/16)

$1.49

$

In Stock, Qty 17

0

340

Tecumseh 36247

Plate-Fuel Tank

$11.99

$

Usually ships in 3-12 days

0

342

Tecumseh 30063

Screw

$1.99

$

In Stock, Qty 20+

0

342A

Tecumseh 650675

Washer

$1.99

$

Usually ships in 3-12 days

0

345

Tecumseh 33344

Baffle-Heat

$5.49

$

In Stock, only 1 left!

0

350

Tecumseh 570682

Primer-Asm
(Superseded to 570682A)

$10.99

$

In Stock, Qty 6

0

351

Tecumseh 32180C

Line-Primer

$6.99

$

In Stock, only 4 left!

0

355

Tecumseh 590574

Handle-Starter, Mitten Grip

$5.49

$

In Stock, only 1 left!

0

364

Tecumseh 33333

Bracket-Cover, Carburetor

$3.99

$

Usually ships in 3-12 days

0

365

Tecumseh 650735

Screw (10-24 x 3/8)

$1.99

$

In Stock, only 2 left!

0

370

Tecumseh 36261

Decal-Lubrication

$

$

Not available

380

Tecumseh 632107A

Carburetor (Incl Ref. #184)
(Superseded to 640084B)

$109.99

$

Usually ships in 3-12 days

0

390

Tecumseh 590646

Rewind Starter
(Superseded to 590787)

$53.99

$

Usually ships in 3-12 days

0

396

Tecumseh 33290D

Motor-Electric Starter
(Superseded to 33290E)

$278.99

$

In Stock, only 1 left!

0

400

Tecumseh 36444

Gasket Set

$13.99

$

In Stock, only 3 left!

0

420

Tecumseh 730226

Oil-Engine (SAE 5W30)
(Superseded to 730226B)

$13.99

$

In Stock, Qty 10

0
